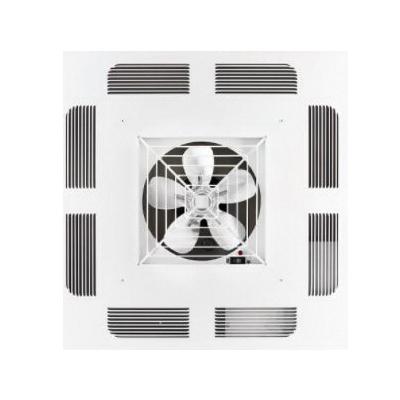

STELPRO DRAGON™ ADR Series ADRR ADRR0583CTW Fan Heater, 208 V, 5000 W, 17064 Btu/hr BTU, 3 ph-Phase, Steel, White

This product evens out a room's temperature and saves energy by recirculating warm air from the ceiling and mixing it with the cooler air in the room. Available in various wattages and voltages, the DRAGON™ can be surface-mounted or recessed in residential or commercial buildings with suspended ceilings that are at least 8 ft.

STELPRO DRAGON™ Fan Heater, Series: ADR Series, Model: ADRR, 10 W/sq-ft, 208 V, 5000 W, 3 ph, 17064 Btu/hr, 450 cfm CFM Rating, Recessed, Surface Mount, Steel, Epoxy Polyester Powder-Coated, White, 23-5/8 in L x 23-5/8 in W x 4-15/16 in H, Domestic

• Fast temperature rise through heat recovery
• Wide range of powers
• Superior performance nichrome alloy elements
• Surface-mounted or recessed installation
• 20 ga steel cabinet and 14 ga steel grille
• Quiet helicoidal fan
• Thermal protection with automatic reset
• Totally enclosed, permanently lubricated motor
• Pilot light indicates when power is on
• Nichrome element produces instant heat
• Wall thermostat (not included) - the use of an electronic thermostat is strongly recommended
• Fan only mode for continuous air circulation, controlled by built-in selection switch
• Heating mode, confirmed by pilot light when heating is on
• Ceiling recessed in a T-bar
• Install at a minimum distance from adjacent or surrounding walls 12 in
• Built-in thermostat

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/STELPRO_ADRI0221A_Instruction_Installation_Manual.pdf
• Line Drawing https://assets.unilogcorp.com/267/ITEM/DOC/STELPRO_ADRI0221A_Line_Drawing.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/STELPRO_ADRI0221A_Specification_Sheet.pdf
