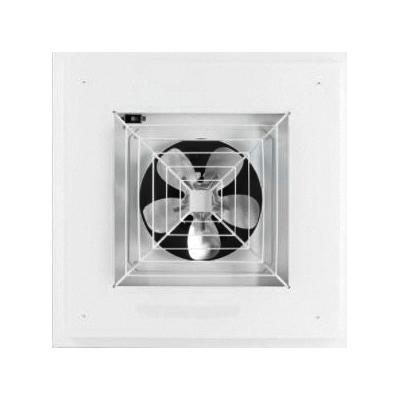

STELPRO DRAGON™ ADR Series ADRII ADRII0253CTW Fan Heater, 480 V, 2000 W, 6825 Btu/hr BTU, 3 ph-Phase, Steel, White
- Manufacturer: Stelpro, Inc
- Brand Name: STELPRO
- Part#: SPODRII0253CTW
- MPN: ADRII0253CTW
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
This product evens out a room's temperature and saves energy by recirculating warm air from the ceiling and mixing it with the cooler air in the room. Available in various wattages and voltages, the DRAGON™ can be surface-mounted or recessed in residential or commercial buildings with suspended ceilings that are at least 8 ft.
STELPRO DRAGON™ Fan Heater, Series: ADR Series, Model: ADRII, 10 W/sq-ft, 480 V, 2000 W, 3 ph, 6825 Btu/hr, 450 cfm CFM Rating, Recessed, Surface Mount, Steel, Epoxy Polyester Powder-Coated, White, 22-3/8 in L x 22-3/8 in W x 6-9/16 in H, Domestic
| BTU Rating | : | 6825 Btu/hr |
| CFM Rating | : | 450 cfm |
| Capacity | : | 10 W/sq-ft |
| Color | : | White |
| Dimensions | : | 22-3/8 in L x 22-3/8 in W x 6-9/16 in H |
| Domestic/Import | : | Domestic |
| Finish | : | Epoxy Polyester Powder-Coated |
| Material | : | Steel |
| Model | : | ADRII |
| Mounting Type | : | Recessed, Surface |
| Phase | : | 3 ph |
| Power Rating | : | 2000 W |
| Series | : | ADR Series |
| Voltage Rating | : | 480 V |
- Fast temperature rise through heat recovery
- Wide range of powers
- Superior performance nichrome alloy elements
- Surface-mounted or recessed installation
- 20 ga steel cabinet and 14 ga steel grille
- Quiet helicoidal fan
- Thermal protection with automatic reset
- Totally enclosed, permanently lubricated motor
- Pilot light indicates when power is on
- Nichrome element produces instant heat
- Wall thermostat (not included) - the use of an electronic thermostat is strongly recommended
- Fan only mode for continuous air circulation, controlled by built-in selection switch
- Heating mode, confirmed by pilot light when heating is on
- Ceiling surface-mounted with bracket to support unit during wiring
- Install at a minimum distance from adjacent or surrounding walls 24 in
- Built-in thermostat
