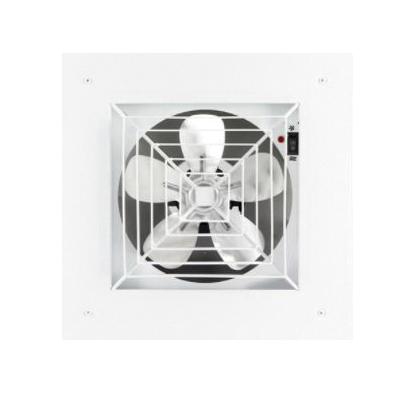

STELPRO DRAGON™ ADR Series ADRI ADRI0321C24A Fan Heater, 240 V, 3000 W, 10238 Btu/hr BTU, 1 ph-Phase, Steel, Almond

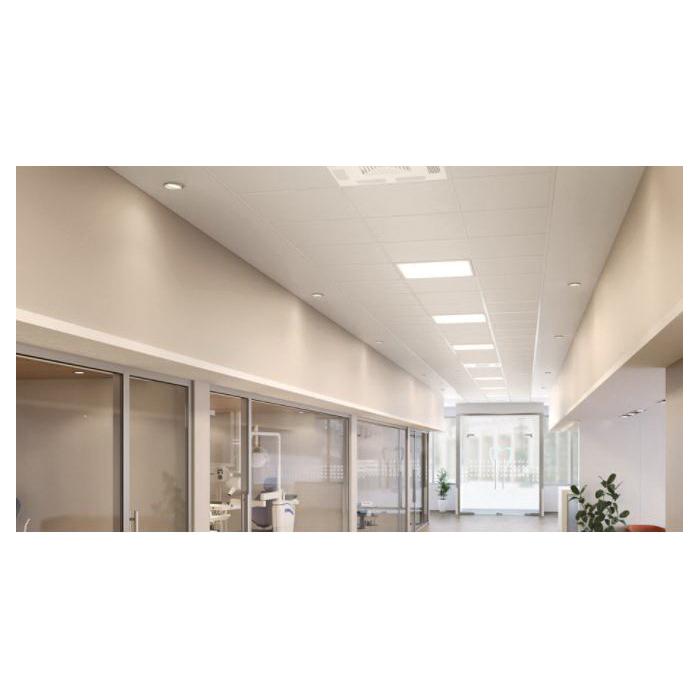

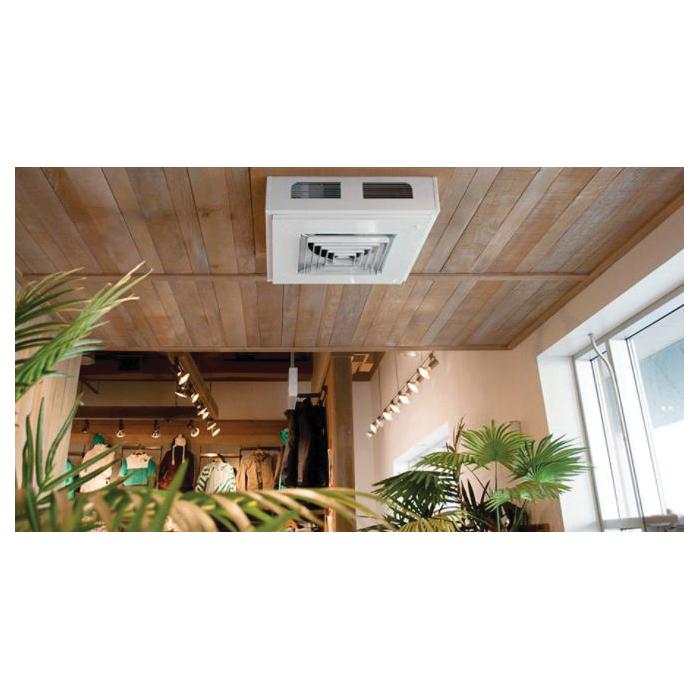

This product evens out a room's temperature and saves energy by recirculating warm air from the ceiling and mixing it with the cooler air in the room. Available in various wattages and voltages, the DRAGON™ can be surface-mounted or recessed in residential or commercial buildings with suspended ceilings that are at least 8 ft.

STELPRO DRAGON™ Fan Heater, Series: ADR Series, Model: ADRI, 10 W/sq-ft, 240 V, 3000 W, 1 ph, 10238 Btu/hr, 250 cfm CFM Rating, Recessed, Surface Mount, Steel, Epoxy Polyester Powder-Coated, Almond, 16 in L x 16 in W x 5-1/8 in H, Domestic

• Fast temperature rise through heat recovery
• Wide range of powers
• Superior performance nichrome alloy elements
• Surface-mounted or recessed installation
• 20 ga steel cabinet and 14 ga steel grille
• Quiet helicoidal fan
• Thermal protection with automatic reset
• Totally enclosed, permanently lubricated motor
• Pilot light indicates when power is on
• Nichrome element produces instant heat
• Wall thermostat (not included) - the use of an electronic thermostat is strongly recommended
• Fan only mode for continuous air circulation, controlled by built-in selection switch
• Heating mode, confirmed by pilot light when heating is on
• Ceiling surface-mounted with bracket to support unit during wiring
• Install at a minimum distance from adjacent or surrounding walls 12 in
• 24 V control unit

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/STELPRO_ADRI0221A_Instruction_Installation_Manual.pdf
• Line Drawing https://assets.unilogcorp.com/267/ITEM/DOC/STELPRO_ADRI0221A_Line_Drawing.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/STELPRO_ADRI0221A_Specification_Sheet.pdf
