Ouellet OPX Series OPX2A2508 Explosion-Proof Convector Heater, 208 V, 2500 W, 1 ph-Phase, Steel, Beige, Wall Mounting
- Manufacturer: Ouellet
- Brand Name: Ouellet
- Part#: OULOPX2A2508
- MPN: OPX2A2508
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

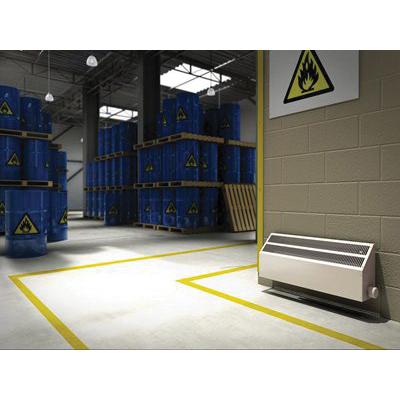

The OPX explosion-proof convector areas or rooms where potentially explosive substances may be stored. Units are mounted vertically with brackets that are included. The explosion-proof heater comes with a protective grill to prevent accidental contact with the heater.
Ouellet Explosion-Proof Convector Heater, Series: OPX Series, 208 V, 2500 W, 1 ph, Wall Mount, Steel, Galvanized, Beige, 536 deg F, 16 in H x 26 in L x 8 in D
| Color | : | Beige |
| Dimensions | : | 16 in H x 26 in L x 8 in D |
| Finish | : | Galvanized |
| Material | : | Steel |
| Mounting Type | : | Wall |
| Phase | : | 1 ph |
| Power Rating | : | 2500 W |
| Series | : | OPX Series |
| Temperature Rating | : | 536 deg F |
| Voltage Rating | : | 208 V |
- Galvanized steel cabinet wet area approved with a baked on powder coating
- Elements with a chromate coating
- A gasketed terminal box cover (O-ring)
- Low temperature convection
- Linear high limit temperature control with automatic reset
- Minimum mounting height of 6 in (152 mm) above the floor
Instruction/Installation Manual
