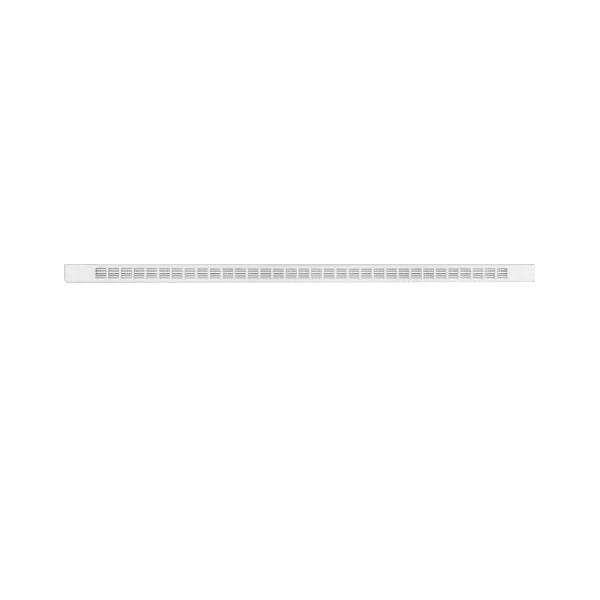

STELPRO SPDH Series SPDH27133A Mini Patio Door Heater, 347 V, 1350 W, 4607 Btu/hr, Steel, Almond
- Manufacturer: Stelpro, Inc
- Brand Name: STELPRO
- Part#: SPOSPDH27133A
- MPN: SPDH27133A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

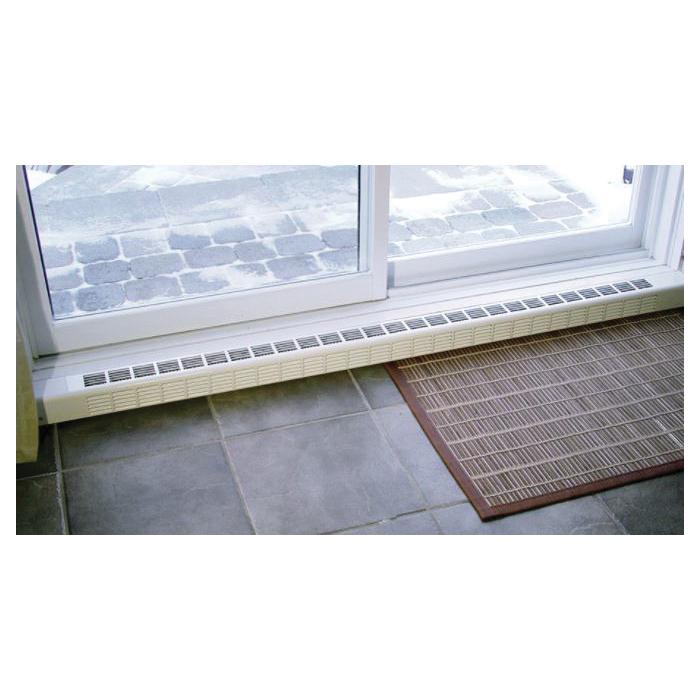

The SPDH mini baseboards series has made a name for itself in the heating sector. It's designed to be installed under a patio door and is trample-resistant. Despite its small size, its rounded front rim makes it surprisingly sturdy.
STELPRO Mini Patio Door Heater, Series: SPDH Series, 10 W/sq-ft, 347 V, 1350 W, 4607 Btu/hr, 150 W/linear ft, Stainless Steel Heating Element, Surface Mount, Steel, Epoxy Polyester Powder-Coated, Almond, 3 in H x 106-5/16 in L x 3-1/16 in D, Domestic
| BTU Rating | : | 4607 Btu/hr |
| Capacity | : | 10 W/sq-ft |
| Color | : | Almond |
| Dimensions | : | 3 in H x 106-5/16 in L x 3-1/16 in D |
| Domestic/Import | : | Domestic |
| Finish | : | Epoxy Polyester Powder-Coated |
| Heating Element | : | Stainless Steel |
| Material | : | Steel |
| Mounting Type | : | Surface |
| Power Rating | : | 1350 W |
| Series | : | SPDH Series |
| Voltage Rating | : | 347 V |
| Watt Density | : | 150 W/linear ft |
- Compact and sturdy perfect below patio doors and large windows
- Low density
- 3 x 3 in compact profile
- Solid, 18 ga steel cabinet and front that may be used as a step
- Thermal protection with automatic reset
- Full length wireway
- Pencil-proof openings of less than 1/4 in prevent foreign objects from entering the unit
- Wall thermostat, the use of an electronic thermostat is strongly recommended
- Wiring compartments at both ends of unit
