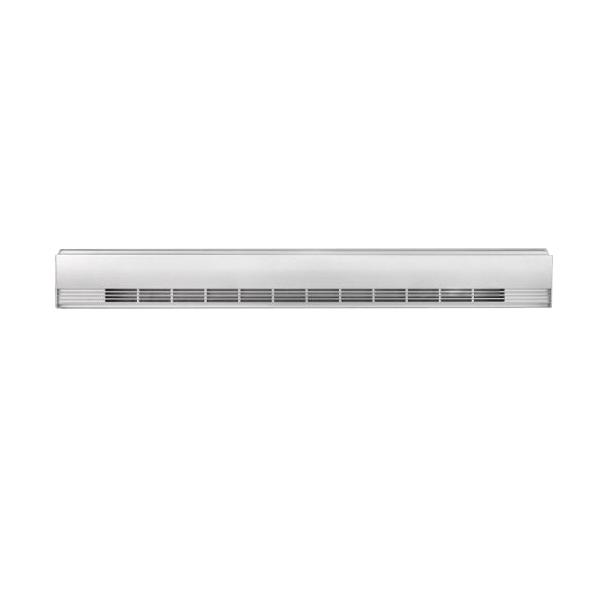

STELPRO DBI Series DBI21103A Draft Barrier Electric Baseboard Heater, 347 V, 1050 W, 3583 Btu/hr, Steel, Almond
- Manufacturer: Stelpro, Inc
- Brand Name: STELPRO
- Part#: SPODBI21103A
- MPN: DBI21103A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

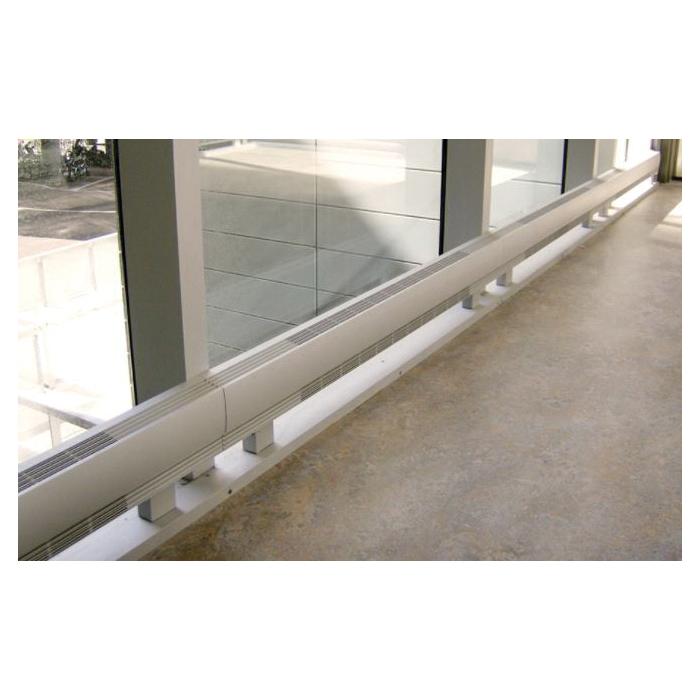

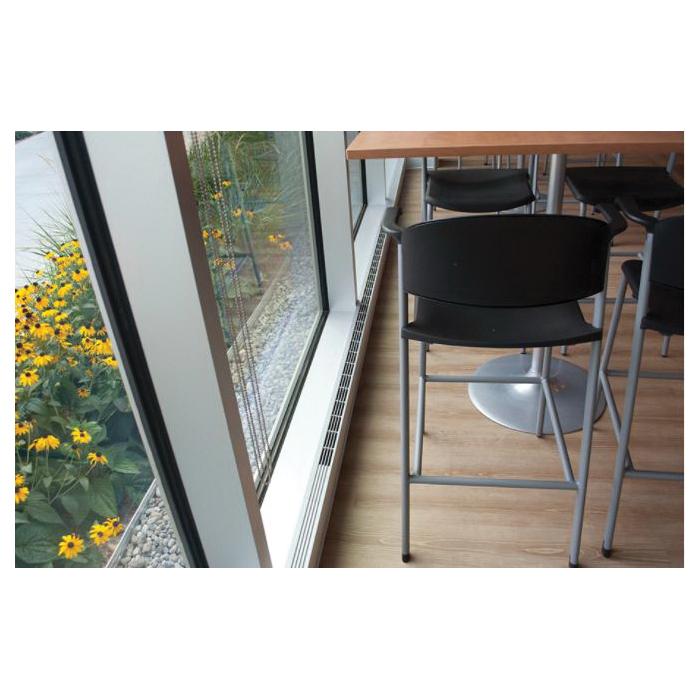

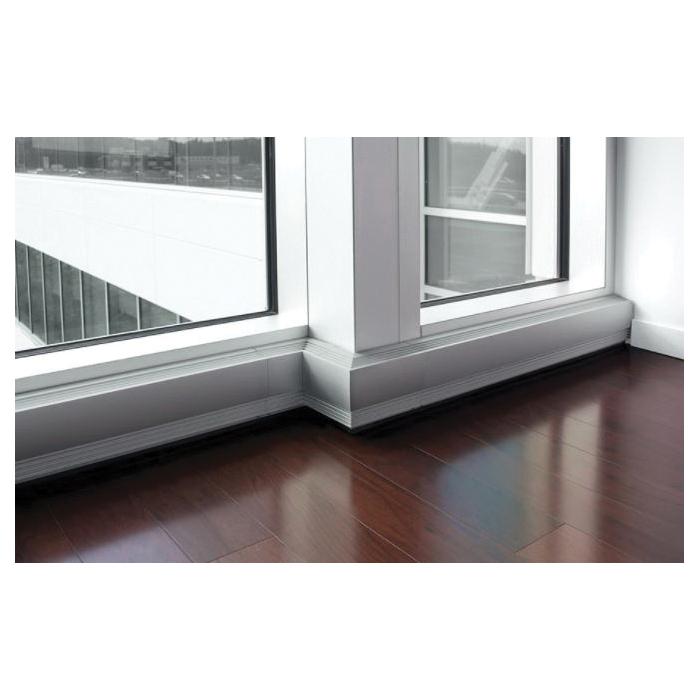

The DBI electric baseboards is versatile and can be installed against the wall, flush with a floor or slightly elevated using suitable anchors. This baseboards is a mark of distinction that will enhance the decor of offices, conference rooms, lobbies, commercial and educational institutions or hospitals.
STELPRO Draft Barrier Electric Baseboard Heater, Series: DBI Series, 10 W/sq-ft, 347 V, 1050 W, 3583 Btu/hr, 150 W/linear ft, Stainless Steel Heating Element, Surface Mount, Steel, Epoxy Polyester Powder-Coated, Almond, 6 in H x 82-11/16 in L x 2-1/2 in D, Domestic
| BTU Rating | : | 3583 Btu/hr |
| Capacity | : | 10 W/sq-ft |
| Color | : | Almond |
| Dimensions | : | 6 in H x 82-11/16 in L x 2-1/2 in D |
| Domestic/Import | : | Domestic |
| Finish | : | Epoxy Polyester Powder-Coated |
| Heating Element | : | Stainless Steel |
| Material | : | Steel |
| Mounting Type | : | Surface |
| Power Rating | : | 1050 W |
| Series | : | DBI Series |
| Voltage Rating | : | 347 V |
| Watt Density | : | 150 W/linear ft |
- Strong extruded aluminum front and top, impact and rust-resistant
- 18 ga steel cabinet
- Extruded aluminum front panel with a thickness equivalent to 11 ga
- Front air intake and top air discharge
- Thermal protection with automatic reset
- Full length wireway
- Pencil-proof openings of less than 1/4 in prevent foreign objects from entering the unit
- Single tubular, stainless steel sheathed element with boxed aluminum fins for improved heat dissipation, the element is securely fastened at its center, floating in nylon sleeves at each end, eliminating expansion and contraction noises
- Wall thermostat, the use of an electronic thermostat is strongly recommended
- Wiring compartments at both ends of unit
Instruction/Installation Manual
