Rheem® RPCY2090DAZ USRRPCY2090DAZ
  1. pin-int

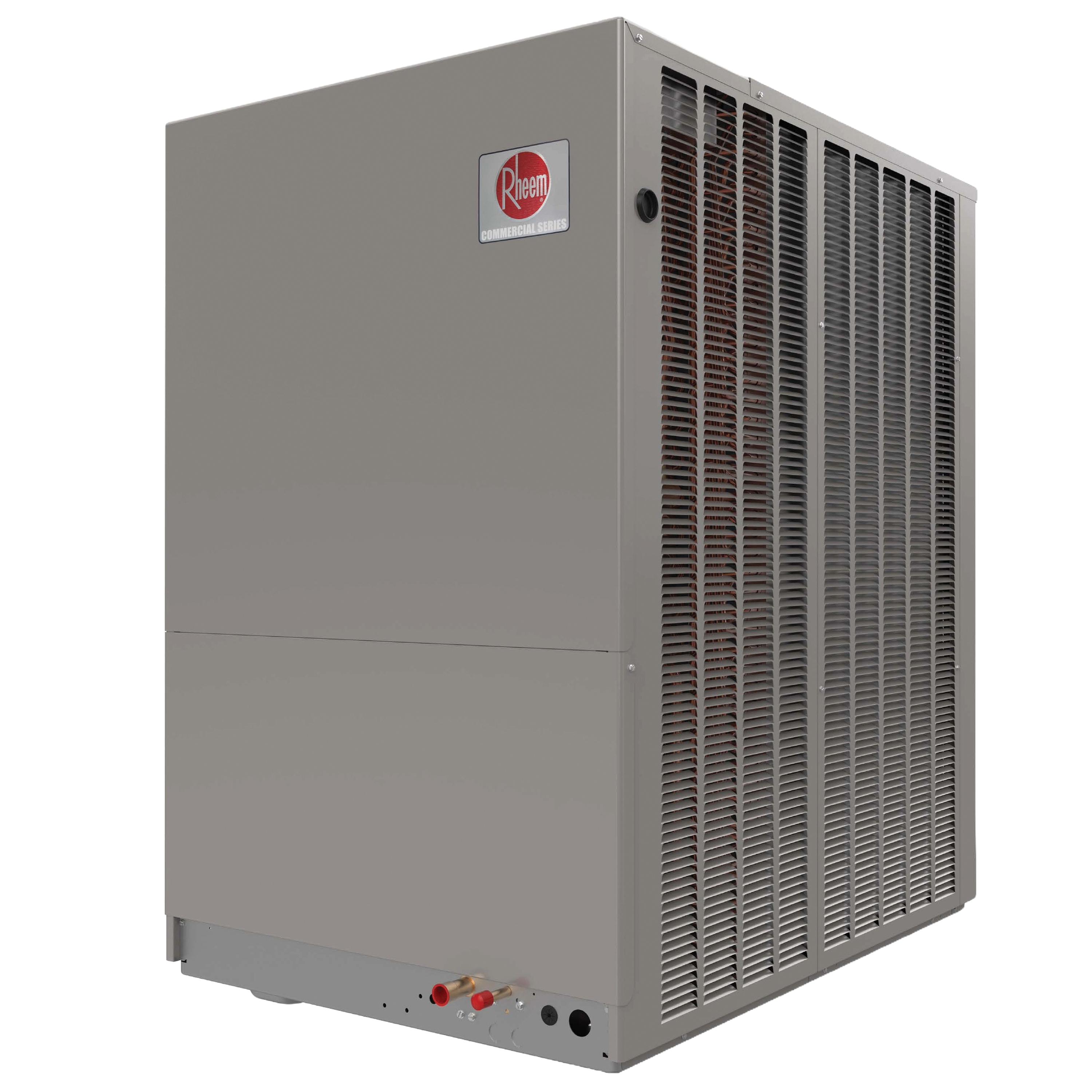

Rheem® Commercial Split Classic® Series RPCY2090DAZ Heat Pump, 460 V, 17 A, 90000 Btu/hr BTU, 3 ph

Rheem® Commercial Split Classic® Series RPCY2090DAZ Heat Pump, 460 V, 17 A, 90000 Btu/hr BTU, 3 ph

  • Manufacturer: Rheem Manufacturing
  • Brand Name: Rheem®
  • Part#: USRRPCY2090DAZ
  • MPN: RPCY2090DAZ
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The RPCY Series commercial split models are engineered for reliable operation and consistent heating and cooling performance. Designed for easy maintenance and serviceability, all access panels can be opened or removed without affecting the structural strength of the unit, helping facilitate easier routine maintenance such as coil cleaning or component inspection. Stamped louvered panels offer 100% protection for the condenser coil, adding to unit performance and reliability.

Rheem® Heat Pump, Series: Commercial Split Classic® Series, Model: RPCY, 460 V, 17 A, 60 Hz, 3 ph, 1150 rpm Rotational Speed, 90000 Btu/hr, 2875 cfm CFM Rating, 11 EER, 14.1 IEER Rating, Scroll Compressor, R-454B, 25 A Fuse, 32.8 sq-ft Coil Rating, 7.5 ton Tonnage, 86 dBA, 48-13/16 in H x 42-11/16 in W x 31-1/8 in D, Additional Information: 11 A Rated Load, 95.3 A Locked Rotor, 3 A Full Load, For Use With Matching RHCYP Models

Additional Information      :      11 A Rated Load, 95.3 A Locked Rotor, 3 A Full Load, For Use With Matching RHCYP Models
Amperage Rating      :      17 A
BTU Rating      :      90000 Btu/hr
CFM Rating      :      2875 cfm
Coil Rating      :      32.8 sq-ft
Compressor Type      :      Scroll
Dimensions      :      48-13/16 in H x 42-11/16 in W x 31-1/8 in D
EER Rating      :      11
Frequency Rating      :      60 Hz
Fuse Rating      :      25 A
IEER Rating      :      14.1
Model      :      RPCY
Phase      :      3 ph
Refrigerant Type      :      R-454B
Rotational Speed      :      1150 rpm
Series      :      Commercial Split Classic® Series
Sound Level      :      86 dBA
Tonnage      :      7.5 ton
Voltage Rating      :      460 V
  • Available power options: 208-230V / 3 phase / 60 Hz = 460V / 3 phase / 60 Hz = 575V / 3 phase / 60 Hz
  • Limited Warranty (Commercial Applications): Parts - 1 Year = Compressor - 5 Years. Additional extended warranty packages available through ProtectionPlus®.
