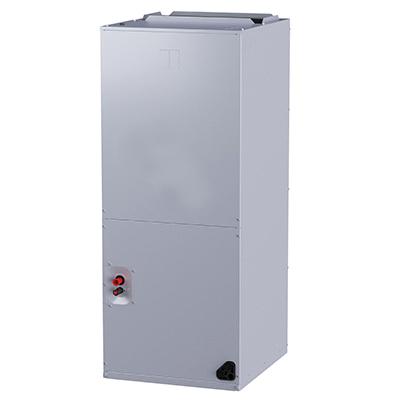

Comfort-Aire® SE Series AMC36S1A Multi-Position Air Handler, 208/230 V, 3.8 A, 1/2 hp, 60 Hz, 1 ph
- Manufacturer: Mars
- Brand Name: Comfort-Aire®
- Part#: AITAMC36S1A
- MPN: AMC36S1A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Comfort-Aire® Multi-Position Air Handler, Series: SE, 36000 Btu/hr Cooling Capacity, 208/230 V, 3.8 A, 1/2 hp, 60 Hz, 1 ph, 1050 rpm Rotational Speed, Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow, FNPT Connection, R-410A Refrigerant, 15 A Fuse Rating, 4-Row, 17 FPI, 4.02 sq-ft Face Area Coil, 3/4 in Connection, 3/8 in Liquid Line, 3/4 in Suction Line, 5 Speed, Constant Torque ECM Motor, Finish: Galvanized/Painted, 46.5 in H x 19.6 in W x 21.6 in D, Additional Information: Fin and Tube Coil Type
| Additional Information | : | Fin and Tube Coil Type |
| Amperage Rating | : | 3.8 A |
| Coil Rating | : | 4-Row, 17 FPI, 4.02 sq-ft Face Area |
| Configuration | : | Downflow, Horizontal Left, Horizontal Right, Upflow |
| Connection Size | : | 3/4 in |
| Connection Type | : | FNPT |
| Cooling Capacity | : | 36000 Btu/hr |
| Dimensions | : | 46.5 in H x 19.6 in W x 21.6 in D |
| Finish | : | Galvanized/Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1/2 hp |
| Liquid Line Size | : | 3/8 in |
| Motor Type | : | Constant Torque ECM |
| Number of Speeds | : | 5 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1050 rpm |
| Series | : | SE Series |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 208/230 V |
- Factory-sealed cabinet certified to achieve 2% or less leakage rate
- Easy to service with dual cabinet design
- Blower and coil slide out for ease of maintenance
- Antimicrobial polymer drain pan
- All aluminum tube and fin
- Optional field installed heat kit available
