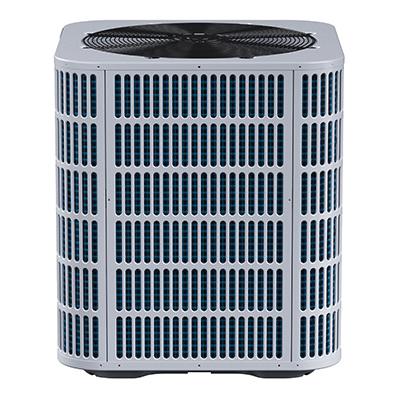

Comfort-Aire® SE Series RSA1560S1A Split System Air Conditioner, 208/230 V
- Manufacturer: Mars
- Brand Name: Comfort-Aire®
- Part#: AITRSA1560S1A
- MPN: RSA1560S1A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Comfort-Aire® Split System Air Conditioner, SE Series, 5 ton Nominal Capacity, 60000 Btu/hr Cooling Capacity, 208/230 V, 35.1 A, 1/3 hp, 1050 rpm Rotational Speed, 60 Hz, 1 ph Phase, Scroll Compressor, 3800 cfm, 15 SEER, 1 Stages, R-410A Refrigerant, 3/8 in Liquid Line, 1-1/8 in Suction Line, 77 dB Sound Level, External Drive, 1-Row Coil, Sweat Connection, 60 A Fuse Rating, 18.4 sq-ft Face Area, ECM Motor, 55 to 115 deg F Cooling, Steel, Finish: Galvanized/Polyester-Coated, 33.2 in H x 29.1 in W x 29.1 in D, Additional Information: Microchannel Coil Type
| Additional Information | : | Microchannel Coil Type |
| Amperage Rating | : | 35.1 A |
| CFM Rating | : | 3800 cfm |
| Coil Rating | : | 1-Row |
| Compressor Type | : | Scroll |
| Connection Type | : | Sweat |
| Cooling Capacity | : | 60000 Btu/hr |
| Dimensions | : | 33.2 in H x 29.1 in W x 29.1 in D |
| Drive Type | : | External |
| Face Area | : | 18.4 sq-ft |
| Finish | : | Galvanized/Polyester-Coated |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 60 A |
| HP Rating | : | 1/3 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Motor Type | : | ECM |
| Nominal Capacity | : | 5 ton |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1050 rpm |
| SEER Rating | : | 15 |
| Series | : | SE Series |
| Sound Level | : | 77 dB |
| Suction Line Size | : | 1-1/8 in |
| Temperature Rating | : | 55 to 115 deg F Cooling |
| Voltage Rating | : | 208/230 V |
- R410A Refrigerant
- High-quality condenser coil with copper tubing and aluminum fin for maximum heat transfer capacity
- Top discharge directs hot air and sound away from living area and landscaping
- Internal protection against high temp motor overload
- Easy access to electrical panel, pre-wired for easy hook-up
- All units ETL and AHRI Certified
- Charged for 15 feet of interconnecting tubing
- Factory installed high and low pressure switch
Warranty Information
