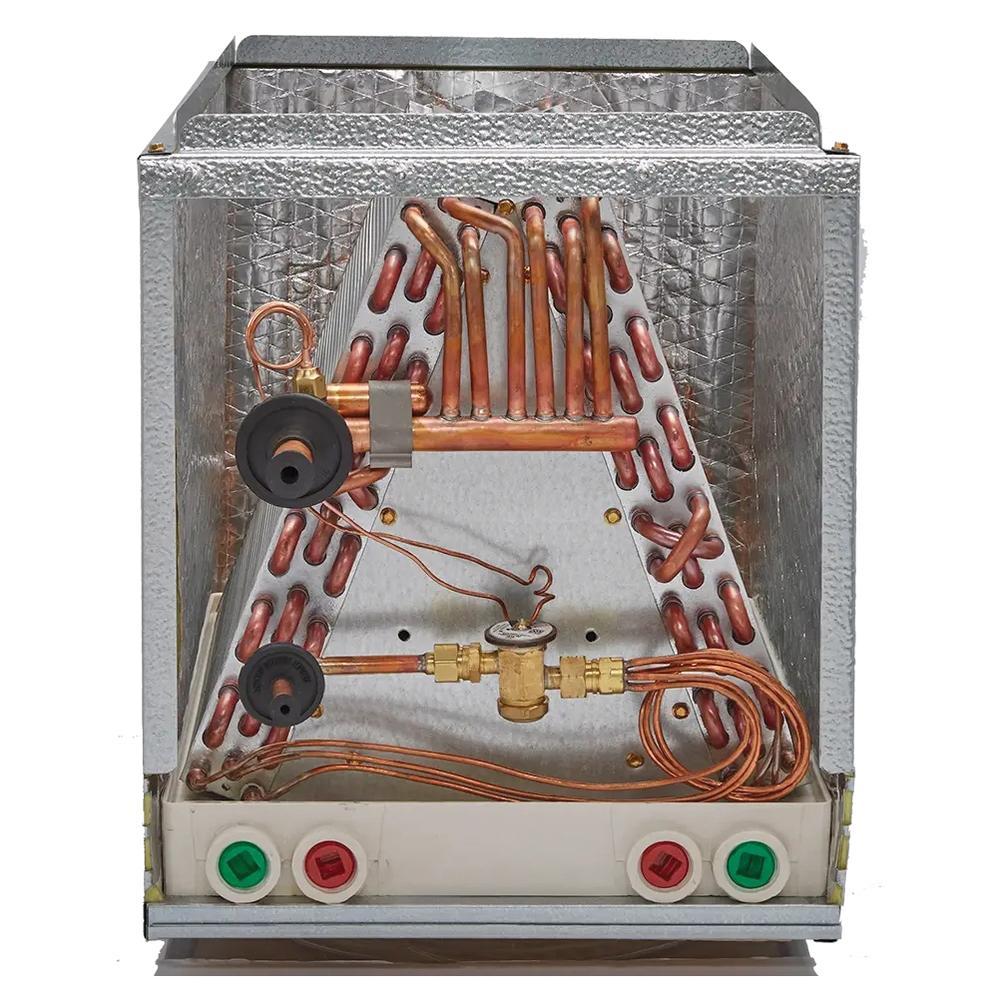

ADP® HE Series 70072223 Evaporator Coil, Uncased Coil, 60000 Btu/hr, 2000 cfm, Steel
- Manufacturer: Advanced Distributor Products
- Brand Name: ADP®
- Part#: ASLHE50960A200A0000AP
- MPN: 70072223
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The HE Series premier evaporator coils match perfectly with any system, providing an upgrade over standard matched coils.
ADP® Evaporator Coil, HE Series, 60000 Btu/hr, Right Hand Uncased, 19-1/2 in D Drain Pan, 27-1/2 in H x 21 to 24-1/2 in W Slab, 2000 cfm, R-410A Refrigerant, Uncased Coil, 50 Slabs, #93 Piston, 500 psi, Steel, Finish: Embossed, 20 in W, Non-Bleed HP-A/C TXV Metering Device, TXV Access Port, 7/8 in ODF Suction Size
| Additional Information | : | Non-Bleed HP-A/C TXV Metering Device, TXV Access Port, 7/8 in ODF Suction Size |
| BTU Rating | : | 60000 Btu/hr |
| CFM Rating | : | 2000 cfm |
| Coil Type | : | Uncased |
| Configuration | : | Right Hand Uncased |
| Dimensions | : | 20 in W |
| Drain Pan Size | : | 19-1/2 in D |
| Finish | : | Embossed |
| Material | : | Steel |
| Number of Slabs | : | 50 |
| Piston Size | : | #93 |
| Pressure Rating | : | 500 psi |
| Refrigerant Type | : | R-410A |
| Series | : | HE Series |
| Slab Size | : | 27-1/2 in H x 21 to 24-1/2 in W |
- FlexCoil: Engineered for all refrigerants
- Lower heights and variable widths for a perfect furnace fit
- Cased, uncased, multi-position and upflow/ downflow configurations
- Built-in plenum flanges with rounded corners for fast and safe installation
- Front panel with only four screw access and non-captive refrigerant lines for fast and easy coil access
- Available in copper or aluminum
- Painted cabinet options for furnace color coordination
