Auroris™ HHO-500 AURHHO-500
  1. pin-int

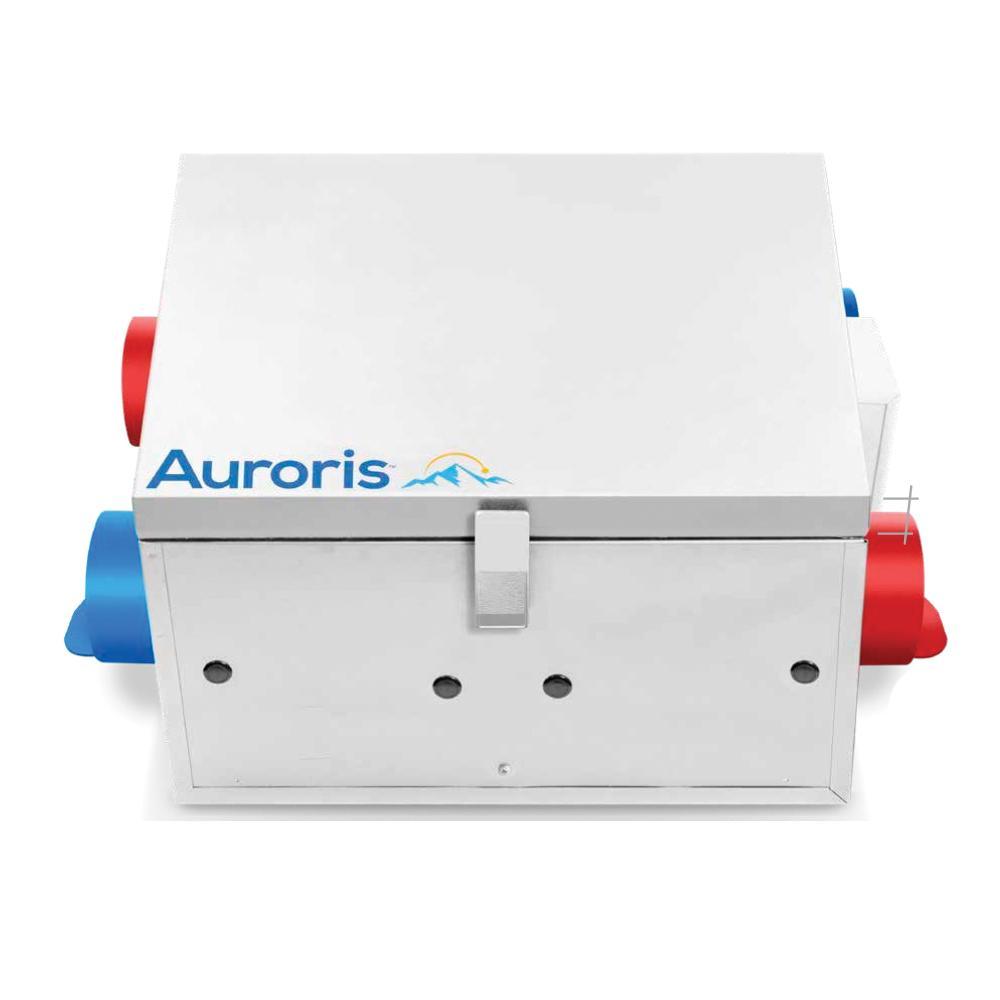

Auroris™ Solas™ HO Series HHO-500 Heat Recovery Ventilator With PSC Motors, 500 cfm Air Flow, 115 V, 5.2 A, 7 W, Steel

Auroris™ Solas™ HO Series HHO-500 Heat Recovery Ventilator With PSC Motors, 500 cfm Air Flow, 115 V, 5.2 A, 7 W, Steel

  • Manufacturer: Eco Earth Sciences Inc
  • Brand Name: Auroris™
  • Part#: AURHHO-500
  • MPN: HHO-500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Auroris™ Heat Recovery Ventilator, Series: HO Series, 500 cfm Air Flow Capacity, 5.2 A, 115 V, 60 Hz, 1 ph, 7 W, 32 deg F, 65 % Effectiveness, 57 % Temperature Recovery Efficiency, 16.3 x 16.3 x 13.2 in Core, Steel, Powder-Coated, 27 in Length, 29-3/4 in Width, 15-3/4 in Height

Air Flow Capacity      :      500 cfm
Amperage Rating      :      5.2 A
Core Size      :      16.3 x 16.3 x 13.2 in
Dimensions      :      28.25 in W x 26.25 in D x 15.75 in H
Effectiveness      :      65 %
Finish      :      Powder-Coated
Frequency Rating      :      60 Hz
Height      :      15-3/4 in
Length      :      27 in
Material      :      Steel
Phase      :      1 ph
Power Rating      :      7 W
Series      :      HO Series
Temperature Rating      :      32 deg F
Temperature Recovery Efficiency      :      57 %
Voltage Rating      :      115 V
Width      :      29-3/4 in
  • High Efficiency Permanently Lubricated Variable Speed (PSC) Motors
  • Tilted core design for maximum efficiency
  • Constructed using UL-certified sound insulation. The Quietest in its class
  • Military Grade Specification: constructed using heavy-gauge steel, welded joints, individually powder-coated.
  • Over all size 28.25" (W) x 26.25" (D) x 15.75 " (H)
  • Power ratings: 115V / 1 / 60 Hz, 1.5 Amp., Standby current is 7W only
  • Washable Polypropylene Core and Filters
  • Drainless Design
  • High efficiency energy-saving permanently lubricated variable speed PSC motors for air balancing
  • Suitable for horizontal & vertical installation
  • Exhaust up to four washrooms
  • Suitable for Corridor
  • Two Speed exhaust (High / Low) - up to 500 CFM maximum
  • Continuous fresh air supply at Normal speed up to 500 CFM
  • Furnace / Fan-coil / Heat Pump Interlock
  • Dual Power Failure / Freeze Protection
  • Weighs approximately 100 lbs.
  • Meets All LEED Standards and Building Code Requirements
  • SMART IAQTM Enabled
  • 5 Year Limited Warranty
