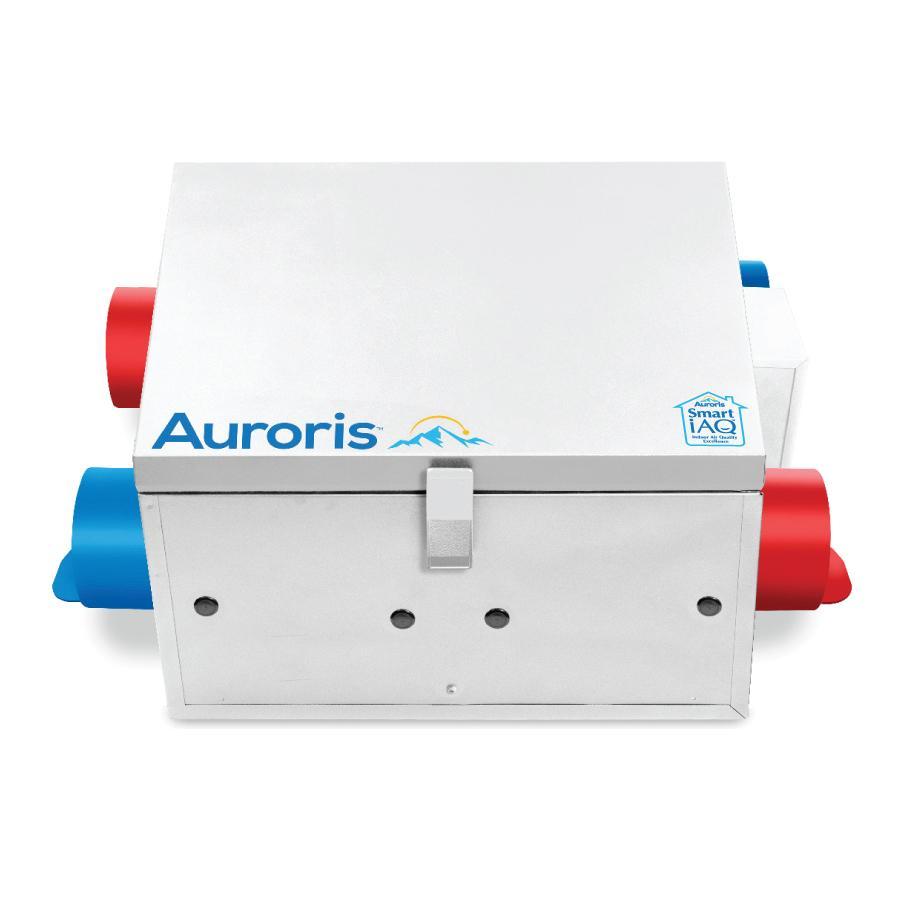

Auroris™ Solas™ Series ESH-200 Energy Recovery Ventilator, Up to 150 cfm Air Flow, 115 V, 156 W, 1.5 A, Steel

QUALITY AND PERFORMANCE CONVERGE Innovative Engineering and design facilitate two separate functions: HRV or ERV. Unique tilted core design provides maximum drainage to maintain the Highest Efficiency. Low profile design for Maximum Space Efficiency. Advanced Sound Reduction Engineering makes Solas™ among the Quietest in the industry. Advanced fan cycle defrost ensures Flawless Performance. Solas™, the logical choice for Quality and Performance.

Auroris™ Energy Recovery Ventilator, Solas™ Series, Up to 150 cfm Air Flow Capacity, 1.5 A, 115 V, 60 Hz, 1 ph, 156 W, Effectiveness: 89%, 74% Efficiency, PSC Motor, Steel, Powder-Coated, 32 to 95 deg F, 23 in Width, 12-1/4 in Height

• High efficiency energy saving permanently lubricated variable speed PSC motors for air balancing
• Tilted core design for maximum efficiency
• Constructed using UL certified sound insulation. The Quietest in its class
• Military Grade Specification: constructed using heavy gauge steel, welded joints, individually powder coated
• Over all size 23" (W) x 23" (D) x 12.25 " (H)
• Power ratings: 115V / 1 / 60 Hz, 1.5 Amp., Standby current is 7W only
• Washable Polypropylene Core
• Drainless Design
• Suitable for horizontal & vertical installation
• Exhaust up to four washrooms
• Suitable for Corridor
• Two Speed exhaust (High / Low) - up to 225 CFM maximum
• Continuous fresh air supply at Normal speed up to 150 CFM
• Furnace / Fan-coil / Heat Pump Interlock
• Dual Power Failure / Freeze Protection
• Weight approximately 52 lbs.
• SMART IAQ™ Enabled
• 5 Year Warranty
