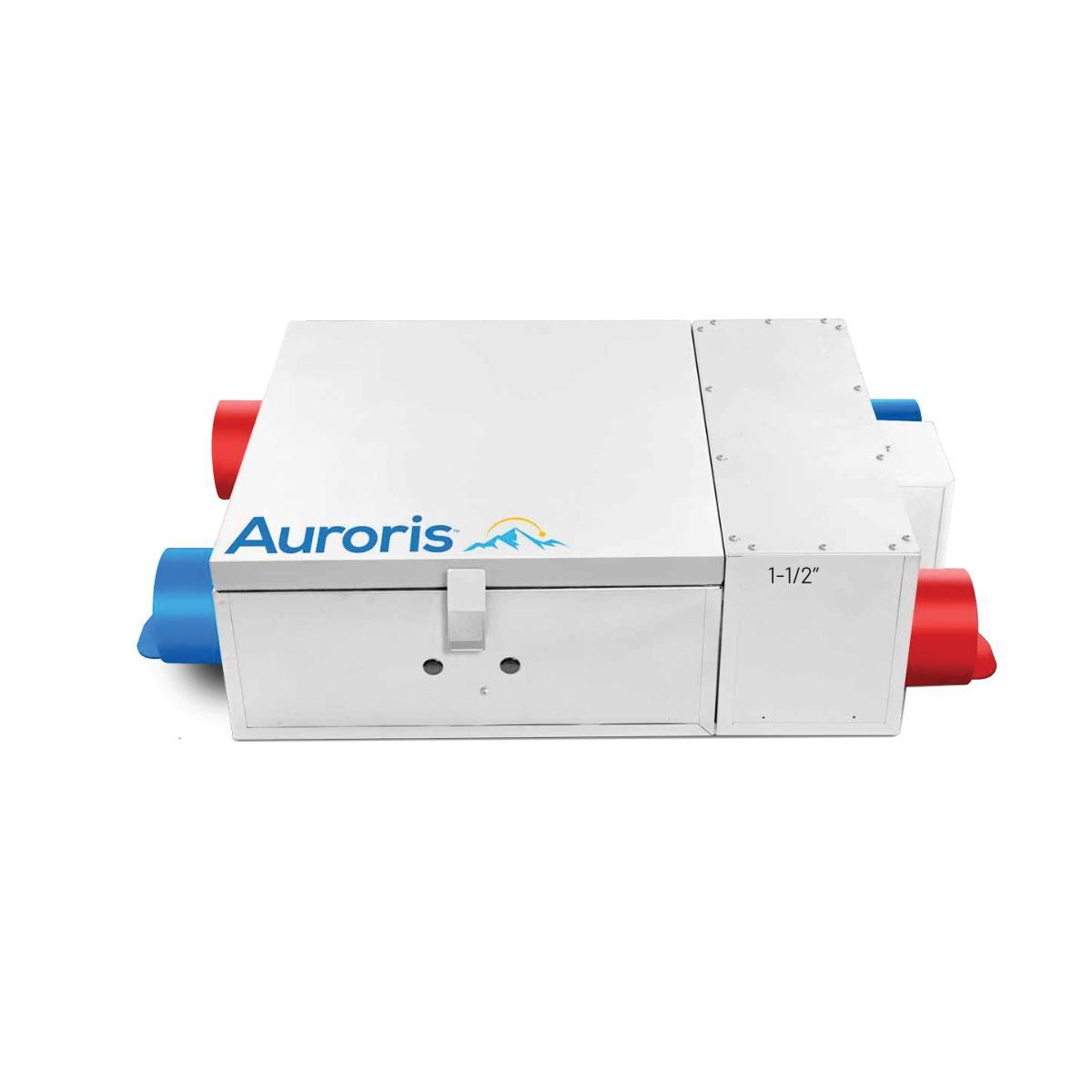

Auroris™ Primus™ SA Series EPSAX-150 Energy Recovery Ventilator, 160 cfm Air Flow, 115 V, 7 W, 1.1 A, Steel
- Manufacturer: Eco Earth Sciences Inc
- Brand Name: Auroris™
- Part#: AUREPSAX-150
- MPN: EPSAX-150
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Auroris™ Energy Recovery Ventilator, Series: SA Series, 160 cfm Air Flow Capacity, 1.1 A, 115 V, 60 Hz, 1 ph, 7 W, 61 % Heating, 49 % Cooling Efficiency, 1.6 in-WC, ECM Motor, Steel, Powder-Coated, -13 deg F Heating, 95 deg F Cooling, 21 in Length, 27-3/4 in Width, 9-1/4 in Height
| Air Flow Capacity | : | 160 cfm |
| Amperage Rating | : | 1.1 A |
| Dimensions | : | 21 in W x 27.75 in D x 9.75 in H |
| Efficiency | : | 61 % Heating, 49 % Cooling |
| Finish | : | Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Height | : | 9-1/4 in |
| Length | : | 21 in |
| Material | : | Steel |
| Motor Type | : | ECM |
| Phase | : | 1 ph |
| Power Rating | : | 7 W |
| Pressure Rating | : | 1.6 in-WC |
| Series | : | SA Series |
| Temperature Rating | : | -13 deg F Heating, 95 deg F Cooling |
| Voltage Rating | : | 115 V |
| Width | : | 27-3/4 in |
- The Industry's First Built-In True Automatic Airflow Balancing Technology (TABTM)
- Highly Energy Efficient, permanently lubricated, ECM Motors
- Tilted core design for maximum efficiency
- Constructed using UL certified sound insulation. The Quietest in its class.
- Military Grade Specification: constructed using heavy gauge steel, welded joints, individually powder coated.
- Adjustable Speeds Air flow: 45 - 95 CFM (Normal Operation), Max. 160 CFM
- Power Ratings: 115V / 1 / 60 Hz, 1.10 Amp., Standby 7 W
- Adjustable 4-Normal (Low Speed) and 4-High Speed operation
- Fully Automatic Recirculation Defrost (Below -5degC)
- Unique electronic control board with power failure auto-restore
- Dual Failsafe Protection
- Washable Enthalpy core suitable up to -25degC (Drainless Design)
- Furnace / Fan-coil / Heat Pump Interlock
- Horizontal & Vertical Installation
- Meets All LEED Standards and Building Code Requirements
- SMART IAQ™ Enabled
- 5-Year Limited Warranty
