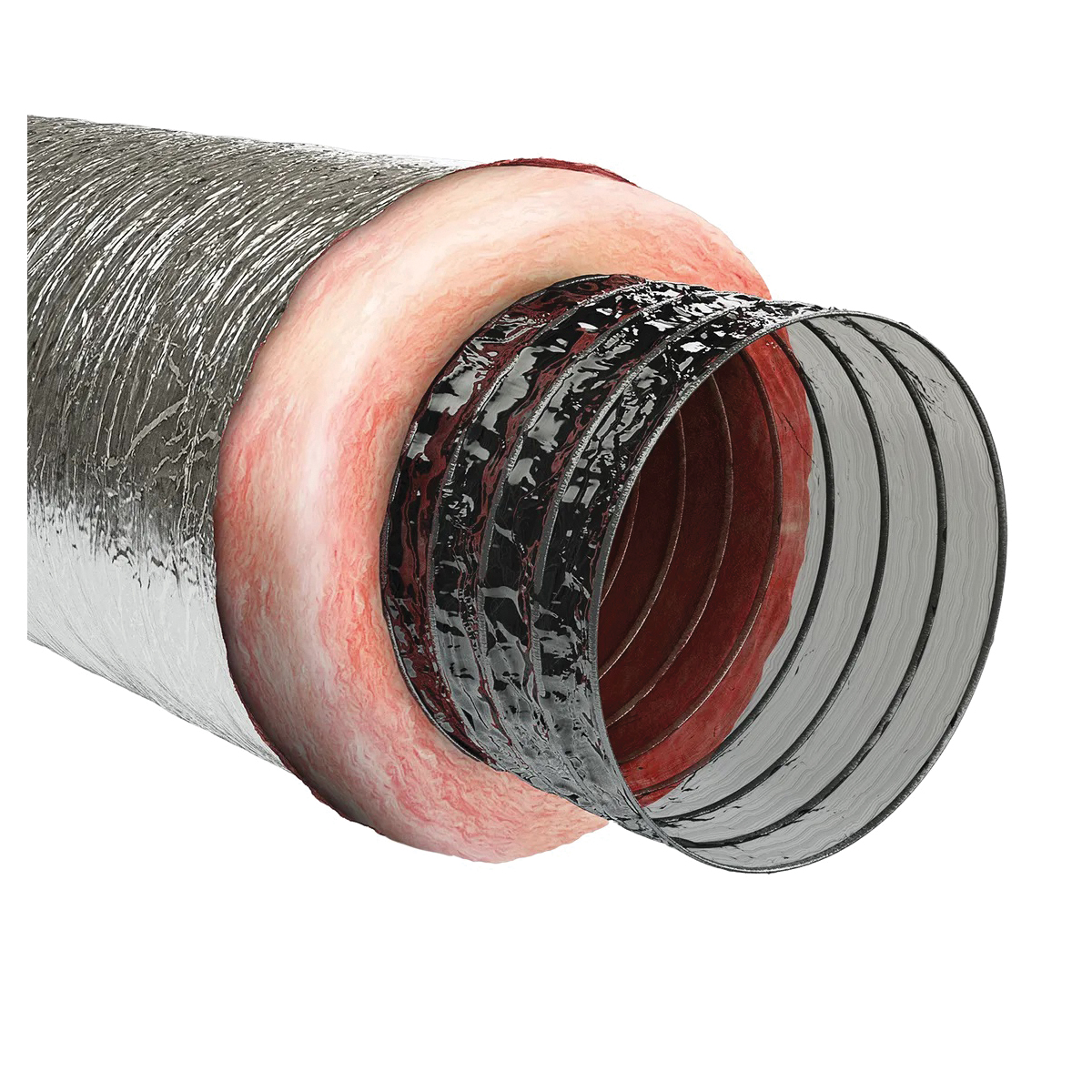

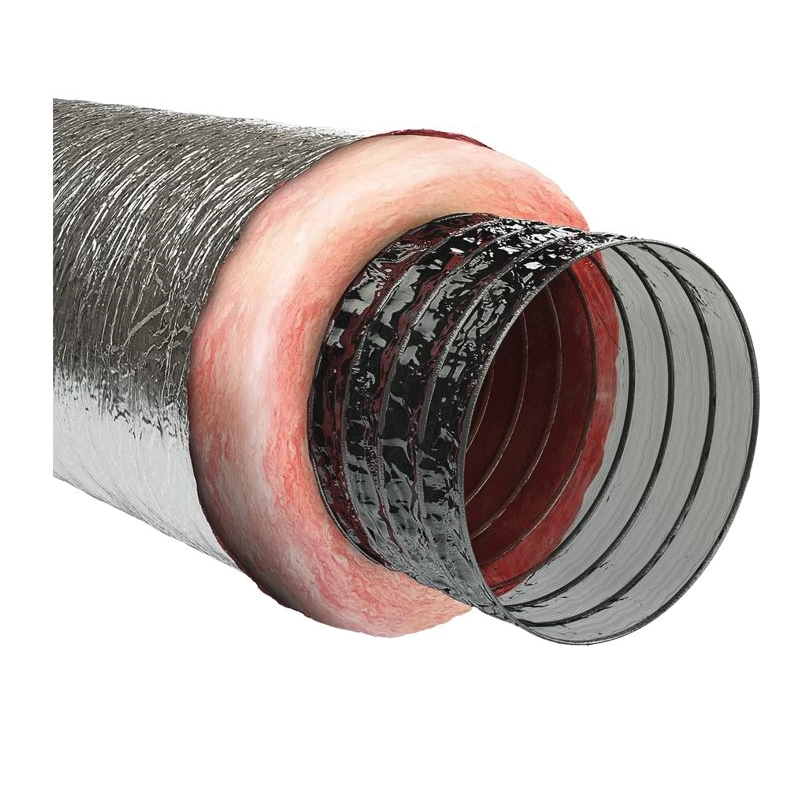

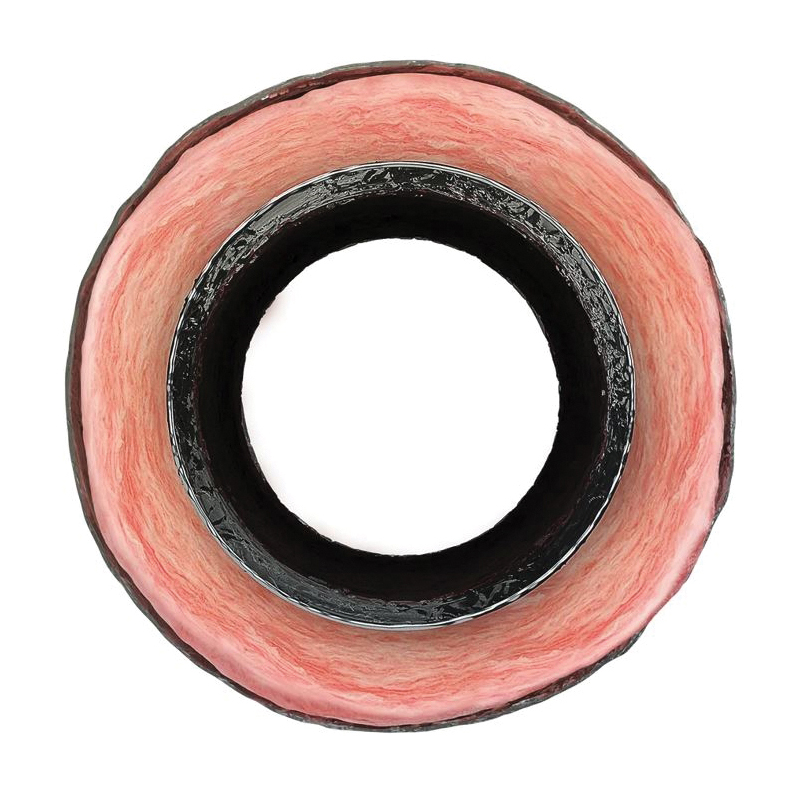

Imperial® MEA-0425 Air Duct, 4 in Dia, 25 ft L, R4.2, Fiberglass/Polyester/Steel
- Manufacturer: Imperial Manufacturing Group
- Brand Name: Imperial®
- Part#: IMPMEA-0425
- MPN: MEA-0425
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The air duct is designed for wherever UL 181 and ULC S-110 standards for class 1 air duct is required. The 2-ply polyester laminated inner core provides outstanding resistance and durability. The fiberglass reinforced metalized outer jacket is extremely strong and will not unravel. The air duct is suitable for use with heating, ventilation and air conditioning systems.
Imperial® Air Duct, MEA Series, 25 ft Length, 4 in Diameter, 2.5 kPa Intermittent Positive, 1.5 kPa Continuous Positive, 0.5 kPa Negative, Fiberglass/Polyester/Steel, Silver, R-Value: R4.2, 4000 fpm Velocity Rating, -20 to 140 deg F, -20 to 180 deg F, 250 deg F
| Color | : | Silver |
| Diameter | : | 4 in |
| Length | : | 25 ft |
| Material | : | Fiberglass/Polyester/Steel |
| Pressure Rating | : | 2.5 kPa Intermittent Positive, 1.5 kPa Continuous Positive, 0.5 kPa Negative |
| R-Value | : | R4.2 |
| Series | : | MEA Series |
| Temperature Rating | : | -20 to 140 deg F, -20 to 180 deg F, 250 deg F |
| Velocity Rating | : | 4000 fpm |
- The 2-ply polyester laminated inner core provides outstanding resistance and durability
- The fiberglass reinforced metalized outer jacket is extremely strong and will not unravel
Instruction/Installation Manual
