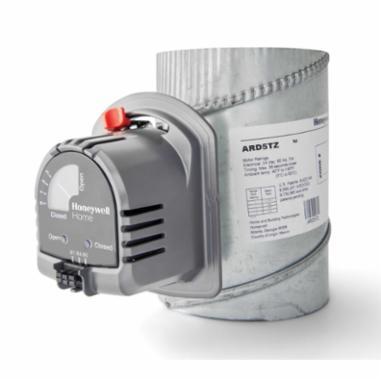

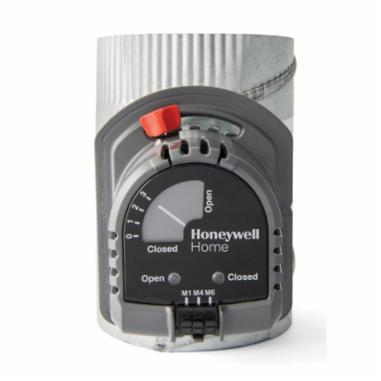

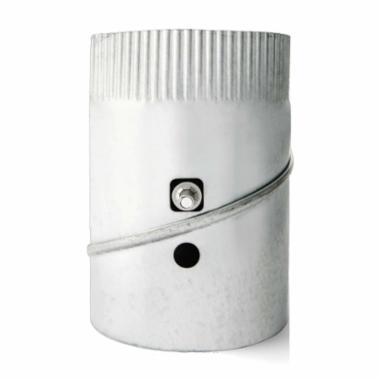

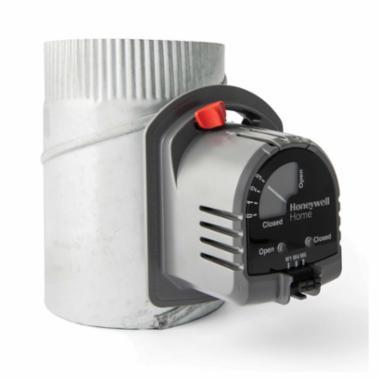

Honeywell Home TrueZONE® ARD10TZ/U Automatic Zone Damper, 10 in Dia, Round, 24 V, 6 A, 71 in-oz
- Manufacturer: Resideo Technologies Inc
- Brand Name: Honeywell Home
- Part#: HNWARD10/U
- MPN: ARD10TZ/U
- UPC: 085267461191
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Made of galvanized steel, the single blade automatic round HV damper features a power close, spring open construction to ensure minimal leakage while controlling circulating air in zoned heating, cooling and ventilation systems. Creating multiple temperature zones in the home can help your customers save money and energy. Zoning makes heating or cooling a home more efficient by delivering airflow to zones where it wanted and blocking airflow to the areas it not. The 12 in round automatic damper regulates airflow for proper zoned heating and cooling.
Honeywell Home TrueZONE® Automatic Zone Damper, Series: ARD Series, 10 in Diameter, 24 V, 6 A, 60 Hz, VA Rating: 8 VA, M1 Power, M6 Common, M4 Terminal Electrical Connection, 30 s Timing Range, 71 in-oz Torque, 1-Blade, 0.0329 in-WC Pressure Drop, 24 ga Gauge, Steel, Galvanized, Metallic, Spring Open, Power Closed Motor, 4-41/64 in H Motor Dimensions, Round Shape, 1 in-WC, 40 to 140 deg F, 4-31/32 in Width, 3-61/64 in Height
| Amperage Rating | : | 6 A |
| Color | : | Metallic |
| Diameter | : | 10 in |
| Electrical Connection | : | M1 Power, M6 Common, M4 Terminal |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Gauge | : | 24 ga |
| Height | : | 3-61/64 in |
| Material | : | Steel |
| Motor Dimensions | : | 4-41/64 in H |
| Motor Type | : | Spring Open, Power Closed |
| Number of Blades | : | 1 |
| Pressure Drop | : | 0.0329 in-WC |
| Pressure Rating | : | 1 in-WC |
| Series | : | ARD Series |
| Shape | : | Round |
| Temperature Rating | : | 40 to 140 deg F |
| Timing Range | : | 30 s |
| Torque Rating | : | 71 in-oz |
| VA Rating | : | 8 VA |
| Voltage Rating | : | 24 V |
| Width | : | 4-31/32 in |
- Round damper with 24 V, spring return damper actuator
- Galvanized steel single blade damper, which closes off tightly against gasket for minimal leakage
- Heavier blade construction for longer life
- Quieter operation with fewer blades
- Simple, easy to wire, two-wire installation
- Fail safe, normally open operation
- Adjustable range stops are simple to use and easier to understand
- Mechanical position indicator for the damper blade
- Can be field converted when used as an independent zone or for fresh air intake
