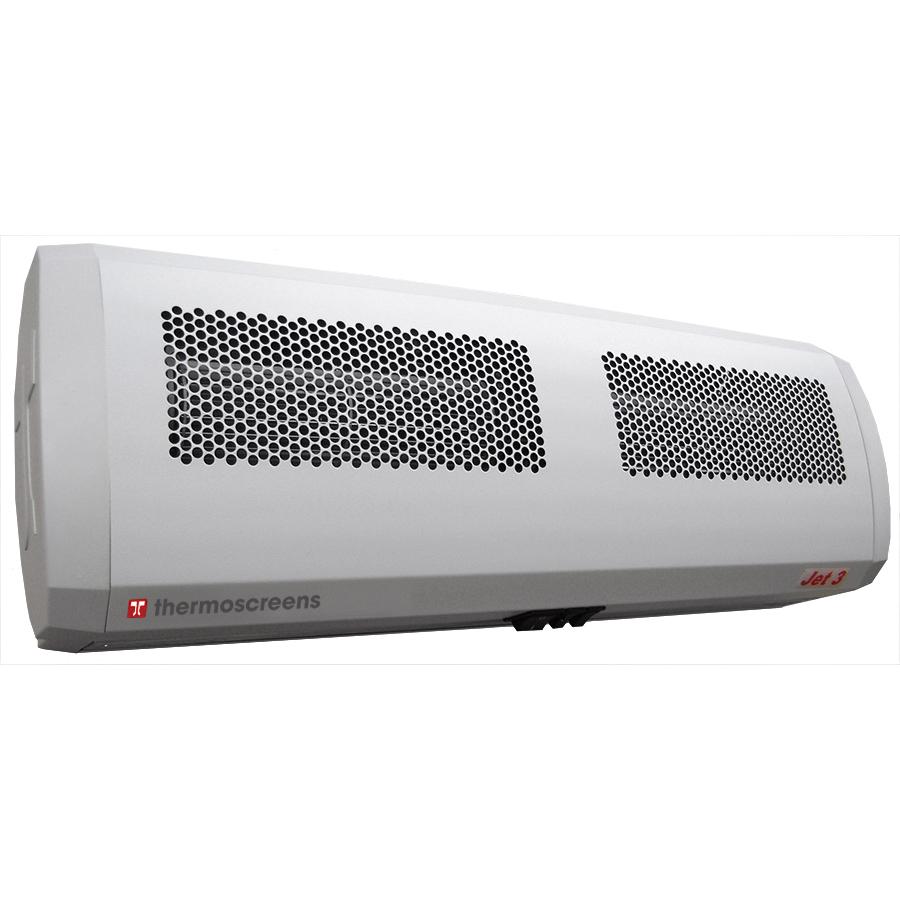

Ouellet ORA-J Series JET6 Jet Drive-Through Air Curtain, 220 cfm, 2.46 kW, 4.91 kW, 208 VAC, Steel, White
- Manufacturer: Ouellet
- Brand Name: Ouellet
- Part#: OULJET6
- MPN: JET6
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

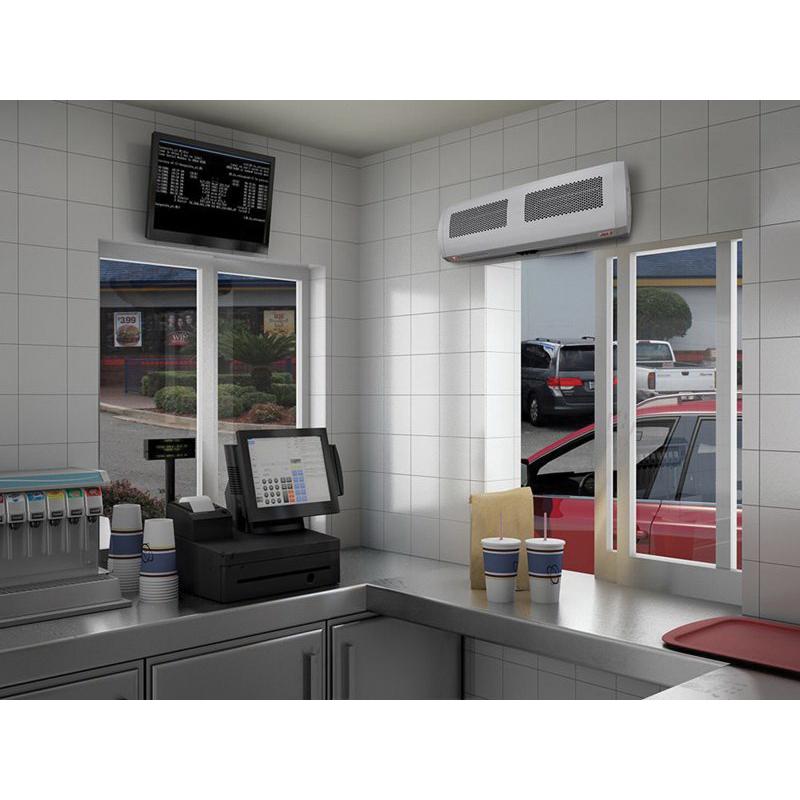

The Jet air curtain features a high-output element and full-width air outlet to create instant heat as required. The compact dimensions and design of this air curtain are ideal for installing above drive-through windows. The unit can be installed up to a maximum height of 1 m.
Ouellet Jet Drive-Through Air Curtain, Series: ORA-J Series, Model: Electric Heat, 208 VAC, 25 A, 2.46 kW, 4.91 kW, 60 Hz, 1, 220 cfm Rating, 56 dBA, Steel, White, 31 1/2 in L x 4-3/4 in W x 7-15/16 in H
| Amperage Rating | : | 25 A |
| CFM Rating | : | 220 cfm |
| Color | : | White |
| Dimensions | : | 31 1/2 in L x 4-3/4 in W x 7-15/16 in H |
| Frequency Rating | : | 60 Hz |
| Material | : | Steel |
| Model | : | Electric Heat |
| Phase | : | 1 |
| Power Rating | : | 2.46 kW, 4.91 kW |
| Series | : | ORA-J Series |
| Sound Level | : | 56 dBA |
| Voltage Rating | : | 208 VAC |
- Steel casing with resistant plastic end caps
- Quick access to the internal components thanks to the front panel which facilitate maintenance and connection
- High limit temperature control with automatic reset
- Tangential fans
- Element provides instant heat
- Fan switch On or Off
- Heating switch low/high
- Can be wall or celling mounted with the provided mounting brackets
Instruction/Installation Manual
