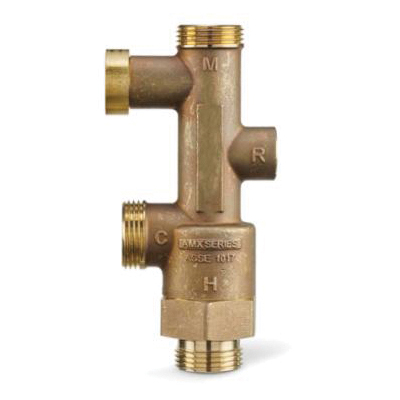

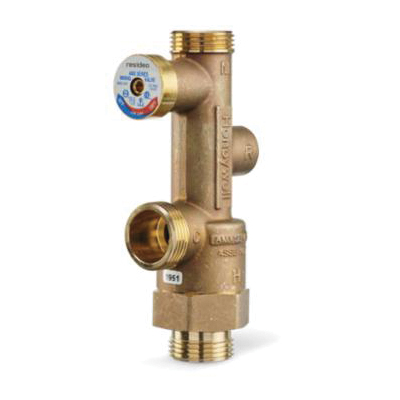

Honeywell Home AMX Series AMX102-UT-1LF Thermostatic Mixing Valve, 1 in Nominal, NPT, 0.5 gpm, 150 psi, 90 to 130 deg F
- Manufacturer: Resideo Technologies Inc
- Brand Name: Honeywell Home
- Part#: HNWAMX102-UT-1
- MPN: AMX102-UT-1LF
- UPC: 085267338127
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
AMX Series DirectConnect™ reduces water heater installation time as the cold and hot port position eliminates the need for typical elbows and tees. Designed for safety to prevent scalding, it also increases user comfort.
Honeywell Home Thermostatic Mixing Valve, AMX Series, 1 in Nominal, NPT Connection, 150 psi, 0.5 gpm Flow Rate, Water Media, Brass Body, EPDM Seal, EPDM Packing, EPDM Softgoods, 90 to 130 deg F, 4-1/2 in H, Domestic/Import: Import, Additional Information: 4 Cv Flow Coefficient
| Additional Information | : | 4 Cv Flow Coefficient |
| Body Material | : | Brass |
| Connection Type | : | NPT |
| Dimensions | : | 4-1/2 in H |
| Domestic/Import | : | Import |
| Flow Rate | : | 0.5 gpm |
| Media | : | Water |
| Nominal Size | : | 1 in |
| Packing Material | : | EPDM |
| Pressure Rating | : | 150 psi |
| Seal Material | : | EPDM |
| Series | : | AMX Series |
| Softgoods Material | : | EPDM |
| Temperature Rating | : | 90 to 130 deg F |
- Designed to be directly installed on water heater hot outlet port
- Offers constant water temperature under changing operating conditions
- Temperature is adjustable using 3/16 Allen Wrench and if cold-water supply is interrupted, flow reduction occurs in seconds
- Features brass/stainless construction and PTFE-coated of wear surfaces
- Heat trapping not required and recirculation portion option allows for fast response
- Lead-free products have products numbers end in LF
- Low-lead content <0.25% by weighted average
Instruction/Installation Manual
