NTI FTVN110 High-Efficiency Gas-Fired Tube Condensing Boiler, 95 % AFUE, 110000 Btu/hr BTU, 120 VAC, 1 ph Phase
- Manufacturer: NTI Boilers
- Brand Name: NTI
- Part#: FTVN110
- MPN: FTVN110
- UPC: 628233731616
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

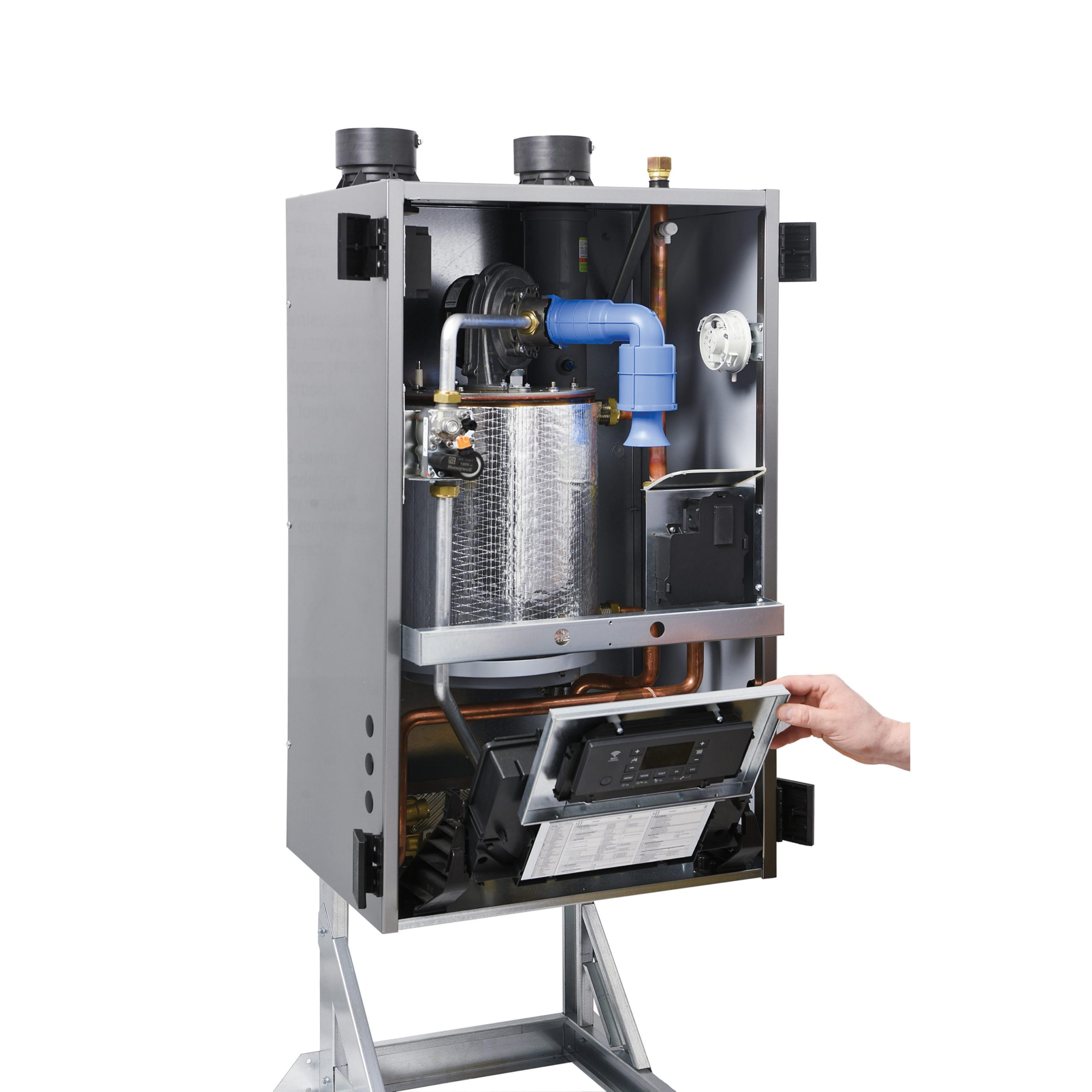

The FTVN is a high-efficiency, wall-hung boiler using a durable, vertical down-fired stainless heat exchanger. With 10:1 modulation and 96% AFU, an integrated ECM pump and DHW diverter, quick connect components, Wi-Fi connectivity for remote monitoring and alert notifications, the FTVN is an ideal solution for your peace of mind, home heating needs.
NTI High-Efficiency Gas-Fired Tube Condensing Boiler, 120 VAC, 12 A, 60 Hz Frequency, 1 ph, 95 % AFUE, 110000 Btu/hr BTU, 50 psi Pressure, 3/4 in MNPT Gas, 1-1/4 in MNPT Water Connection, Liquid Propane Gas, Natural Gas Fuel, Exhaust Vent, Chimney/Breeching/Vent Size: 2 in, 101 mbh DOE Heating, 2 in Flue Outlet, Direct Spark Ignition, 88 mbh Net IBR, Wall Mounting, Stainless Steel, Dimensions: 37-1/4 in H x 19-1/2 in W x 18-1/2 in D
| AFUE Rating | : | 95 % |
| Amperage Rating | : | 12 A |
| BTU Rating | : | 110000 Btu/hr |
| Chimney/Breeching/Vent Size | : | 2 in |
| Connection Type | : | 3/4 in MNPT Gas, 1-1/4 in MNPT Water |
| DOE Heating Capacity | : | 101 mbh |
| Dimensions | : | 37-1/4 in H x 19-1/2 in W x 18-1/2 in D |
| Flue Outlet Size | : | 2 in |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Liquid Propane Gas, Natural Gas |
| Ignition Type | : | Direct Spark |
| Material | : | Stainless Steel |
| Mounting Type | : | Wall |
| Net IBR Rating | : | 88 mbh |
| Phase | : | 1 ph |
| Pressure Rating | : | 50 psi |
| Vent Type | : | Exhaust |
| Voltage Rating | : | 120 VAC |
- Fire tube chromium stainless steel heat exchanger
- Vertical down fired stainless steel heat exchanger for exceptional efficiency and durability
- Wi-Fi on board for remote control and monitoring
- Integrated ECM pump and DHW diverter valve on all models
- ASME H stamped boiler, designed and constructed in compliance with the ASME boiler and pressure vessel code section IV
- Modulating burner with 10:1 turndown ratio
- (2) 120 VAC outputs for external circulators
- Zero clearance to combustibles (clearances required for service)
- Small zone valve systems may not require an additional pump or a low loss header
- CH zone input x 2 (on/off switch or NTI room sensor)
- Outdoor temperature sensor input (or access weather via Wi-Fi connection)
- Easy service access and quick component connections
- Internal diverter valve eliminates need for indirect pump
- Certified as direct vent (sealed combustion) or for use with indoor combustion air
- Sealed cabinet and integrated condensate trap
- High energy ignition transformer (spark ignition)
- Built-in water pressure bypass (guarantees minimum water flow)
- Low water pressure switch
- Integrated ECM boiler circulator

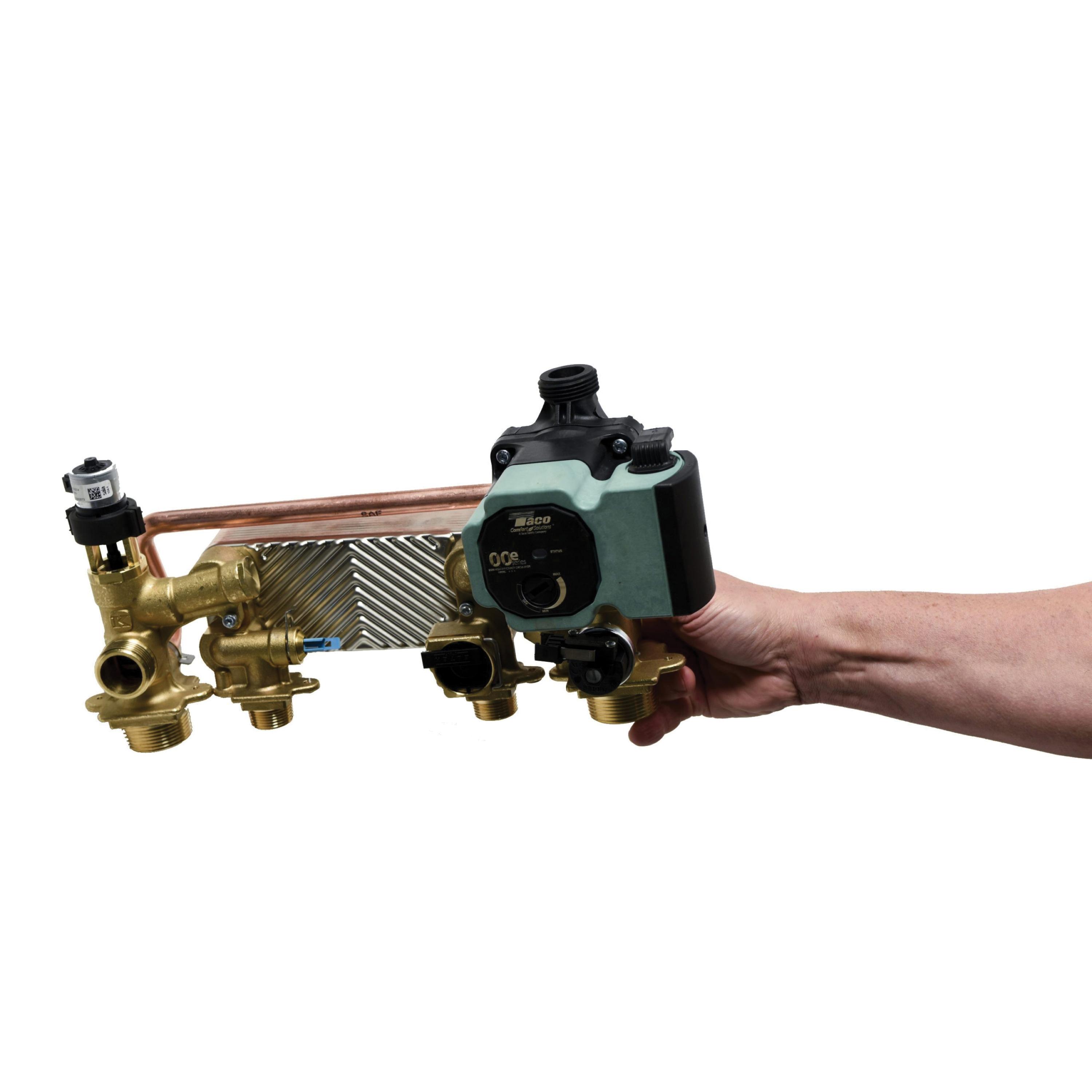

- Integrated 3-way valve (diverts between DHW and CH demands)
