Decora® Plus 5621-2W LFM56212W
  1. pin-int

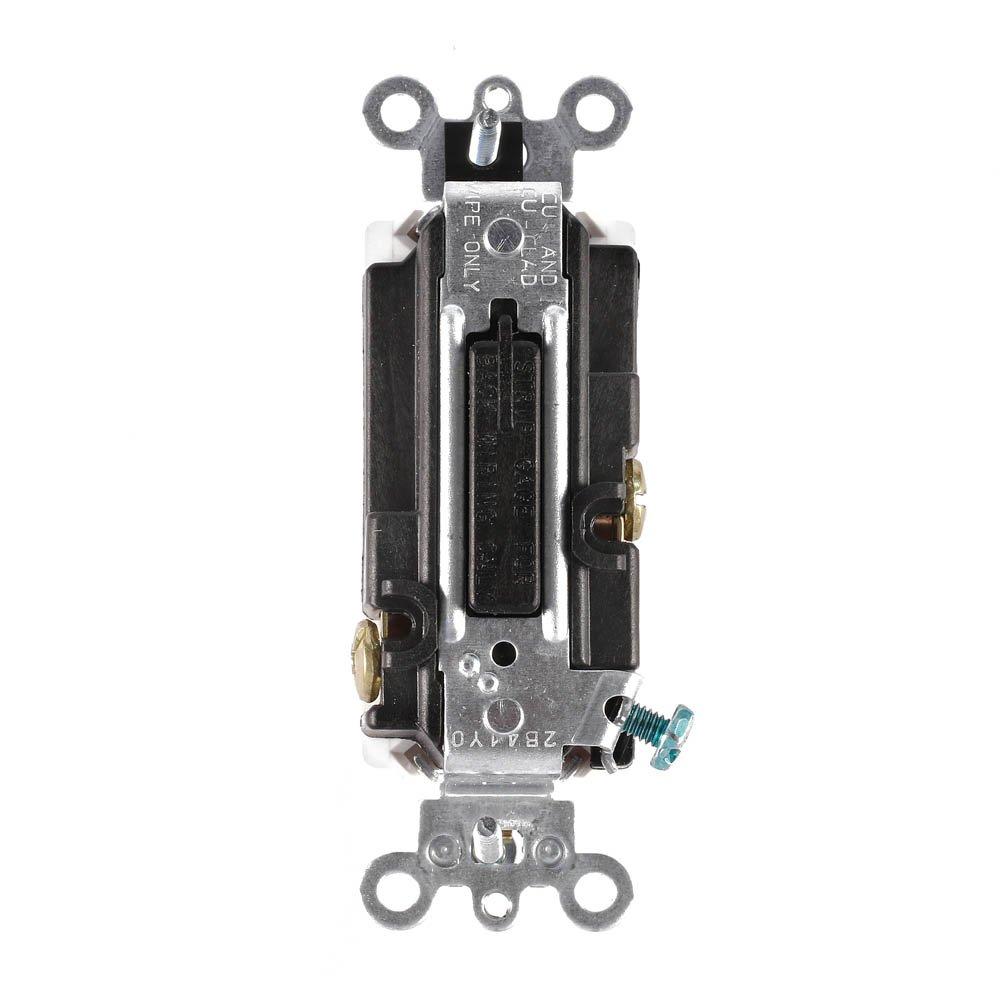

Decora® Plus 5621-2W AC Quiet Switch, 120/277 VAC, 20 A, 1 -Pole, Back Wired, Side Wired Wire Connection, Thermoplastic

Decora® Plus 5621-2W AC Quiet Switch, 120/277 VAC, 20 A, 1 -Pole, Back Wired, Side Wired Wire Connection, Thermoplastic

  • Manufacturer: Leviton
  • Brand Name: Decora® Plus
  • Part#: LFM56212W
  • MPN: 5621-2W
  • UPC: 078477052662
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Decora® Plus devices combine designer styling with all the benefits of rugged commercial-grade construction. The robust product offering includes single-pole, double-pole, three and four-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.

Decora® Plus AC Quiet Switch, 120/277 VAC, 20 A, 1 Pole, 50000 cycles Operating Cycles, 14 to 10 AWG Wire, Back Wired, Side Wired Wire Connection Type, 1500 V Dielectric, -40 to 65 deg C, Thermoplastic, White, 4.06 in Height, 1.76 in Width

Amperage Rating      :      20 A
Color      :      White
Dielectric Strength      :      1500 V
Height      :      4.06 in
Material      :      Thermoplastic
Number of Poles      :      1
Operating Cycles      :      50000 cycles
Temperature Rating      :      -40 to 65 deg C
Voltage Rating      :      120/277 VAC
Width      :      1.76 in
Wire Connection Type      :      Back Wired, Side Wired
Wire Size      :      14 to 10 AWG
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Decora_17542W_Owners_User_Manual.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Decora_Plus_56212W_Installation_Instructions.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Decora_Plus_56212W_Specification_Sheet.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Decora_Plus_56212W_Technical_Drawing.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Decora_Plus_56212W_Installation_Instructions.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Decora_Plus_56212W_Technical_Drawing.pdf
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Decora_17542W_Owners_User_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Decora_Plus_56212W_Specification_Sheet.pdf
