Leviton® 5601-2W LFM5601W
  1. pin-int

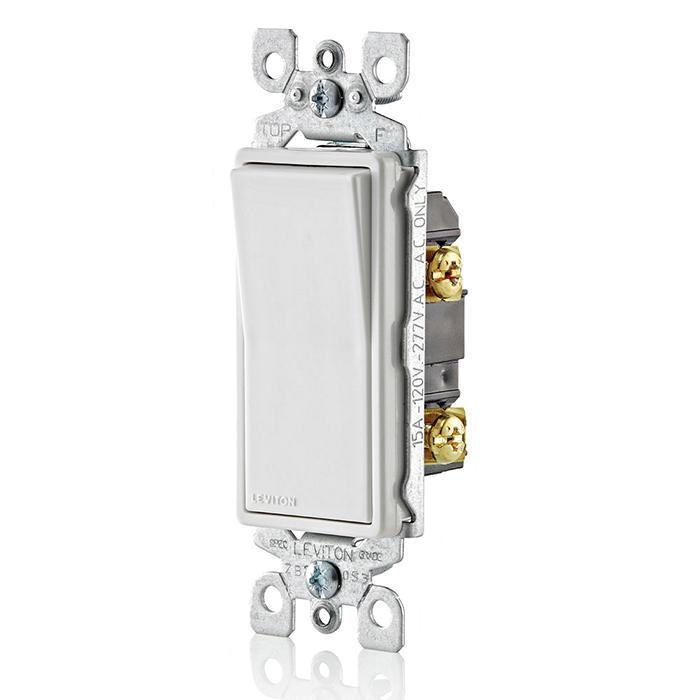

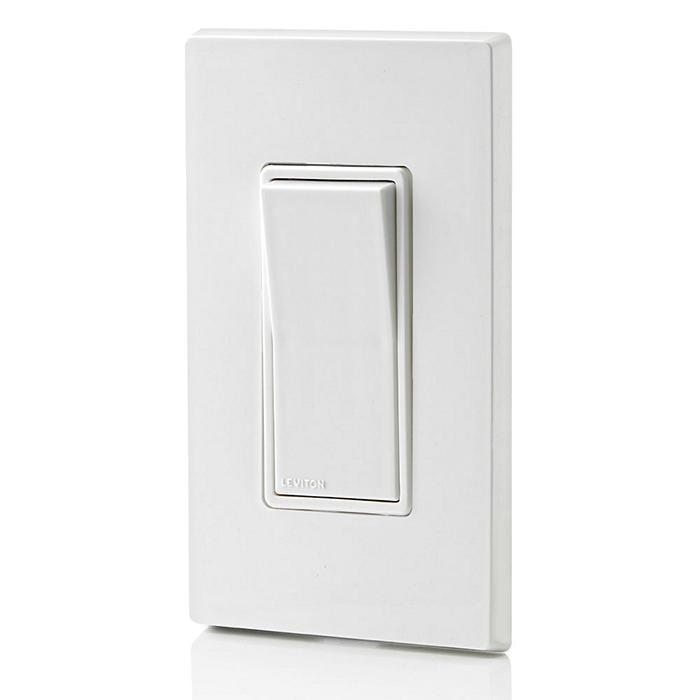

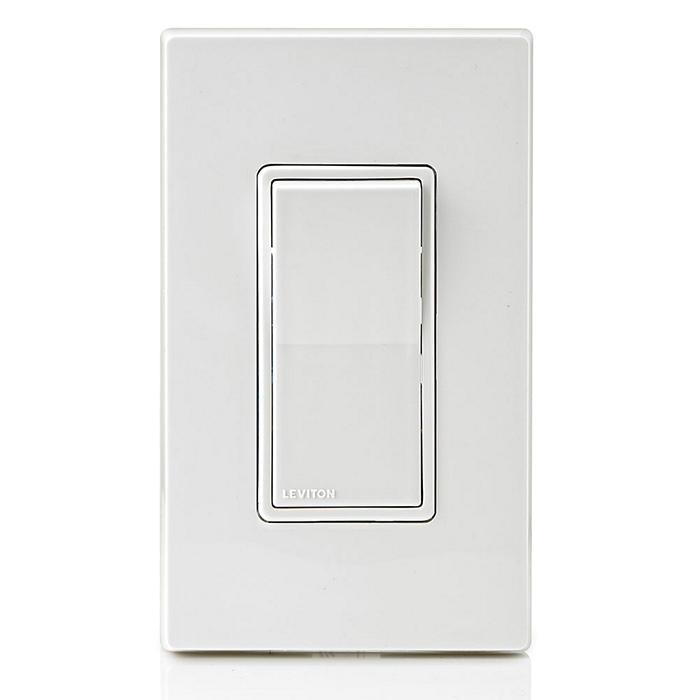

Leviton® 5601-2W Rocker Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp

Leviton® 5601-2W Rocker Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp

  • Manufacturer: Leviton
  • Brand Name: Leviton®
  • Part#: LFM5601W
  • MPN: 5601-2W
  • UPC: 078477517086
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch, Residential Grade, Grounding - White.

Leviton® Rocker Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp, 1 Poles, Copper Conductor, 14 to 10 AWG Conductor, Quickwire Push-In and Side Terminal, Thermoplastic Housing, Thermoplastic Actuator, White, 4.2 in Height, 1.4 in Width

Actuator Material      :      Thermoplastic
Amperage Rating      :      15 A
Color      :      White
Conductor Size      :      14 to 10 AWG
Conductor Type      :      Copper
Height      :      4.2 in
Housing Material      :      Thermoplastic
Number of Poles      :      1
Power Rating      :      1/2 hp, 2 hp
Terminal Type      :      Quickwire Push-In and Side
Voltage Rating      :      120/277 VAC
Width      :      1.4 in
  • CONVENIENT - Quiet switch controls load from a single location
  • DURABLE - Impact-resistant thermoplastic nylon construction
  • EASY - Quick wire push-in and side wiring for easy installation
  • COMPATIBLE - For use with Leviton Decora wallplates
  • Switch frame shields against dust and fits in wallplate to prevent rocker binding
  • Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
  • Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
  • Sturdy construction for long service life
  • Full-rated current capacity with tungsten, fluorescent or resistive loads
  • Complements every decor
  • Limited 2-year warranty
  • NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
