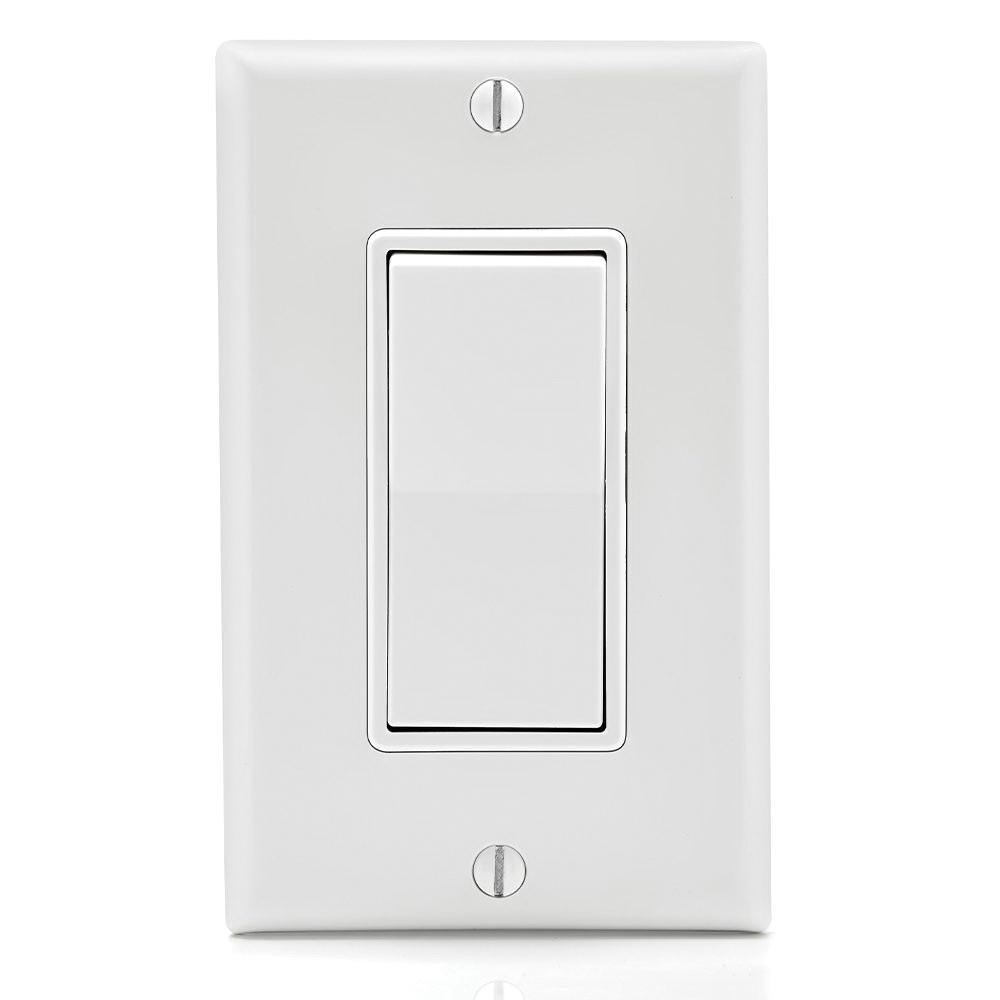

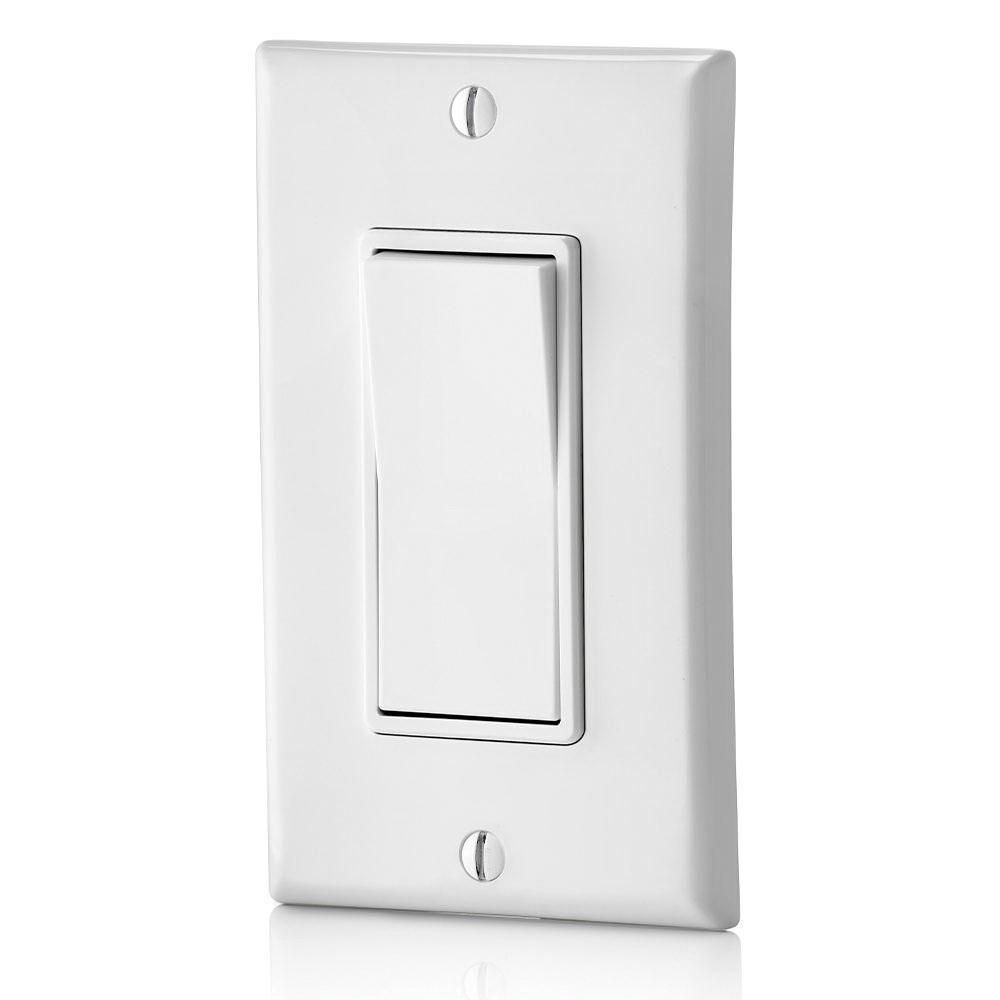

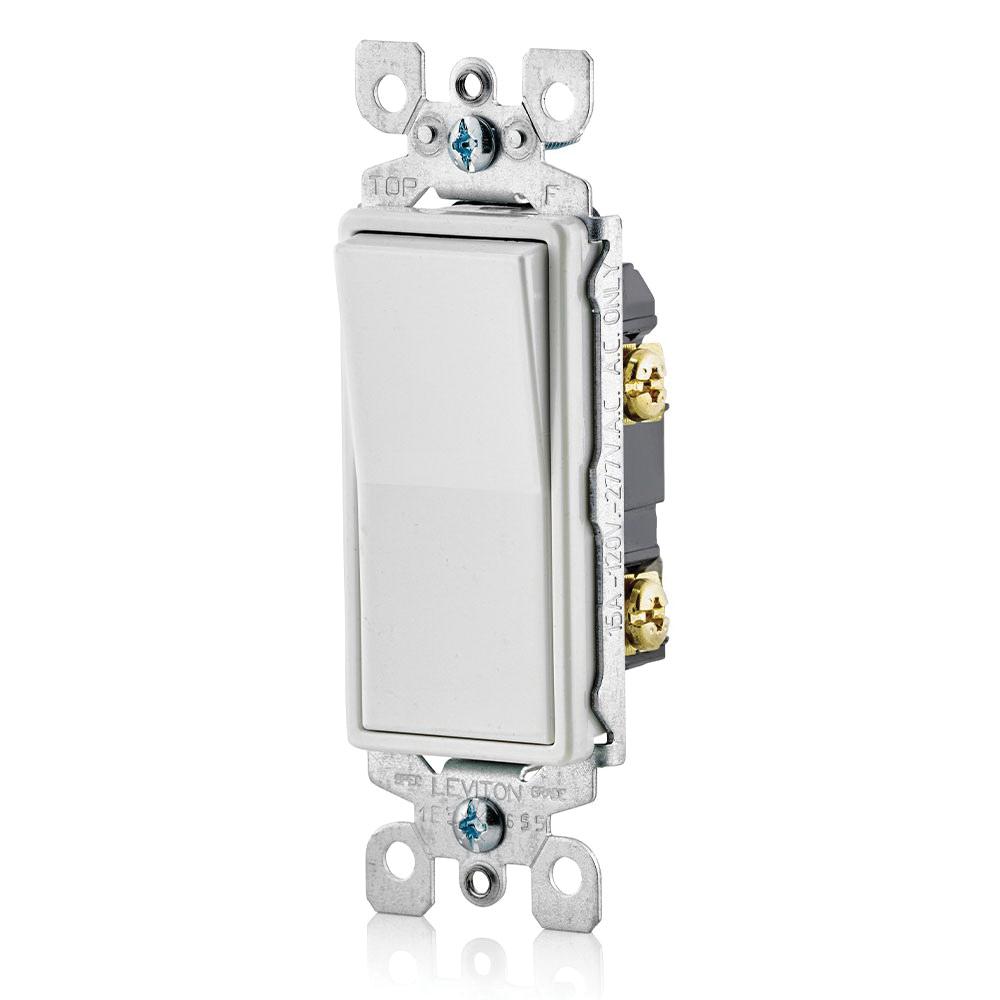

Decora® 5601-A Rocker Switch, 120/277 VAC, 15 A, 2 hp
- Manufacturer: Leviton
- Brand Name: Decora®
- Part#: LFM5601A
- MPN: 5601-A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Decora® Rocker Switch, 120/277 VAC, 15 A, 2 hp, 1 Pole, Rocker Actuator, Wallplate Mount, Quick Wire Push-In Wired, Side Wired Terminal, Thermoplastic Housing, Almond, -40 to 120 deg C, 4.2 in Height, 1.399 in Width, 1.453 in D
| Actuator Type | : | Rocker |
| Amperage Rating | : | 15 A |
| Color | : | Almond |
| Depth | : | 1.453 in |
| Height | : | 4.2 in |
| Housing Material | : | Thermoplastic |
| Mounting Type | : | Wallplate |
| Number of Poles | : | 1 |
| Power Rating | : | 2 hp |
| Temperature Rating | : | -40 to 120 deg C |
| Terminal Type | : | Quick Wire Push-In Wired, Side Wired |
| Voltage Rating | : | 120/277 VAC |
| Width | : | 1.399 in |
