Decora® T5825-W LFMT5825W
  1. pin-int

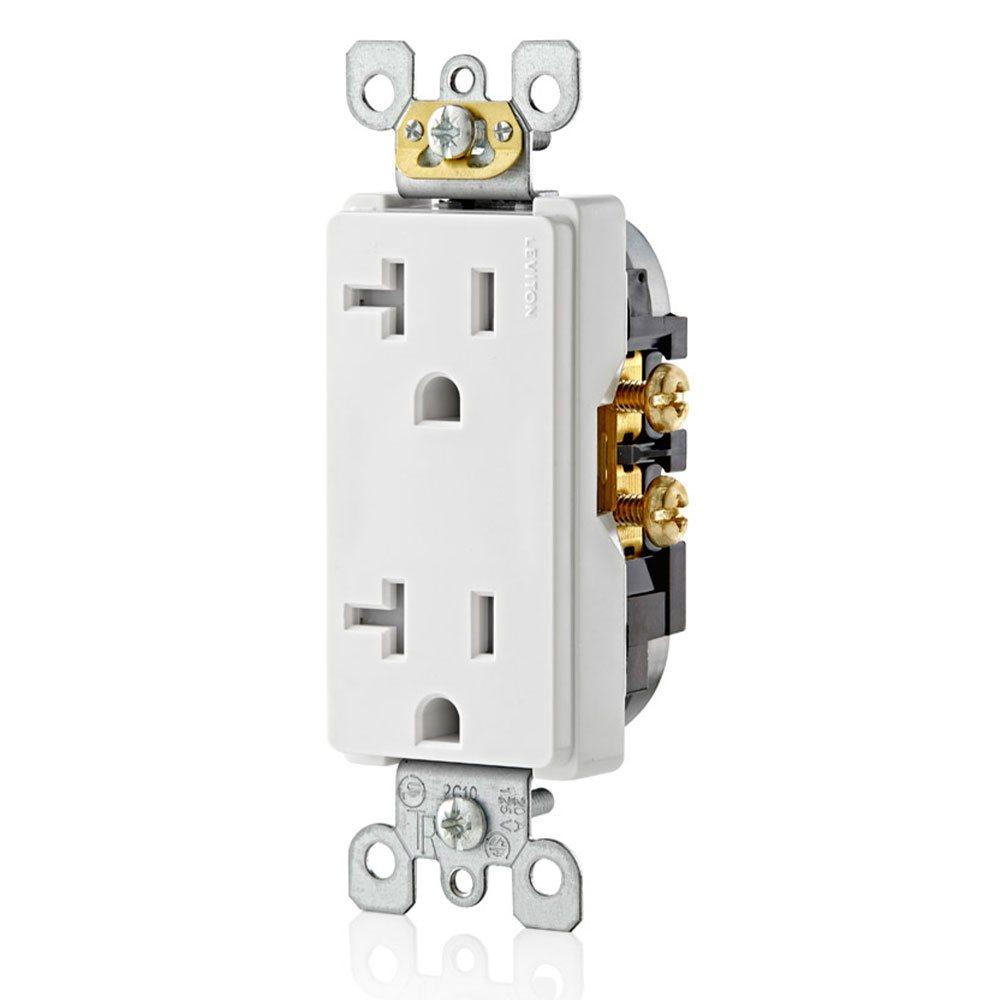

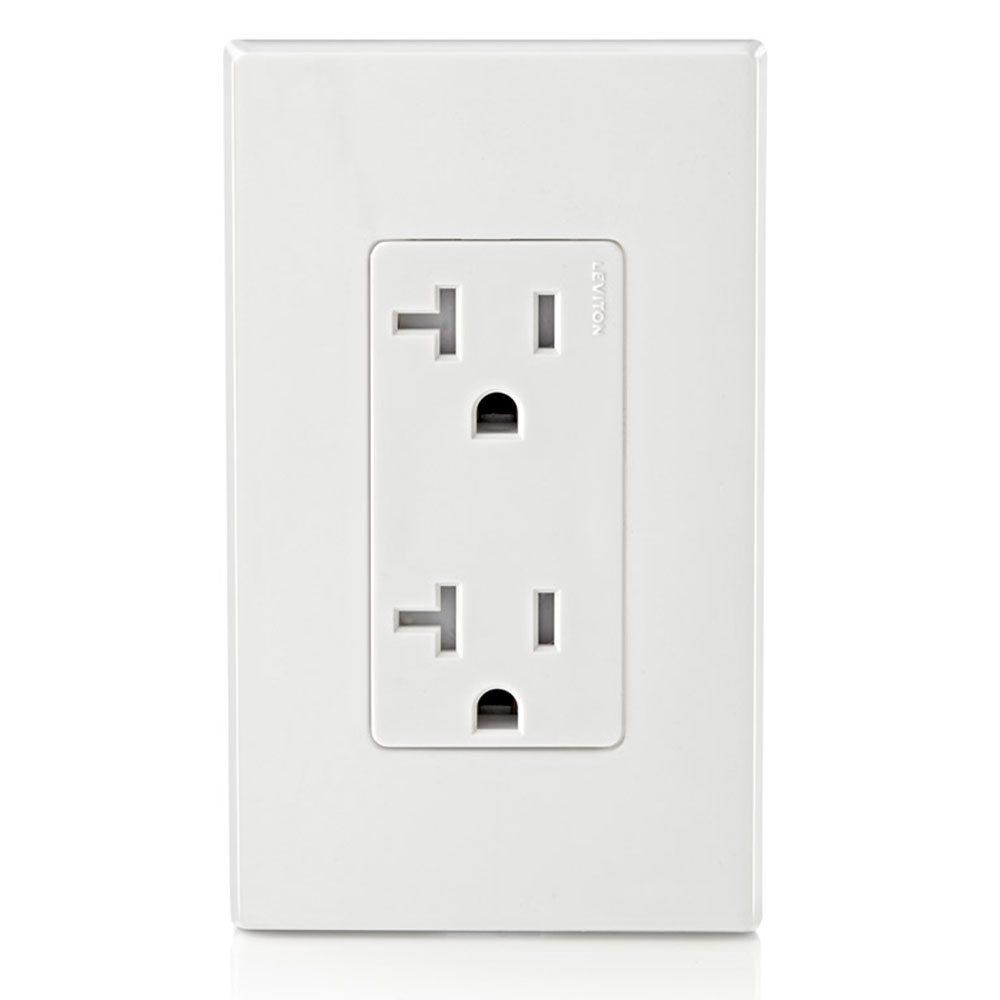

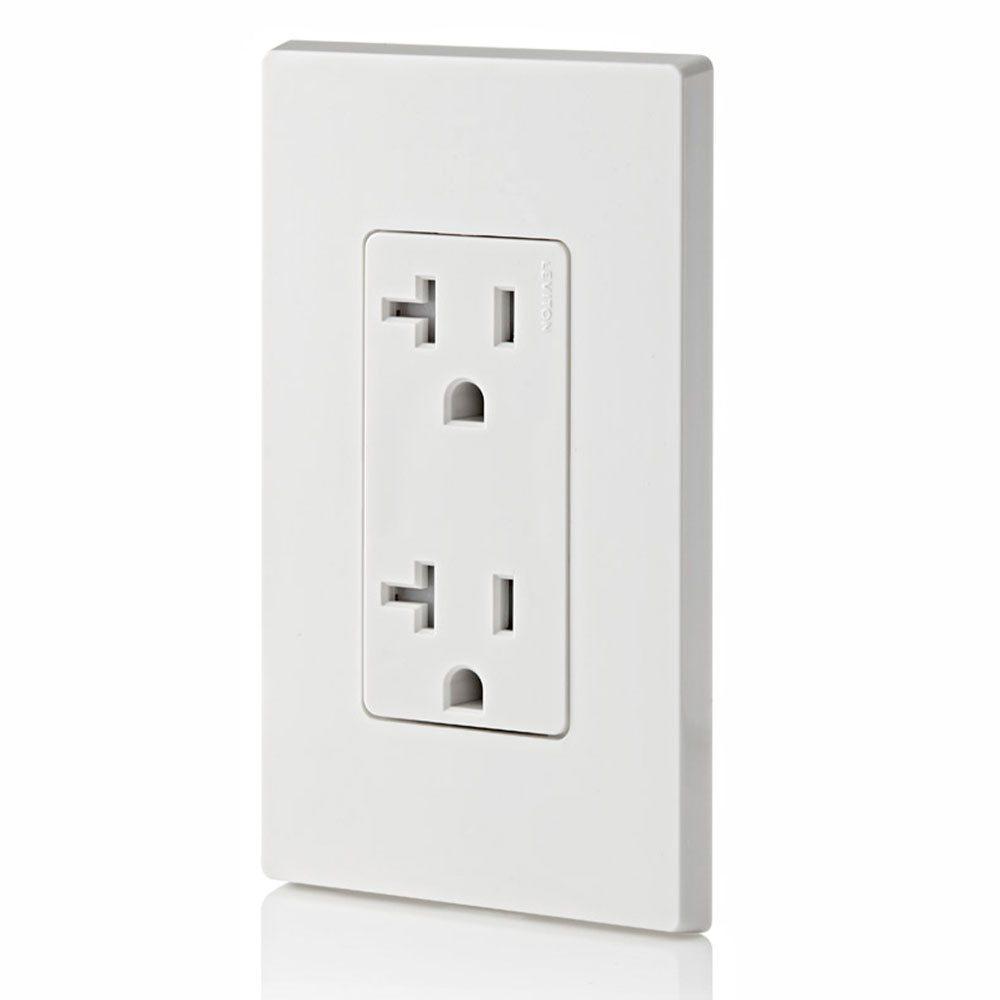

Decora® T5825-W Receptacle, 125 VAC, 20 A, 2 -Pole, 3 -Wire, White

Decora® T5825-W Receptacle, 125 VAC, 20 A, 2 -Pole, 3 -Wire, White

  • Manufacturer: Leviton
  • Brand Name: Decora®
  • Part#: LFMT5825W
  • MPN: T5825-W
  • UPC: 078477450352
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Leviton® 's Decora® duplex receptacles are designed for a chic appearance, quick installation and durability. The impact-resistant thermoplastic design allows for a long service life and high-performance in homes, offices, schools and other settings. It also coordinates beautifully with Leviton® 's complete line of Decora® devices.

Decora® Receptacle, 125 VAC, 20 A, 2 Pole, 3 Wires, Residential Grade, NEMA 5-20R, Self-Grounding Grounding, Side Wired Terminal, Thermoplastic Housing, Steel Strap, White, 4.2 in Length, 1.35 in Width, 1.18 in Height

Amperage Rating      :      20 A
Color      :      White
Grade      :      Residential
Grounding      :      Self-Grounding
Height      :      1.18 in
Housing Material      :      Thermoplastic
Length      :      4.2 in
NEMA Rating      :      NEMA 5-20R
Number of Poles      :      2
Number of Wires      :      3
Strap Material      :      Steel
Terminal Type      :      Side Wired
Voltage Rating      :      125 VAC
Width      :      1.35 in
  • Shutter mechanism inside the receptacle blocks access to the contacts unless a two or three-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
  • TR symbol on the strap or body of device meets NEC requirement
  • Selection includes residential, commercial, hospital and industrial-grade receptacles
  • Heavy-duty construction offers long, trouble-free service life
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Decora_T5325_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Decora_T5825_W_Instruction_Installation_Manual.pdf
  • linkVideo Link https://youtu.be/n7pL7MUWMb4
