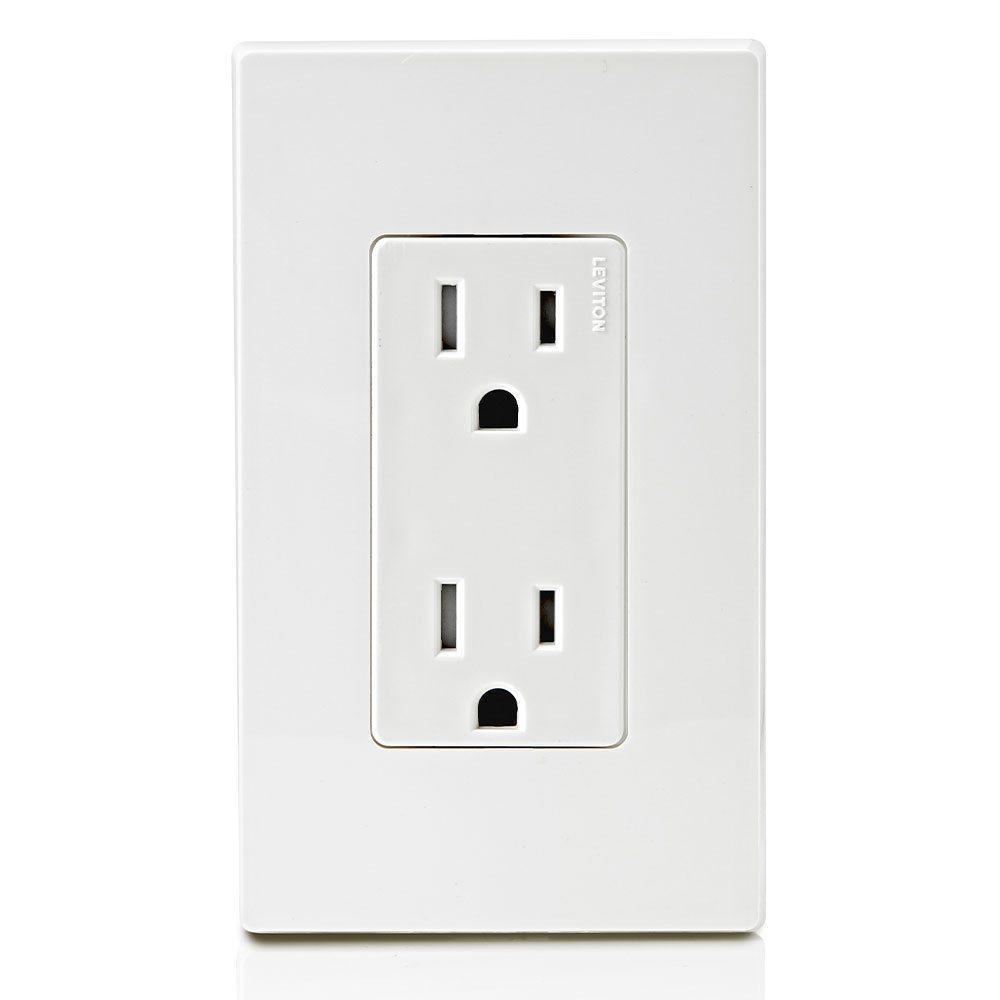

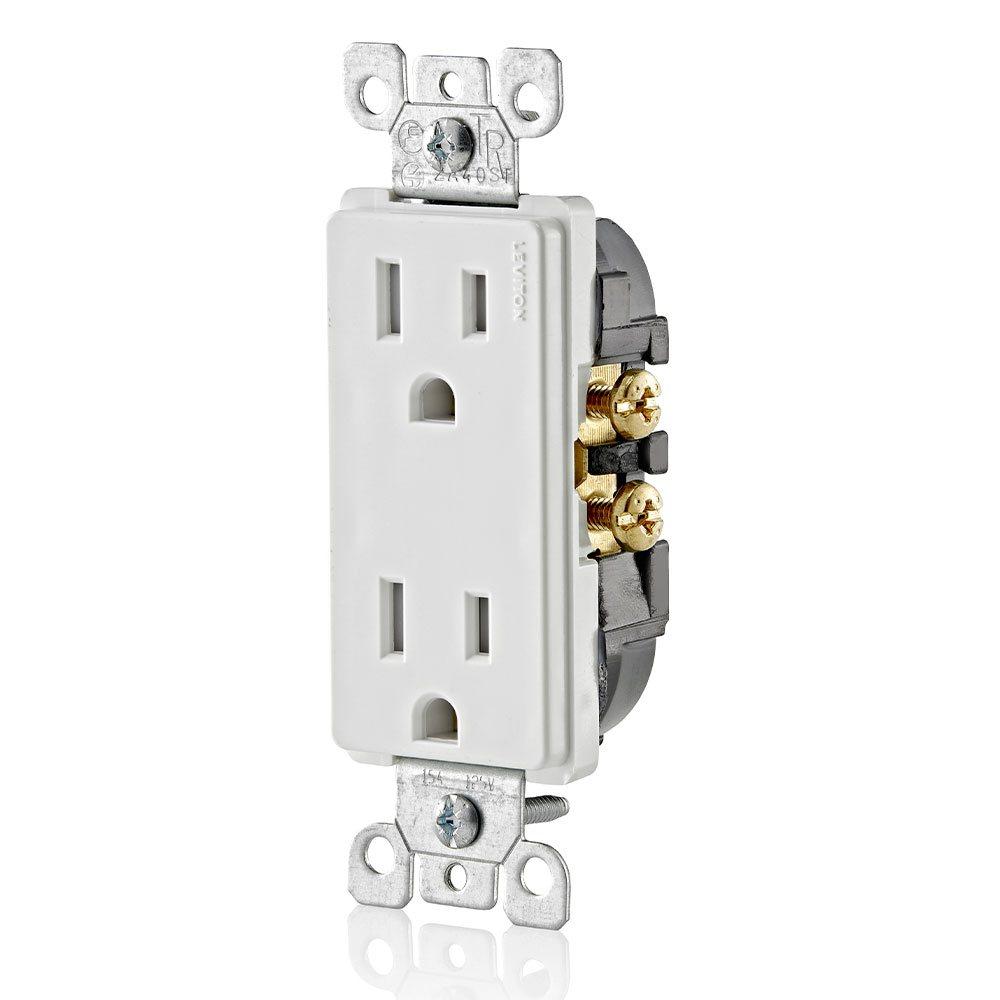

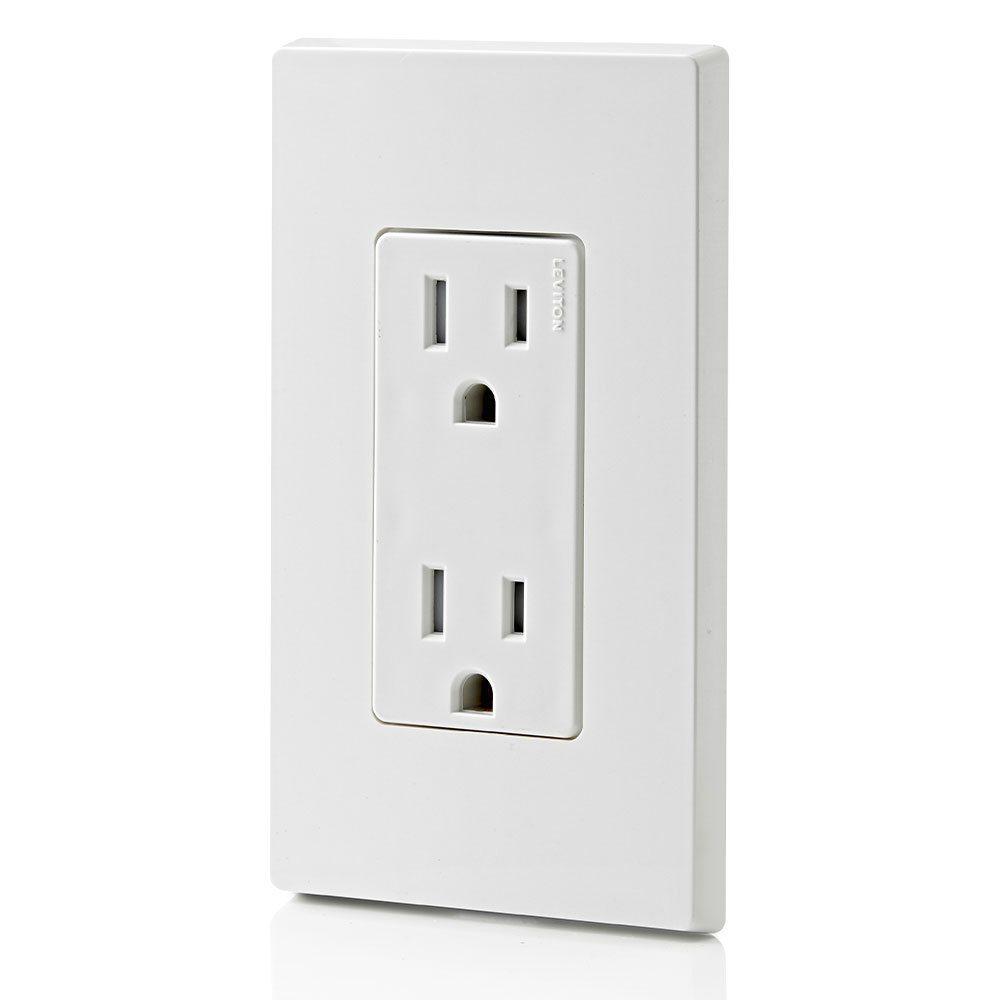

Decora® T5325-W Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 -Pole, 3 -Wire, White, NEMA 5-15R
- Manufacturer: Leviton
- Brand Name: Decora®
- Part#: LFMT5325W
- MPN: T5325-W
- UPC: 078477381625
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Child safety is a priority at Leviton® and that's why we offer our entire line of receptacles in Tamper-Resistant (TR) models. The National Electrical Code® requires TR receptacles in new or renovated housing, childcare facilities, guest rooms and suites, and when replacing existing receptacles in required locations. TR devices have a shutter mechanism inside the receptacle that blocks access to the contacts from most foreign objects. Leviton® leads the way in safety advances with a wide range of tamper-resistant devices in residential, commercial, hospital and industrial-grades.
Decora® Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Commercial Grade, NEMA Rating: NEMA 5-15R, Grounding Grounding, Quick Wire Push-In Wired, Side Wired Terminal, Copper, Solid Conductor, 14 AWG Conductor, Screw Mounting, Thermoplastic Nylon Housing, Steel Strap, White, 0.76 in Length, 1.33 in Width, 4.2 in Height
| Amperage Rating | : | 15 A |
| Color | : | White |
| Conductor Size | : | 14 AWG |
| Conductor Type | : | Copper, Solid |
| Grade | : | Commercial |
| Grounding | : | Grounding |
| Height | : | 4.2 in |
| Housing Material | : | Thermoplastic Nylon |
| Length | : | 0.76 in |
| Mounting Type | : | Screw |
| NEMA Rating | : | NEMA 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Strap Material | : | Steel |
| Terminal Type | : | Quick Wire Push-In Wired, Side Wired |
| Voltage Rating | : | 125 VAC |
| Width | : | 1.33 in |
- Safe tamper-resistant offers protection from electrical shocks
- Durable - impact-resistant thermoplastic nylon construction
- Easy quick wire push-in and side wiring for easy installation
- Convenient - TR symbol on strap assures they meet the latest NEC requirements
- Shutter mechanism inside the receptacle blocks access to the contacts unless a two or three-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
- Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
- Shallow depth for maximum wiring room
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Double-wipe power contacts for reliable conductivity and plug retention
