Decora® 5325-W LFM5325W
  1. pin-int

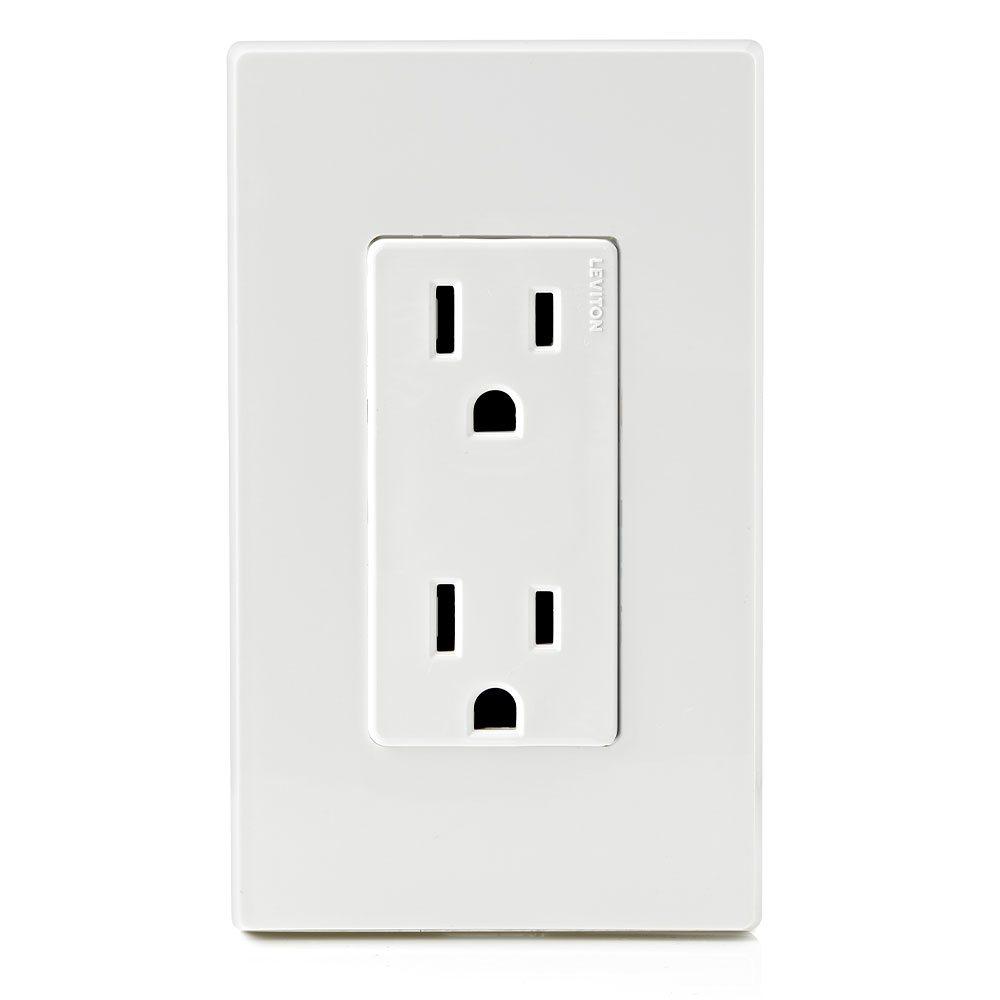

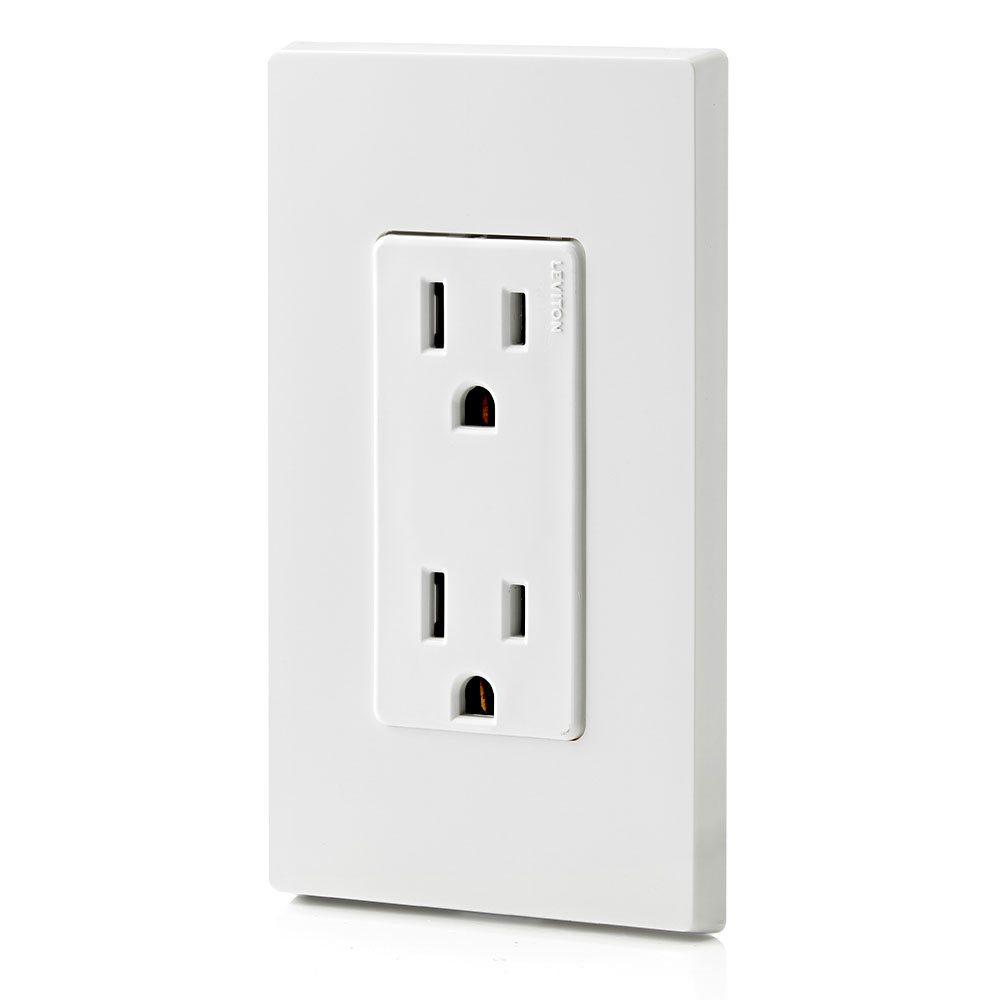

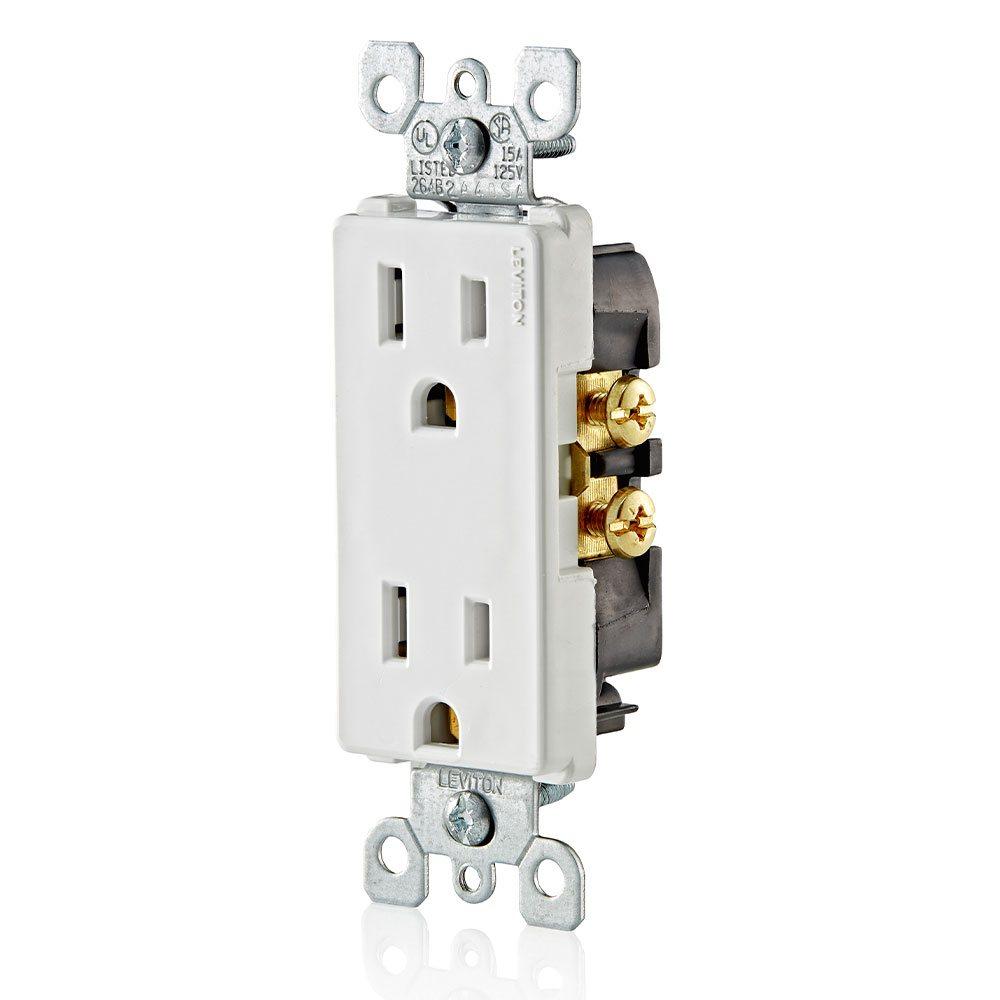

Decora® 5325-W Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 -Pole, 3 -Wire, White, NEMA 5-15R

Decora® 5325-W Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 -Pole, 3 -Wire, White, NEMA 5-15R

  • Manufacturer: Leviton
  • Brand Name: Decora®
  • Part#: LFM5325W
  • MPN: 5325-W
  • UPC: 078477233306
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Decora® Straight Blade Duplex Receptacle, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, 1 ph Phase, 1 Gangs, Residential Grade, NEMA Rating: NEMA 5-15R, Non-Indicating Indicators, Grounding Grounding, Quick Wire Push-In Wired, Side Wired Terminal, Copper, Solid Conductor, 14 to 12 AWG Conductor, Flush, Screw Mounting, Thermoplastic Housing, Steel Strap, White, -40 to 60 deg C, 1.14 in Length, 1.31 in Width, 4.06 in Height, Additional Information: 14 to 18 in-lb Torque, Thermoplastic Face

Additional Information      :      14 to 18 in-lb Torque, Thermoplastic Face
Amperage Rating      :      15 A
Color      :      White
Conductor Size      :      14 to 12 AWG
Conductor Type      :      Copper, Solid
Grade      :      Residential
Grounding      :      Grounding
HP Rating      :      1/2 hp
Height      :      4.06 in
Housing Material      :      Thermoplastic
Length      :      1.14 in
Mounting Type      :      Flush, Screw
NEMA Rating      :      NEMA 5-15R
Number of Gangs      :      1
Number of Poles      :      2
Number of Wires      :      3
Phase      :      1 ph
Strap Material      :      Steel
Temperature Rating      :      -40 to 60 deg C
Terminal Type      :      Quick Wire Push-In Wired, Side Wired
Type of Indicators      :      Non-Indicating
Voltage Rating      :      125 VAC
Width      :      1.31 in
  • Easy quick wire push-in and side wiring for easy installation
  • Durable - impact-resistant thermoplastic nylon construction
  • Convenient - shallow depth for maximum wiring room
  • Compatible - for use with Leviton® Decora® wall plates
  • Quickwire push-in terminals accept #14 AWG solid copper wire only
  • Shallow depth for maximum wiring room
  • Double-wipe power contacts for reliable conductivity and plug retention
  • Heavy-gauge zinc-plated steel mounting strap
  • Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
