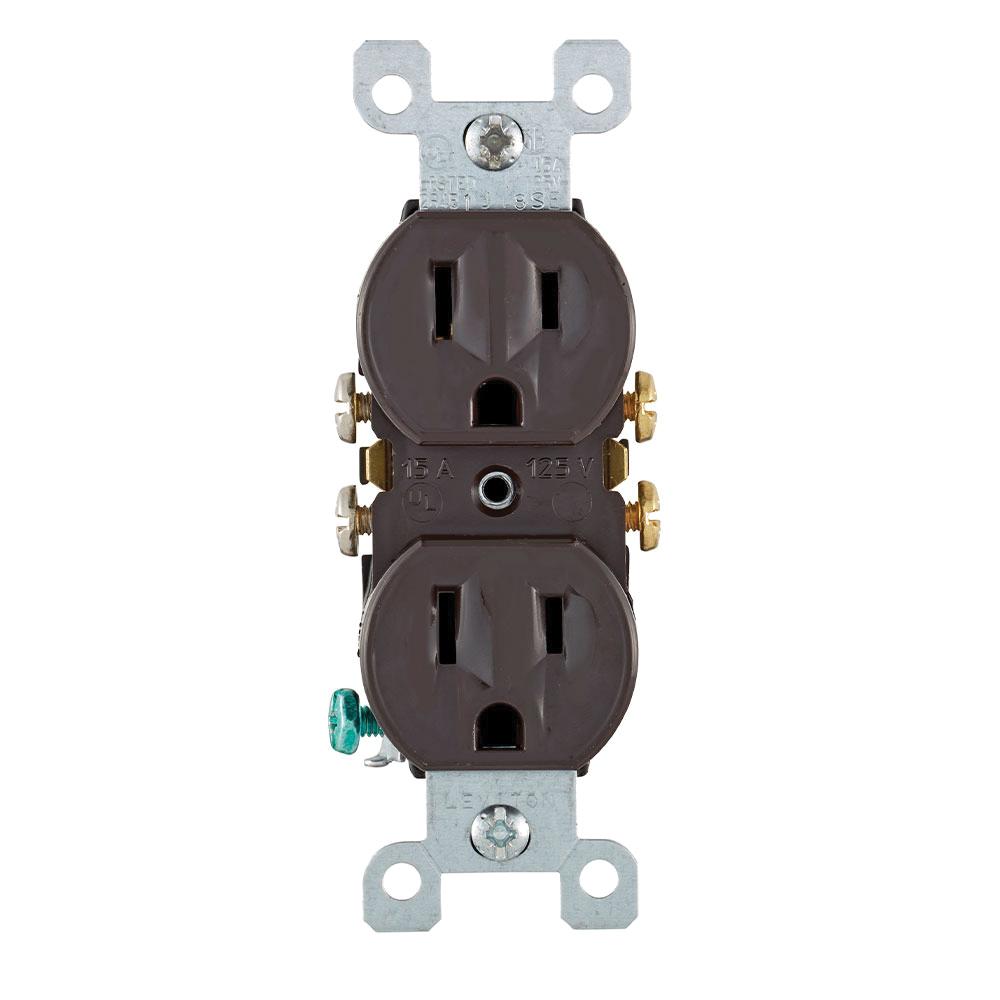

Leviton® 5320-CP Duplex Receptacle With Ears, 125 V, 15 A, 2 -Pole, 3 -Wire, Brown
- Manufacturer: Leviton
- Brand Name: Leviton®
- Part#: LFM5320CP
- MPN: 5320-CP
- UPC: 078477151303
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Leviton's comprehensive residential grade receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.
Leviton® Duplex Receptacle, 125 V, 15 A, 2 Pole, 3 Wires, NEMA 5-15R, Grounding Grounding, Push-In Wired, Side Wired Terminal, Thermoplastic Housing, Brown, 1.33 in Length, 0.94 in Width, 4.2 in Height
| Amperage Rating | : | 15 A |
| Color | : | Brown |
| Grounding | : | Grounding |
| Height | : | 4.2 in |
| Housing Material | : | Thermoplastic |
| Length | : | 1.33 in |
| NEMA Rating | : | NEMA 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Terminal Type | : | Push-In Wired, Side Wired |
| Voltage Rating | : | 125 V |
| Width | : | 0.94 in |
- All screws backed out, steel strap
- Two years warranty
Instruction/Installation Manual
