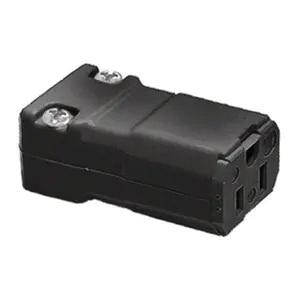

HUBBELL® Valise® Series HBL5969VBLK Straight Blade Connector, 2.68 in L, 15 A, 125 V, 2 -Pole, Brass Contact, Black
- Manufacturer: Hubbell
- Brand Name: HUBBELL®
- Part#: HFMHBL5969VBLKCN
- MPN: HBL5969VBLK
- UPC: 783585013275
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 125V, 5-15R, Black, Single Pack.
HUBBELL® Straight Blade Connector, Valise® Series, Female Style, 125 V, 15 A, 2 Poles, Brass Contact, Black, 0.66 in Maximum Cable Diameter, IP Rating: IP20, NEMA Rating: NEMA 5-15R, -40 to 75 deg C, 2.68 in Length, Additional Information: 2.68 in H x 1.32 in W Dimensions, 3-Wire
| Additional Information | : | 2.68 in H x 1.32 in W Dimensions, 3-Wire |
| Amperage Rating | : | 15 A |
| Color | : | Black |
| Contact Material | : | Brass |
| IP Rating | : | IP20 |
| Length | : | 2.68 in |
| Maximum Cable Diameter | : | 0.66 in |
| NEMA Rating | : | NEMA 5-15R |
| Number of Poles | : | 2 |
| Series | : | Valise�� Series |
| Style | : | Female |
| Temperature Rating | : | -40 to 75 deg C |
| Voltage Rating | : | 125 V |
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
