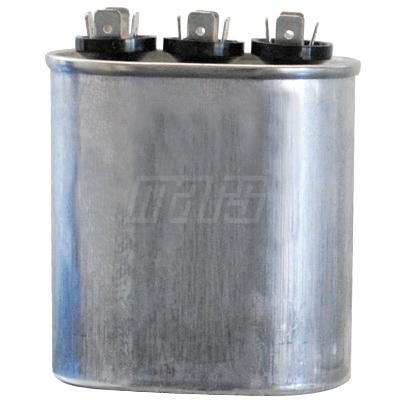

Jard® by Mars® 12838 Motor Run Capacitor, MFD Rating: 50+5 uF, 440 VAC, Oval, 4-1/4 in H, 2.806 in W, 1.81 in D
- Manufacturer: RectorSeal
- Brand Name: Jard® by Mars®
- Part#: MRR12838
- MPN: 12838
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Dual section run capacitors are used primarily to serve two microfarad applications. They can, however, by making various combinations of parallel connections, be used to obtain many other microfarad ratings.
Jard® by Mars® Motor Run Capacitor, 50+5 uF MFD Rating, 440 VAC, 50/60 Hz, Oval Shape, 4 Terminals, 3-3/4 in Case Height, -40 to 70 deg C, Aluminum Case, 4-1/4 in Height, 2.806 in Width, 1.81 in D
| Case Height | : | 3-3/4 in |
| Case Material | : | Aluminum |
| Depth | : | 1.81 in |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 4-1/4 in |
| MFD Rating | : | 50+5 uF |
| Number of Terminals | : | 4 |
| Shape | : | Oval |
| Temperature Rating | : | -40 to 70 deg C |
| Voltage Rating | : | 440 VAC |
| Width | : | 2.806 in |
- Offers the widest selection of ratings in the industry
- Non-PCB capacitors, physical interrupter makes our capacitors safe
- Contractor acceptance
