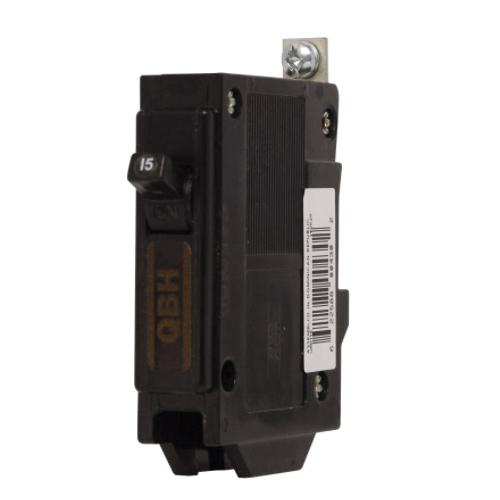

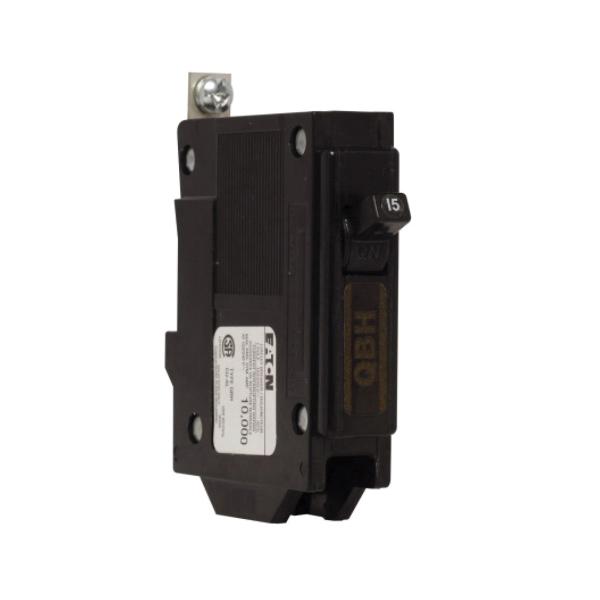

EATON QBH15 Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 1-Pole, Thermal Magnetic Trip
- Manufacturer: Eaton
- Brand Name: EATON
- Part#: BFMQBH15
- MPN: QBH15
- UPC: 622588004302
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
EATON Circuit Breaker, Model: QBH, 15 A, 120 VAC, 10 kA Interrupt Rating, 1 Poles, Bolt-On Connection, Thermal Magnetic Trip, Lug Terminal, Handle Actuator, 12 to 10 AWG Aluminum, 14 to 10 AWG Copper Wire, Silver Tungsten Terminal, 1 in Width, 2-3/8 in Length, 2.9 in Height
| Actuator Type | : | Handle |
| Amperage Rating | : | 15 A |
| Connection Type | : | Bolt-On |
| Height | : | 2.9 in |
| Interrupt Rating | : | 10 kA |
| Length | : | 2-3/8 in |
| Model | : | QBH |
| Number of Poles | : | 1 |
| Terminal Material | : | Silver Tungsten |
| Terminal Type | : | Lug |
| Trip Type | : | Thermal Magnetic |
| Voltage Rating | : | 120 VAC |
| Width | : | 1 in |
| Wire Size | : | 12 to 10 AWG Aluminum, 14 to 10 AWG Copper |
- 3/4 in form factor
- Designed to fit the classic CEB, Sylvania or Commander electric design bolt-on load centers
- Suitable for loadcentres, lighting and distribution panelboards and meter centers
- Silver tungsten contacts with wiping action to prevent carbon build-up on the contact surface
- Handle provides clear indication of on/off/tripped position
- Quick make, quick break mechanism provides tease-proof operation
- Internal common trip mechanism on two-pole circuit breakers
- Each breaker is electronically calibrated for 40 deg C
- Compression molded housing and handle for durability and service
