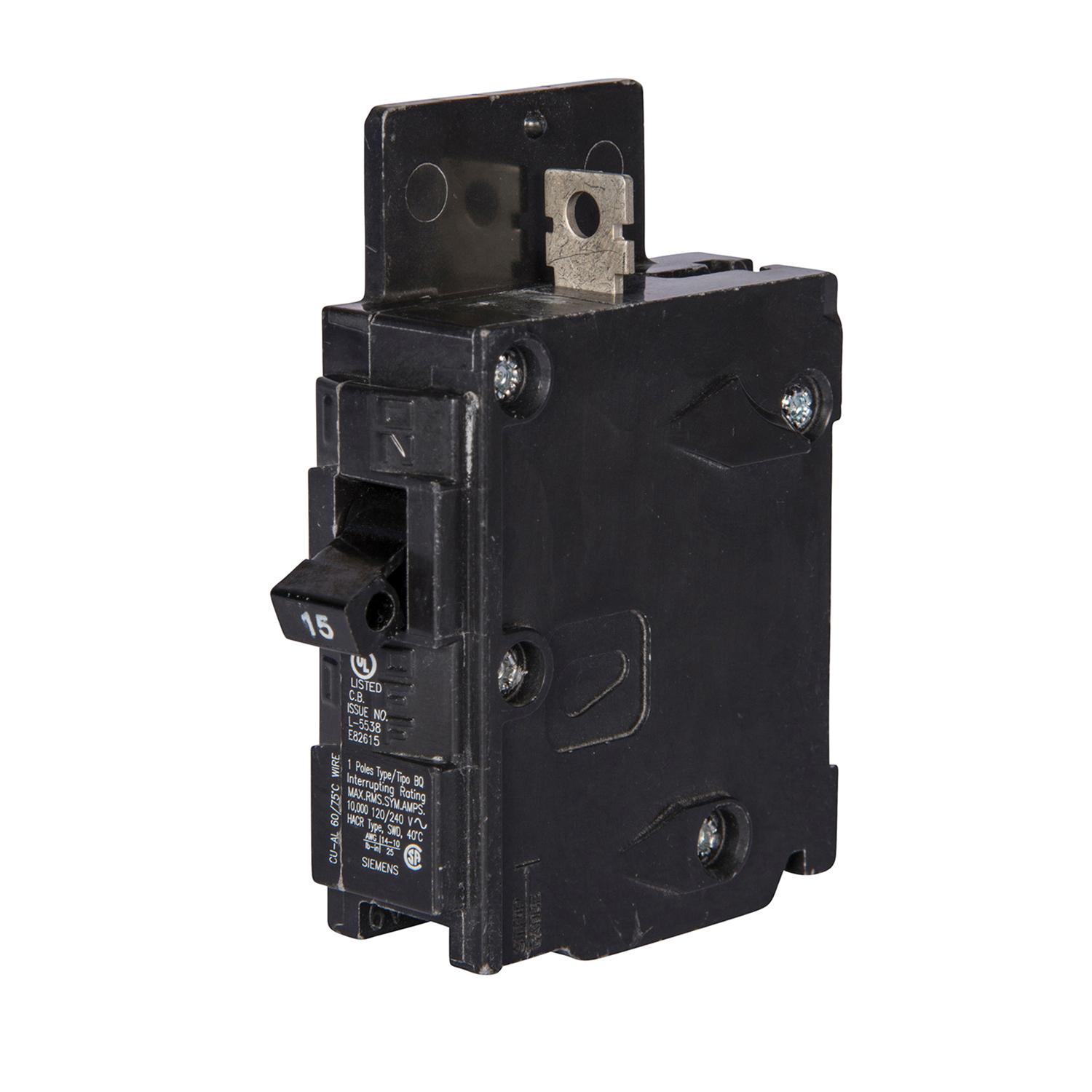

Siemens BQ1B015 Low Voltage Molded Case Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 1 -Pole
- Manufacturer: Siemens
- Brand Name: Siemens
- Part#: BFMBQ1B015
- MPN: BQ1B015
- UPC: 783643102309
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Siemens Low Voltage Molded Case Circuit Breaker, 15 A, 120 VAC, 50/60 Hz, 10 kA Interrupt Rating, 1 Poles, 1 ph Phase, Bolt-On Connection, BQ Frame, Thermal Magnetic Trip, Load Side Lug Terminal, Toggle Actuator, 12 to 10 AWG, 14 to 10 AWG Wire, 40 deg C, 3 in Width, 1 in Length, 4 in Height
| Actuator Type | : | Toggle |
| Amperage Rating | : | 15 A |
| Connection Type | : | Bolt-On |
| Frame Type | : | BQ |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 4 in |
| Interrupt Rating | : | 10 kA |
| Length | : | 1 in |
| Number of Poles | : | 1 |
| Phase | : | 1 ph |
| Temperature Rating | : | 40 deg C |
| Terminal Type | : | Load Side Lug |
| Trip Type | : | Thermal Magnetic |
| Voltage Rating | : | 120 VAC |
| Width | : | 3 in |
| Wire Size | : | 12 to 10 AWG, 14 to 10 AWG |
