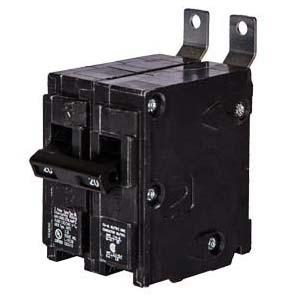

Siemens B230 Low Voltage Molded Case Circuit Breaker With Insta-Wire, 120/240 VAC, 30 A, 10 kA Interrupt, 2-Pole
- Manufacturer: Siemens
- Brand Name: Siemens
- Part#: BFMB230
- MPN: B230
- UPC: 783643263550
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Siemens Low Voltage Molded Case Circuit Breaker, 30 A, 120/240 VAC, 50/60 Hz, 10 kA Interrupt Rating, 2 Poles, 1 ph Phase, Bolt-On Connection, BL Frame, Thermal Magnetic Trip, Load Side Lug Terminal, Toggle Actuator, 14 to 6 AWG, 12 to 6 AWG Wire, Panel Mounting, 40 deg C, 3 in Width, 2 in Length, 3 in Height
| Actuator Type | : | Toggle |
| Amperage Rating | : | 30 A |
| Connection Type | : | Bolt-On |
| Frame Type | : | BL |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 3 in |
| Interrupt Rating | : | 10 kA |
| Length | : | 2 in |
| Mounting Type | : | Panel |
| Number of Poles | : | 2 |
| Phase | : | 1 ph |
| Temperature Rating | : | 40 deg C |
| Terminal Type | : | Load Side Lug |
| Trip Type | : | Thermal Magnetic |
| Voltage Rating | : | 120/240 VAC |
| Width | : | 3 in |
| Wire Size | : | 14 to 6 AWG, 12 to 6 AWG |
