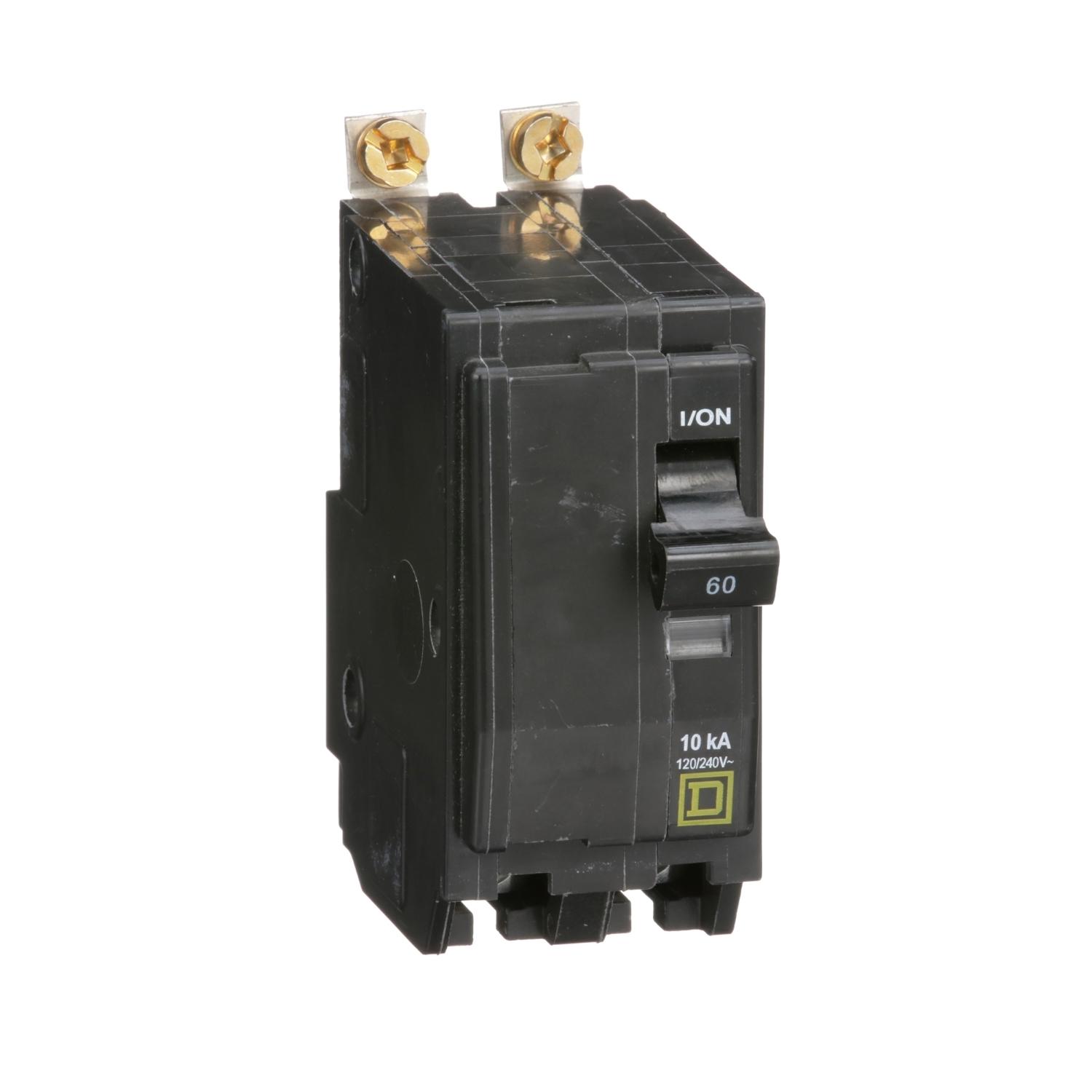

Square D QOB™ Series QOB260 Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, 2 -Pole, Thermal Magnetic Trip
- Manufacturer: Schneider Electric
- Brand Name: Square D
- Part#: BFMQOB260
- MPN: QOB260
- UPC: 785901417026
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Square D Circuit Breaker, QOB™ Series, 60 A, 120/240 VAC, 50/60 Hz, 10 kA Interrupt Rating, 2 Poles, 1 ph Phase, Box Lug Connection, Thermal Magnetic Trip, Paddle Actuator, 8 to 2 AWG Aluminum/Copper Wire, Bolt-On Mounting, 40 deg C, 1-1/2 in Width, 2.91 in Length, 3.11 in Height
| Actuator Type | : | Paddle |
| Amperage Rating | : | 60 A |
| Connection Type | : | Box Lug |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 3.11 in |
| Interrupt Rating | : | 10 kA |
| Length | : | 2.91 in |
| Mounting Type | : | Bolt-On |
| Number of Poles | : | 2 |
| Phase | : | 1 ph |
| Series | : | QOB��� Series |
| Temperature Rating | : | 40 deg C |
| Trip Type | : | Thermal Magnetic |
| Voltage Rating | : | 120/240 VAC |
| Width | : | 1-1/2 in |
| Wire Size | : | 8 to 2 AWG Aluminum/Copper |
