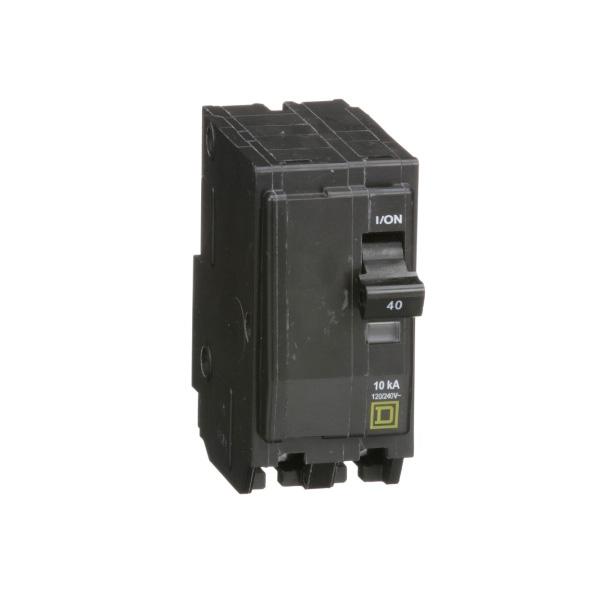

Square D QO® QO™ Series QO240 Miniature Circuit Breaker, 120/240 VAC/48 VDC, 40 A, 5 kA, 10 kA Interrupt, 2 -Pole
- Manufacturer: Schneider Electric
- Brand Name: Square D
- Part#: BFMQO240
- MPN: QO240
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Square D QO® Miniature Circuit Breaker, QO™ Series, 40 A, 120/240 VAC/48 VDC, 5 kA, 10 kA Interrupt Rating, 2 Poles, 1 ph Phase, Box Lug Connection, Common Trip, Paddle Actuator, 8 to 2 AWG Wire, Plug-In Mounting, 40 deg C, 1-1/2 in Width, 2.91 in Length, 3.11 in Height
| Actuator Type | : | Paddle |
| Amperage Rating | : | 40 A |
| Connection Type | : | Box Lug |
| Height | : | 3.11 in |
| Interrupt Rating | : | 5 kA, 10 kA |
| Length | : | 2.91 in |
| Mounting Type | : | Plug-In |
| Number of Poles | : | 2 |
| Phase | : | 1 ph |
| Series | : | QO��� Series |
| Temperature Rating | : | 40 deg C |
| Trip Type | : | Common |
| Voltage Rating | : | 120/240 VAC/48 VDC |
| Width | : | 1-1/2 in |
| Wire Size | : | 8 to 2 AWG |
