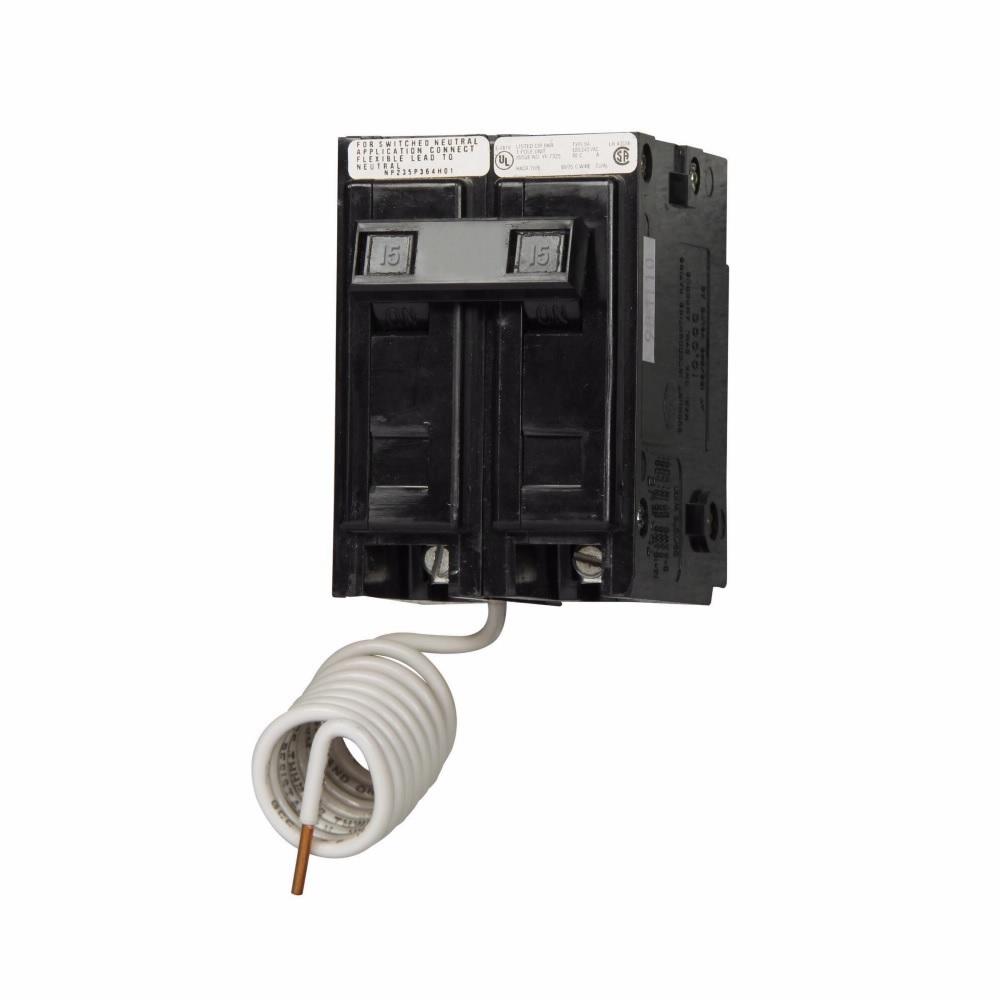

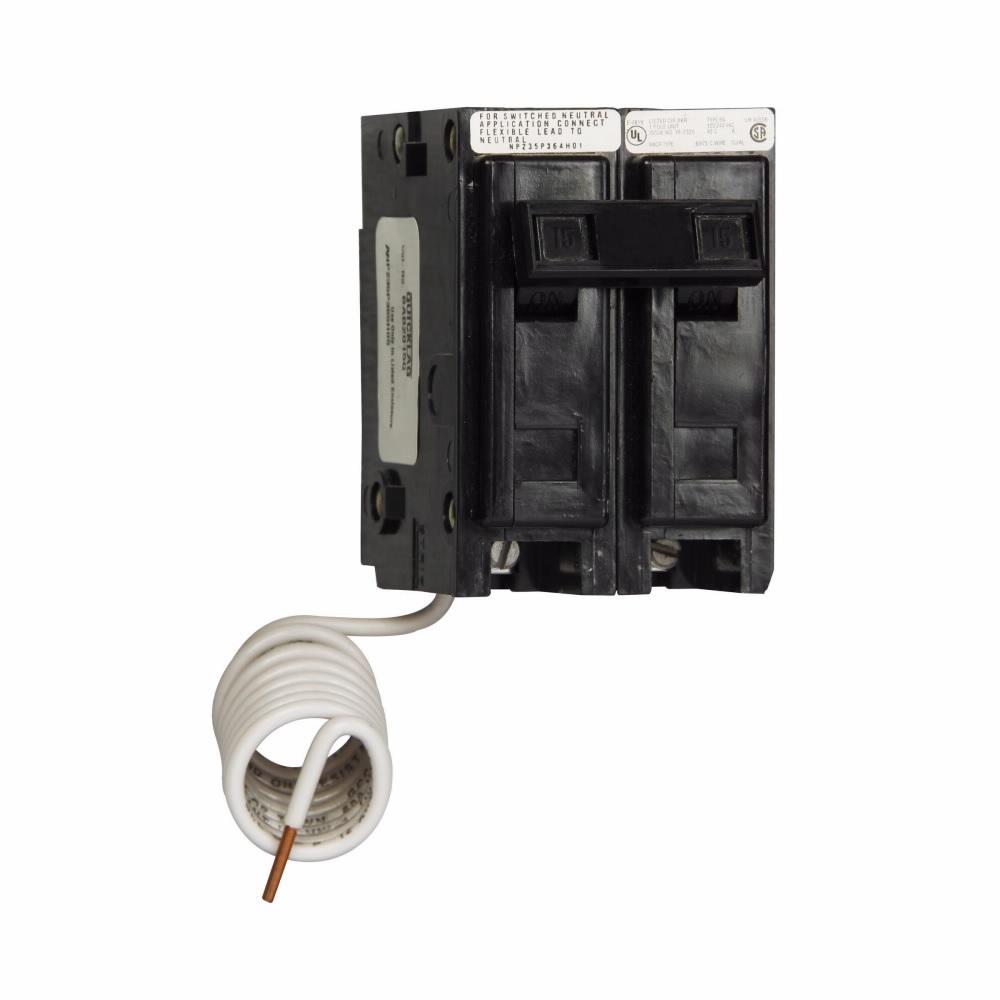

Cutler-Hammer BAB2015 Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 -Pole
- Manufacturer: Eaton
- Brand Name: Cutler-Hammer
- Part#: BFMBAB2015
- MPN: BAB2015
- UPC: 786679302156
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Cutler-Hammer Miniature Circuit Breaker, 15 A, 120/240 VAC, 50/60 Hz, 10 kA Interrupt Rating, 2 Poles, 1 ph Phase, Non-Interchangeable, Thermal Magnetic Trip, Box Lug Terminal, 14 to 4 AWG Wire, Bolt-On Mounting, 40 deg C, 2.1 in Width, 3.8 in Length, 4.8 in Height
| Amperage Rating | : | 15 A |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 4.8 in |
| Interrupt Rating | : | 10 kA |
| Length | : | 3.8 in |
| Mounting Type | : | Bolt-On |
| Number of Poles | : | 2 |
| Phase | : | 1 ph |
| Temperature Rating | : | 40 deg C |
| Terminal Type | : | Box Lug |
| Trip Type | : | Non-Interchangeable, Thermal Magnetic |
| Voltage Rating | : | 120/240 VAC |
| Width | : | 2.1 in |
| Wire Size | : | 14 to 4 AWG |
- Bolt-on mounting switching neutral
