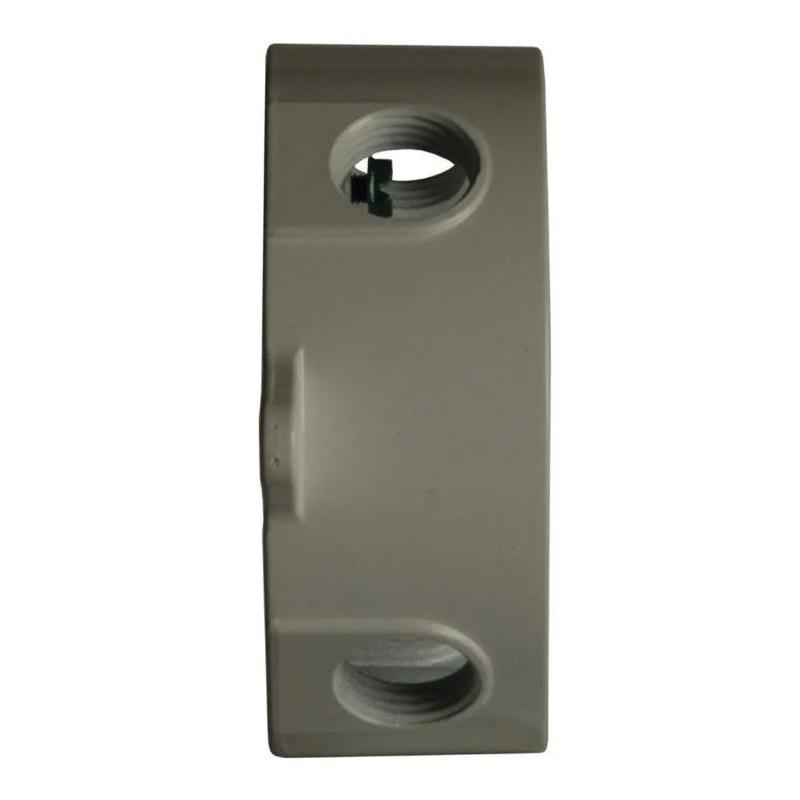

BELL® 5361-0 Weather-Proof Box, 5 -Outlet, Round, 4 in Dia, 5-1/4 in L, 4.203 in W, 1-1/2 in D
- Manufacturer: Hubbell
- Brand Name: BELL®
- Part#: HFM53610
- MPN: 5361-0
- UPC: 050169536100
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
BELL® weather-proof round splice boxes are designed for use as a weather-proof junction box. Bell boxes are for use in branch circuit wiring in wet, damp or dry locations. BELL® round boxes are compatible with BELL® round cluster covers and round lampholder combinations.
BELL® Weather-Proof Box, 5 Outlets, 4 Number of Plugs, 1/2 in Hub, Threaded, 4 in Dia, 5-1/4 in Length, 4.203 in Width, 1-1/2 in D, Round Shape, Die-Cast Construction, NEMA 3R, Ground Screw, Lug Mount, Horizontal, Vertical Mount, 16 cu-in, Aluminum Body, Gray, Powder-Coated
| Body Material | : | Aluminum |
| Capacity | : | 16 cu-in |
| Color | : | Gray |
| Construction | : | Die-Cast |
| Depth | : | 1-1/2 in |
| Diameter | : | 4 in |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Powder-Coated |
| Hub Size | : | 1/2 in |
| Hub Type | : | Threaded |
| Length | : | 5-1/4 in |
| Mounting Orientation | : | Horizontal, Vertical |
| Mounting Type | : | Ground Screw, Lug |
| Number of Outlets | : | 5 |
| Number of Plugs | : | 4 |
| Shape | : | Round |
| Width | : | 4.203 in |
- Rugged die cast aluminum construction
- State of the art powder-coated finish provides maximum weatherability and scratch resistance
- Internal hub threads comply with NEMA requirements and will accept all threaded fittings and threaded conduit
- Ground screw installed
