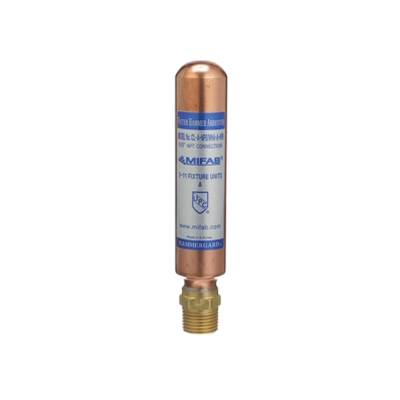

MIFAB® CL-F-NPB Piston Water Hammer Arrestor, 2 in, Threaded, Up to 350 psig, 250 deg F, Brass/Copper, 13 in L

MIFAB® CL Series (specify size) piston operated water hammer arrestor with hard drawn seamless "K" copper body, RYTON PPS piston with double o-rings (Parco # 5778-80) and CDA 360 brass M.P.T. connection. Certified to the A.S.S.E. 1010-1996 and ANSI A112.26.1M Standards.

MIFAB® Piston Water Hammer Arrestor, CL Series, 2 in Connection, Connection Type: Threaded, Up to 350 psig, Contains Lead, Brass/Copper, 250 deg F, 13 in L

• Thick walled, hard drawn "K"copper body.
• Ryton PPS piston with two Parco #5778-80 O-rings and Dow Corning #111 FDA approved silicone lubricant. Ribbed piston design reduces secondary shock and flared piston skirt prevents hard particles suspended in the water supply from contacting the O-rings to provide increased product life.
• Large volume air chamber provides better dampening for superior water hammer arrestor performance.
• Temperature range: Maximum working temperature is 250deg F.
• Operating pressure: Up to 350 PSIG
• Surge pressure: Up to 1,500 PSIG
• No access door is required to service MIFAB's water hammer arrestors.
• Patent # 6,539,976

• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/MIFAB_CLAANPB_Specification_Sheet.pdf
• Warranty Information https://assets.unilogcorp.com/267/ITEM/DOC/MIFAB_A1BP_Warranty.pdf
