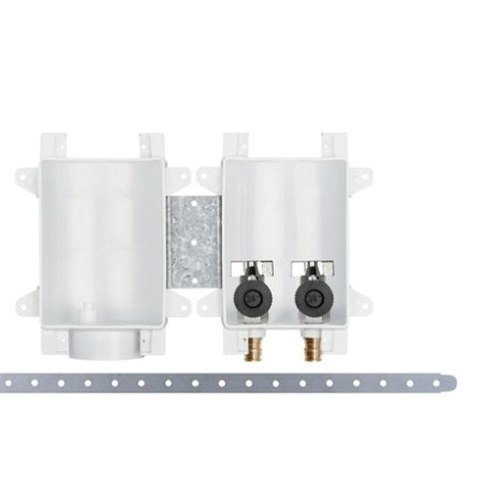

Sioux Chief OxBox™ 696 Series 696-G2303WF Washing Machine Outlet Box With Frame, 1/2 in, PEX, ABS
- Manufacturer: Sioux Chief
- Brand Name: Sioux Chief
- Part#: SIO696-G2303WF
- MPN: 696-G2303WF
- UPC: 739236100290
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Sioux Chief 696 Series OxBox™ outlet box shall be used where necessary in plumbing systems. Unit shall allow for mounting with supply lines from top or bottom, on stud or between-studs. Supply and drain boxes can be connected using U-clip (provided) or separated as desired. Unit shall include plated, 1/4-turn valves with 3/4 in MHT outlets. Valve outlets shall be provided with tamper-resistant test caps. Valve handles on arrester models can be operated together (single throw) or independently. Metal support bracket can be installed into top/bottom tracks of box. Drain box shall have a testable 5/8 in nipple on drain cover.
Sioux Chief OxBox™ Washing Machine Outlet Box With Frame, 696 Series, 1/2 in, PEX Connection, ABS, 200 deg F, 5-1/2 in H x 4 in W x 3-1/2 in D, Domestic/Import: Import, Additional Information: 7-1/4 in H x 11-1/2 in W Frame Size, 150 psig Pressure Rating
| Additional Information | : | 7-1/4 in H x 11-1/2 in W Frame Size, 150 psig Pressure Rating |
| Connection Type | : | PEX |
| Dimensions | : | 5-1/2 in H x 4 in W x 3-1/2 in D |
| Domestic/Import | : | Import |
| Material | : | ABS |
| Series | : | 696 Series |
| Size | : | 1/2 in |
| Temperature Rating | : | 200 deg F |
- Durable ABS boxes with 1/4-turn ball valves
- Mounts securely over stud or between studs
- Separate boxes for supply and drainage for flexible layout
- Test cap in drain box removes easily with pliers
- Included debris covers protect boxes from dust, mud and paint
Specification Sheet
