PPP PRIME-TIME™ Series PT PT-4-5/8 Electronic Trap Priming Assembly, 3/4 x 5/8 in Nominal, FNPT x Compression
- Manufacturer: Precision Plumbing Products
- Brand Name: PPP
- Part#: PPPPT-4-58
- MPN: PT-4-5/8
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

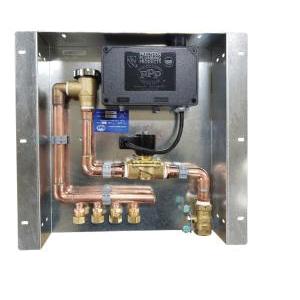

The electronic priming manifold pictured is available in five separate configurations. The model PT-4 offers a four opening manifold capable of priming four separate floor drain traps from a single control unit. Models PT-6 thru PT-12 provide the same features only expanding to a total of twelve floor drains. All manifolds are available in either 1/2 or 5/8 in compression fittings.
PPP Electronic Trap Priming Assembly, PRIME-TIME™ Series, Model: PT, 3/4 x 5/8 in Nominal, FNPT x Compression Connection, 20 to 150 psi, 32 to 125 deg F, 16 in L x 14 in W x 3-3/8 in D, Lead-Free
| Connection Type | : | FNPT x Compression |
| Dimensions | : | 16 in L x 14 in W x 3-3/8 in D |
| Lead-Free/Contains Lead | : | Lead-Free |
| Model | : | PT |
| Nominal Size | : | 3/4 x 5/8 in |
| Pressure Rating | : | 20 to 150 psi |
| Series | : | PRIME-TIME™ Series |
| Temperature Rating | : | 32 to 125 deg F |
- Serves up to 12 drains
- Atmospheric vacuum breaker
- Pre-set 24 hr change
- Manual over ride switch
- 120/220 V solenoid valve
- 120/220 V three-wire connection
- 3/4 in FNP connection
- Calibrated manifold for equal water distribution
