MIFAB® MI-300 MI-300-500-120VAC Electronic Trap Seal Primer, 3/8 in Nominal, Copper Tube, 25 to 125 psi
- Manufacturer: MIFAB, Inc
- Brand Name: MIFAB®
- Part#: MIFMI-300-500-120VAC
- MPN: MI-300-500-120VAC
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

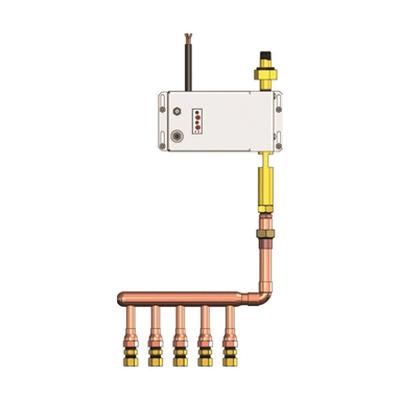

The MI-300 is manufactured with a stainless steel solenoid valve, air gap, copper manifold and electronic controller. The water discharge frequency can be adjusted to meet the building's needs. The MI-300 can be located anywhere in the water supply. A manifold is connected to the bottom of the MI-300 to serve up to 5 drains. The MI-300 is practical for infrequently used buildings such as convention centers and sports facilities. The MI-300 is manufactured in accordance with ANSI/ASME A112.1.2 air gap in plumbing systems Standard. UA 18x18 access door is suggested for access to the MI-300 when installed in the wall.
MIFAB® Electronic Trap Seal Primer, Model: MI-300, 3/8 in Nominal, Copper Tube Connection, 25 to 125 psi, 35 to 140 deg F
| Connection Type | : | Copper Tube |
| Model | : | MI-300 |
| Nominal Size | : | 3/8 in |
| Pressure Rating | : | 25 to 125 psi |
| Temperature Rating | : | 35 to 140 deg F |
Instruction/Installation Manual
