Zurn® Z1170-700-4NH Grease Interceptor, 4 in Pipe, 70 lb Capacity, 35 gpm, 19-1/2 in OAH, 24-1/4 in OAW, Steel, White
- Manufacturer: Zurn Elkay Water Solutions
- Brand Name: Zurn®
- Part#: ZRNZ1170-700-4NH
- MPN: Z1170-700-4NH
- UPC: 670240164062
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

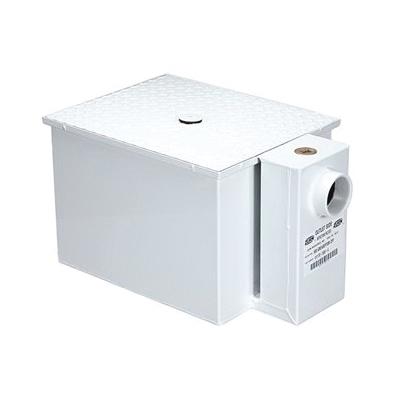

The Z1170 grease interceptor is an acid resistant coated interior and exterior fabricated steel grease interceptor, PDI Rated, with internal air relief by-pass. This interceptor also comes standard with bronze cleanout plug, removable pressure equalizing/flow diffusing inlet baffle, fixed bottom outlet baffle and visible double wall trap seal. Gasketed non-skid secured cover complete with tie down assembly and Z1108 flow control fitting. Regularly furnished with high inlet and outlet connection.
Zurn® Grease Interceptor, 4 in Pipe, 70 lb Capacity, 35 gpm Flow Rate, 19-1/2 in Overall Height, 24-1/4 in Overall Width, Steel, Finish: Duco-Coated, White
| Capacity | : | 70 lb |
| Color | : | White |
| Finish | : | Duco-Coated |
| Flow Rate | : | 35 gpm |
| Material | : | Steel |
| Overall Height | : | 19-1/2 in |
| Overall Width | : | 24-1/4 in |
| Pipe Size | : | 4 in |
- Above or below grade applications
Instruction/Installation Manual
