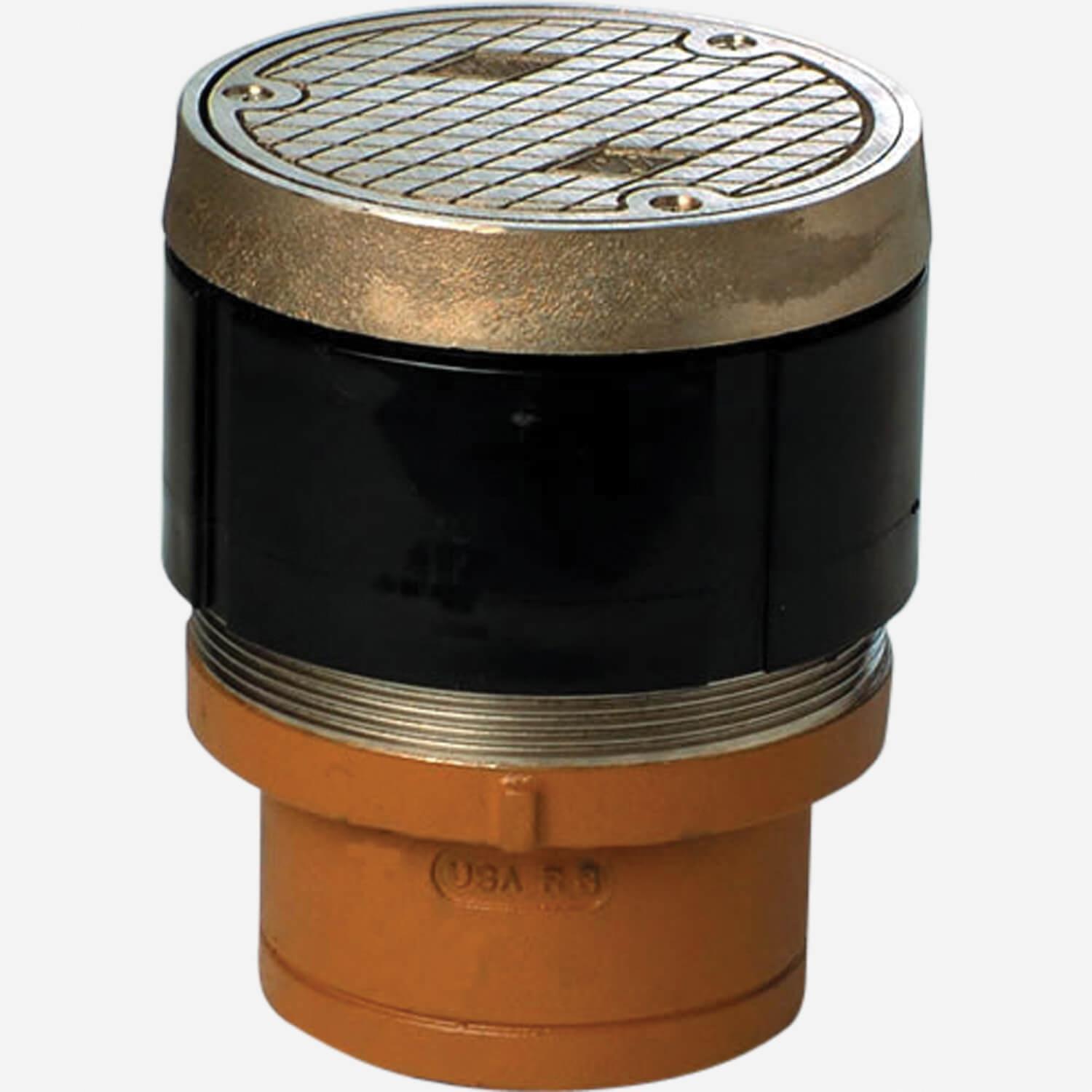

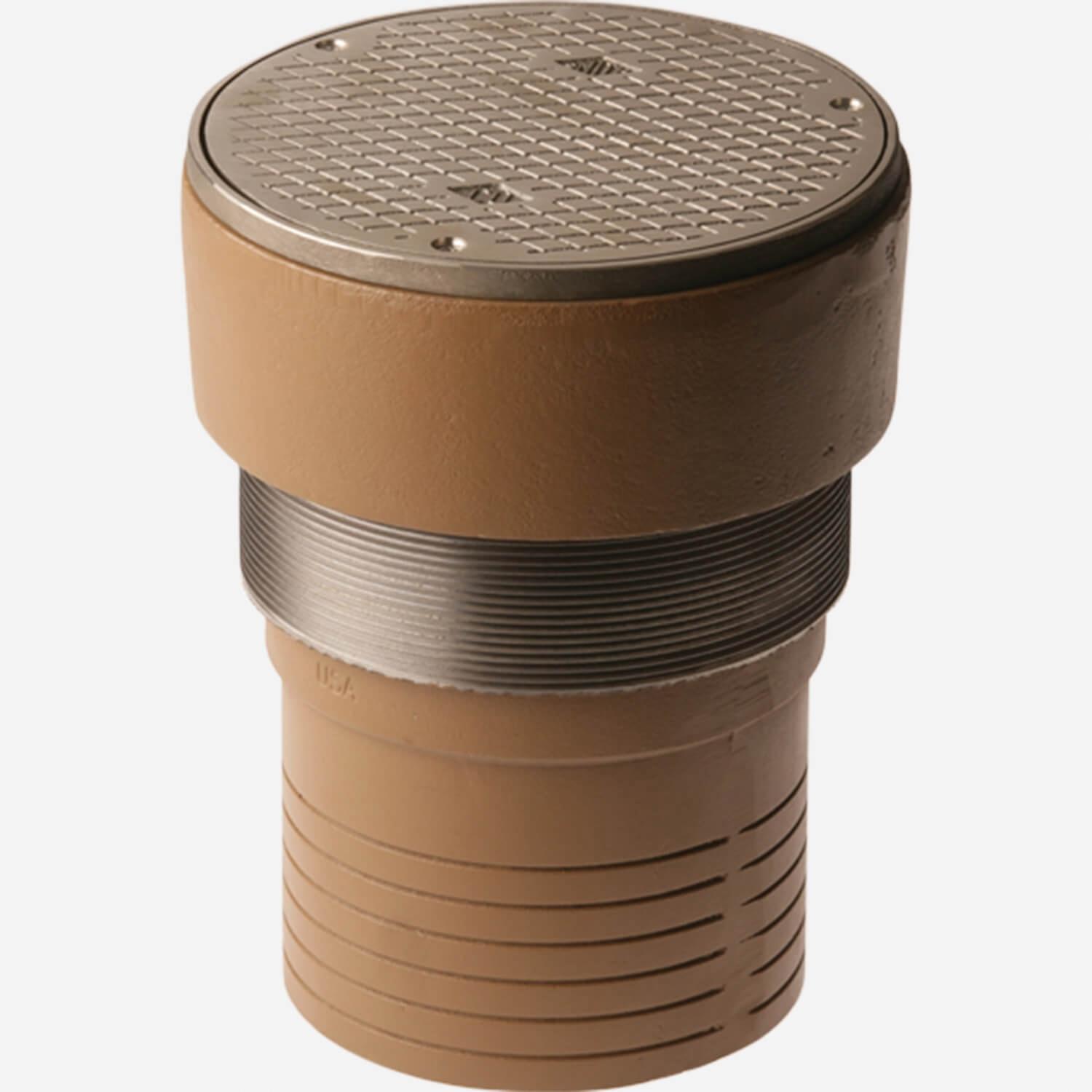

SMITH® 4020S03-NS Finished Floor Cleanout With Nickel Bronze Top, Round, Fits Pipe Size: 75 mm

This labor saving cleanout uses our Twis-to-Floor® adjustment technology to level the top with adjacent surfaces after the floor is poured and floor coverings are installed. It is constructed of Duco coated cast iron with a secured 5-3/4” (145) diam. nickel bronze top for finished floors bearing foot and medium load wheeled traffic.

SMITH® Finished Floor Cleanout With Nickel Bronze Top, Round Shape, Fits Pipe Size: 75 mm, 5-3/4 in Outside Diameter, Cast Iron/Stainless Steel

• All strainer heads and cleanout tops shipped individually are shrink wrapped in plastic before leaving the factory
• The cover protects the drain/cleanout top during shipping, warehousing and on the job site
• Each protective cover is clearly marked with the product number and the Smith logo
• The cover protects the drain/cleanout top during the pour preserving the finish
• Thicker finished floor cover reinforced with support ribs for strength and durability
• Smooth outside surface of the top assembly and thread protector Styrofoam ring maximize adjustment during and after the finished floor concrete pour
• Top assembly offers easy attachment to ferrule
• Easy to install clamping device on ferrule
• Cast iron clamping device on ferrule providing maximum clamping force to the membrane
