MIFAB® MC-41-R Single Carrier With Concealed Arms, Round Uprights, 36 in H, 14 to 19 in L Arm, Iron/Steel
- Manufacturer: MIFAB, Inc
- Brand Name: MIFAB®
- Part#: MIFMC-41-R
- MPN: MC-41-R
- UPC: 779897661235
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

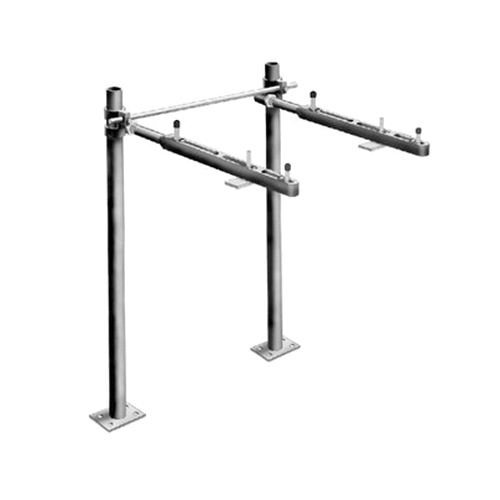

MIFAB® MC-41-R Series floor mounted concealed arm lavatory carrier with lacquered, adjustable, ductile iron concealed support arms. Complete with lacquered cast iron invertible and adjustable arm supporting brackets, alignment rod, two lacquered 2” diameter x 1/8” thick structural steel uprights with 3” x 4 ½” welded steel feet and fixture leveling and locking hardware.
MIFAB® Single Carrier, 36 in Height, 14 to 19 in Arm Length, Floor Mounting, Iron/Steel
| Arm Length | : | 14 to 19 in |
| Height | : | 36 in |
| Material | : | Iron/Steel |
| Mounting Type | : | Floor |
- No need to ask which lavatory is being used.
- Only one set of universal arms to fit all but long ADA lavs.
- Tapping in Header bracket is offset from the upright so that the nipple can thread into the open space.
- Header bracket is reversible and can be offset for second adjustment.
- Arm can be adjusted ino the nipple.
- Other manufacturers require different arms for different sink sizes.
- Hardware always assembled onto arms with bag around each arm to prevent loose hardware.
