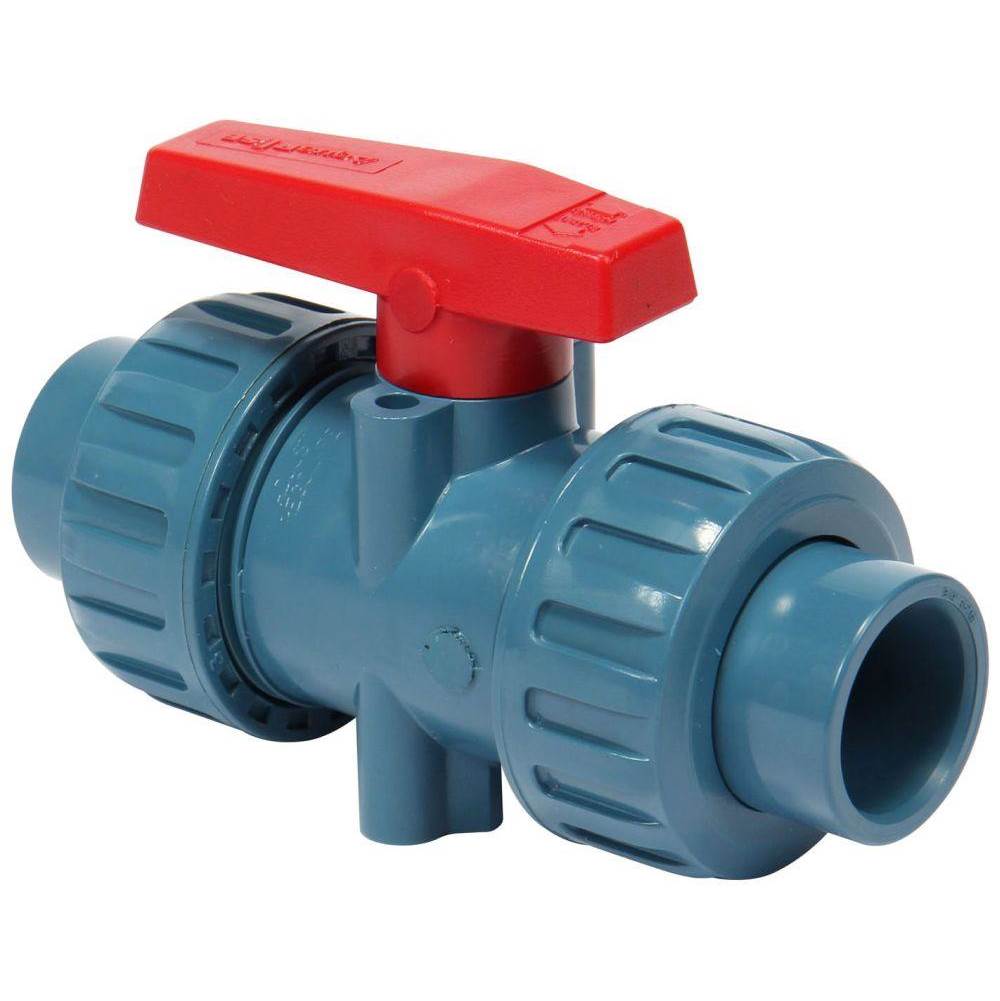

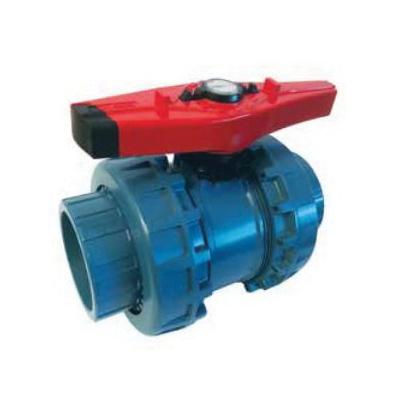

AquaRISE® 359001 True Union Ball Valve, 3/4 in, Socket, CPVC, 232 psi
- Manufacturer: Aliaxis Group SA
- Brand Name: AquaRISE®
- Part#: AQR359001
- MPN: 359001
- UPC: 622454299108
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
AquaRISE®, a hot and cold potable water distribution system for commercial, industrial and high buildings. Based on over 15 year experience designing and manufacturing industry leading CPVC systems, AquaRise® offers numerous benefits over metal with a system that is fully approved for noncombustible applications. AquaRise® also comes with technical support and jobsite trouble-shooting all from one reliable supplier.
AquaRISE® True Union Ball Valve, 3/4 in Nominal, Socket Connection, 232 psi, Water Media, Multi-Function Handle Operator, Material Standard: ASTM F442, CPVC Body, PTFE Seat, EPDM Seal, Teal Blue, 4.409 in L x 1.799 in H
| Body Material | : | CPVC |
| Color | : | Teal Blue |
| Connection Type | : | Socket |
| Dimensions | : | 4.409 in L x 1.799 in H |
| Material Standard | : | ASTM F442 |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Operator Type | : | Multi-Function Handle |
| Pressure Rating | : | 232 psi |
| Seal Material | : | EPDM |
| Seat Material | : | PTFE |
- AquaRise® SDR 21 for cold water use provides a long term pressure rating of 200 psi at 73 deg F (23 deg C)
- Thanks to its advanced materials and rugged design, AquaRise® SDR 11 for hot water provides long term pressure ratings of 400 psi at 73 deg F (23 deg C) and 150 psi at 160 deg F (71 deg C)
- Unlike metal piping which may pit, scale and degrade over time, AquaRISE®'s rugged thicker walls and excellent corrosion resistance ensure years of consistent flow and maintenance-free performance, even in demanding hot water recirculation applications
- Designed to be safely used in hot and cold water distribution systems
- AquaRise® achieved a flame spread rating of not more than 25 and a smoke development classification of not more than 50
- IPEX® supplies high quality CPVC cement, primer and applicators for enabling tough, permanent welded pipe fitting connections
