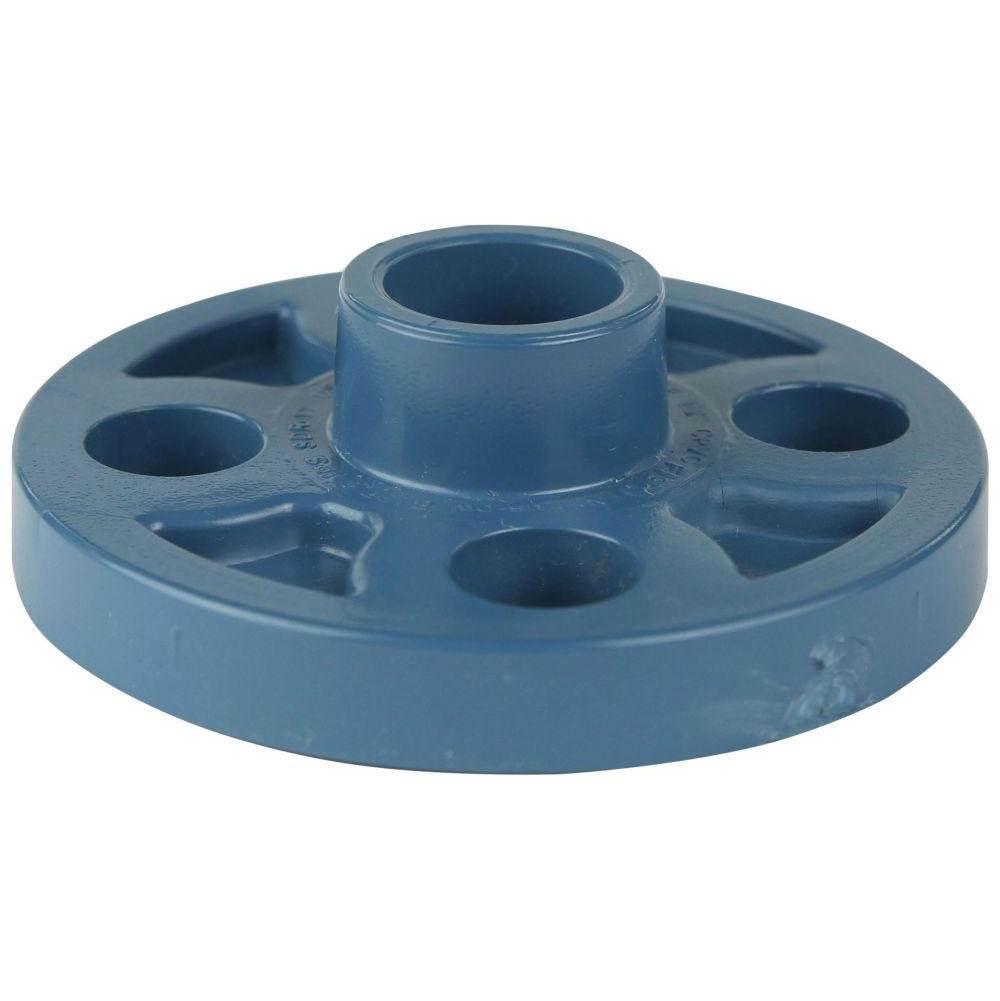

AquaRISE® 359228 Solid-Style Flange, 1/2 in Socket x 1/2 in Socket, CPVC, Teal Blue, 4-Bolt Hole
- Manufacturer: IPEX®
- Brand Name: AquaRISE®
- Part#: AQR1520-12
- MPN: 359228
- UPC: 622454308893
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
AquaRISE®, a hot and cold potable water distribution system for commercial, industrial and high buildings. Based on over 15 years experience designing and manufacturing industry leading CPVC systems, AquaRISE® offers numerous benefits over metal with a system that is fully-approved for noncombustible applications. AquaRISE® also comes with technical support and jobsite trouble-shooting all from one reliable supplier.
AquaRISE® Solid-Style Flange, Flange Fitting, 1/2 in Connection Size 1, Connection Type 1: Socket, 1/2 in Connection Size 2, Connection Type 2: Socket, Socket|Socket Connection, CPVC, Material Construction: CPVC, Teal Blue, 4 Bolt Holes, 1/2 x 1-3/4 in Bolt Hole Diameter, 150 psi, 0.9 in L, 73 deg F
| Bolt Hole Diameter | : | 1/2 x 1-3/4 in |
| Color | : | Teal Blue |
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Socket |
| Connection Type 2 | : | Socket |
| Connection Type | : | Socket|Socket |
| Dimensions | : | 0.9 in L |
| Fitting Type | : | Flange |
| Material Construction | : | CPVC |
| Material | : | CPVC |
| Number of Bolt Holes | : | 4 |
| Pressure Rating | : | 150 psi |
| Temperature Rating | : | 73 deg F |
- AquaRISE® SDR 21 for cold water use provides a long-term pressure rating of 200 psi at 73 deg F (23 deg C)
- Thanks to its advanced materials and rugged design, AquaRISE® SDR 11 for hot water provides long-term pressure ratings of 400 psi at 73 deg F (23 deg C) and 150 psi at 160 deg F (71 deg C)
- Unlike metal piping which may pit, scale and degrade over time, AquaRISE®'s rugged thicker walls and excellent corrosion-resistance ensure years of consistent flow and maintenance-free performance, even in demanding hot water recirculation applications
- Designed to be safely used in hot and cold water distribution systems
- AquaRISE® achieved a flame spread rating of not more than 25 and a smoke development classification of not more than 50
- IPEX® supplies high-quality CPVC cement, primer and applicators for enabling tough, permanent welded pipe fitting connections
