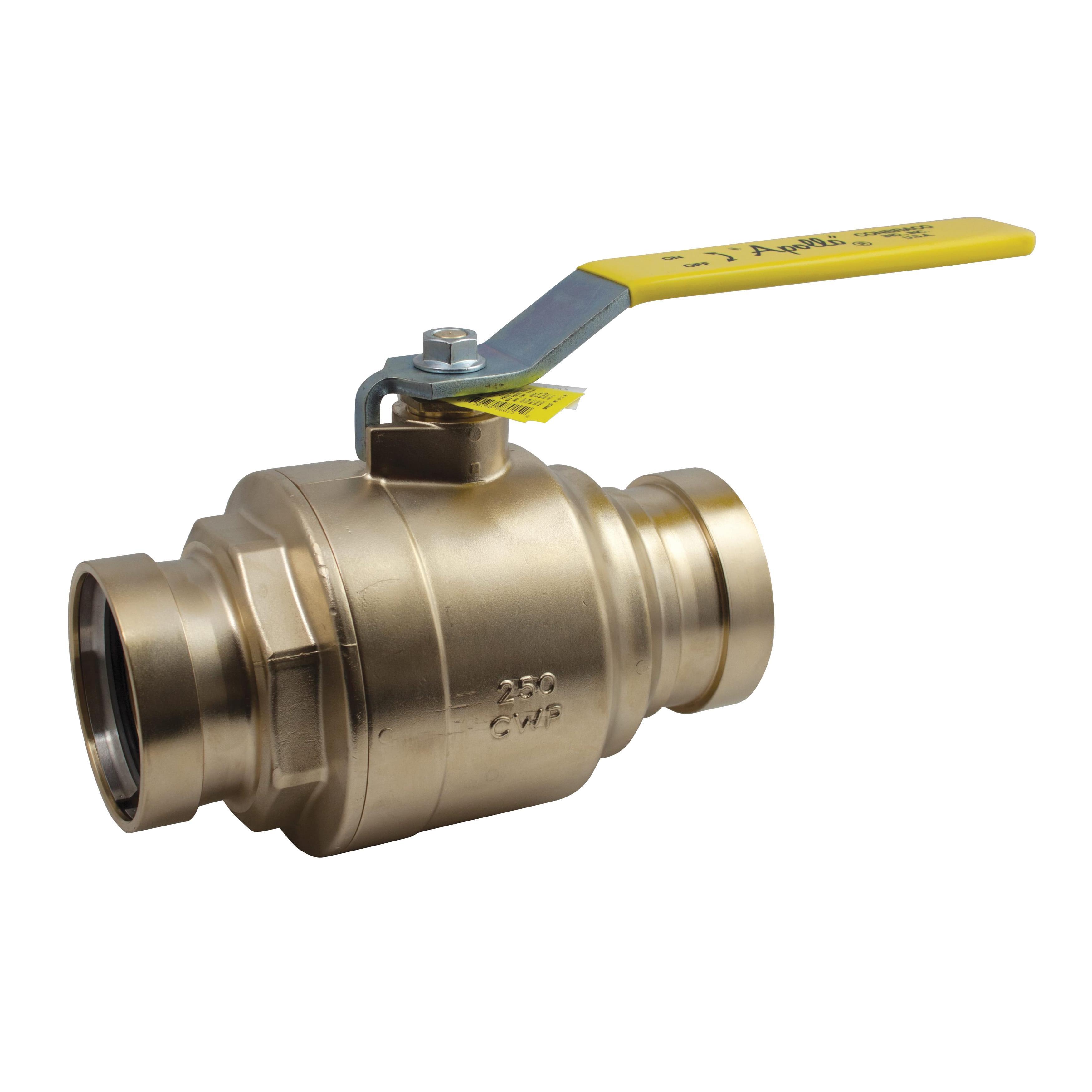

Apollo® Valves ApolloPress® 77V Series 77V-10A-01 Ball Valve, 4 in, Press, Brass, 300 psi
- Manufacturer: Aalberts Integrated Piping Systems
- Brand Name: Apollo® Valves
- Part#: APL77V14A01
- MPN: 77V-10A-01
- UPC: 670750980169
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The ApolloPress® 77V Series two piece press ball valve is ideal for installation in heating, cooling and non-potable plumbing applications. Features leak before Press® technology and 300 psig maximum working pressure. Proudly made in the USA.
Apollo® Valves ApolloPress® Ball Valve, Series: 77V Series, 4 in Nominal, Press Connection, Full Port, 300 psi Pressure, Lever Handle Operator, ASTM B16, ASTM B283-C37700, ASTM B88 Material Standard, Brass Body, RPTFE Seat, Brass Stem, EPDM Seal, Brass/Steel Trim, RPTFE Packing Material, Polyvinyl/Steel Handle, Brass Ball, 0 to 250 deg F, Domestic
| Actuator Type | : | Standard Lever Handle |
| Ball Material | : | Brass |
| Body Material | : | Brass |
| Connection Type | : | Press |
| Domestic/Import | : | Domestic |
| Handle Material | : | Polyvinyl/Steel |
| Material Standard | : | ASTM B16, ASTM B283-C37700, ASTM B88 |
| Nominal Size | : | 4 in |
| Operator Type | : | Lever Handle |
| Packing Material | : | RPTFE |
| Port Type | : | Full |
| Pressure Rating | : | 300 psi |
| Seal Material | : | EPDM |
| Seat Material | : | RPTFE |
| Series | : | 77V Series |
| Stem Material | : | Brass |
| Temperature Rating | : | 0 to 250 deg F |
| Trim Material | : | Brass/Steel |
- Two piece, heavy pattern forged design
- Superior RPTFE seats and packing
- Adjustable stem packing gland
- Leak before Press® technology
- Blowout-proof stem
- Corrosion-resistant construction
- Silicone-free assembly
- 100% factory tested
Specification Sheet
